UT-LVDS-EDP V.1 EDP LCD Controller Board

Parameters of UT-LVDS-EDP V.1 EDP LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
6	UT-LVDS-EDP V.1	LVDS to EDP	EDP 30pin	NO	3.3 / 5V

General Specifications of UT-LVDS-EDP V.1 EDP LCD Controller Board

Model: UT-LVDS-EDP-V.1 EDP 30pin

LVDS to EDP

1 LVDS to EDP

2 Equipped with backlight circuit

3 The structure is compact

(The dual 8-bit(24 bit) resolution of the motherboard LVDS output needs to be set according to the driver screen resolution)

Application scope: industrial control/instrumentation/human-machine interface/portable/handheld devices/car navigation systems/smart homes/medical displays

A screen that can be driven	EDP30pin TFT LCD Screen
	11.6 inch; 13.3 inch; 14 inch; 15.6 inch	Support resolution:1366768; 19201080

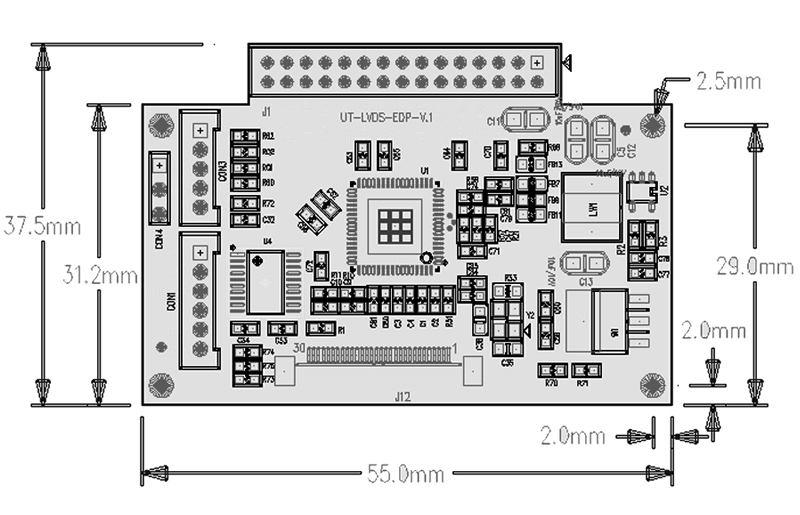

Structural Size of UT-LVDS-EDP V.1 EDP LCD Controller Board

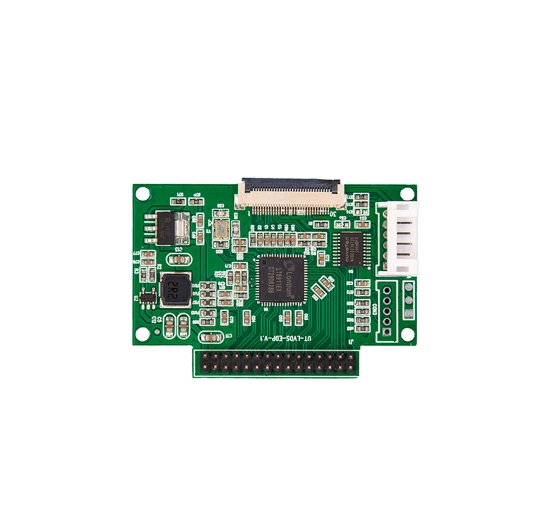

UT-LVDS-EDP V.1 EDP LCD Controller Board
