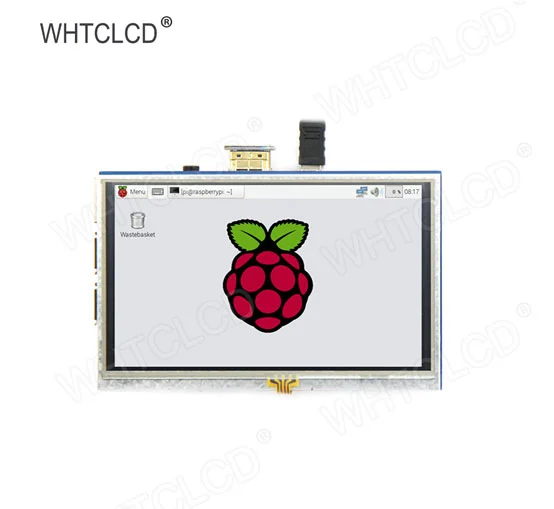

MPI5008 5.0 Inch Raspberry Pi LCD

Name: MPI5008 5.0 Inch Raspberry Pi LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

5inch standard display, 800 × 480 resolution. With resistive touch screen, support touch control. support backlight control alone, the backlight can be turned off to save power. supports standard HDMI interface input, compatible with and can be directly inserted with Raspberry Pi (3rd, 2nd, and 1st generation). can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display (resolution need to be able to force output for 800 x480). used as a raspberry pie display that supports Raspbian, Ubuntu, kali, Kodi(no touch), win10 IOT(no touch). work as a PC monitor, support XP,win7, win8, win10 system(do not support touch) CE, RoHS certification.

Products

Parameters of 5.0 Inch Raspberry Pi LCD

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
5	800*480	MPI5008	IPS	HDMI	121.1177.9315	108*64.8	Earphone	RTP	0.34A*5V	-20~60°C

SKU	MPI5008
Screen Size	5 inch
LCD Type	TN TFT
Module Interface	HDMI
Resolution	800*480 (Pixel)
Active Area	95.04*53.86 (mm)
Touch Screen Controller	4-wire Resistive touch
LCD Driver IC	-
Backlight	LED
power consumption	0.34A*5V
Working temperature（℃）	-20~60
Module PCB Size	121.11*77.93(mm)
Package Size	15413551 (mm)
Rough Weight(Package containing) (g)	206 (g)

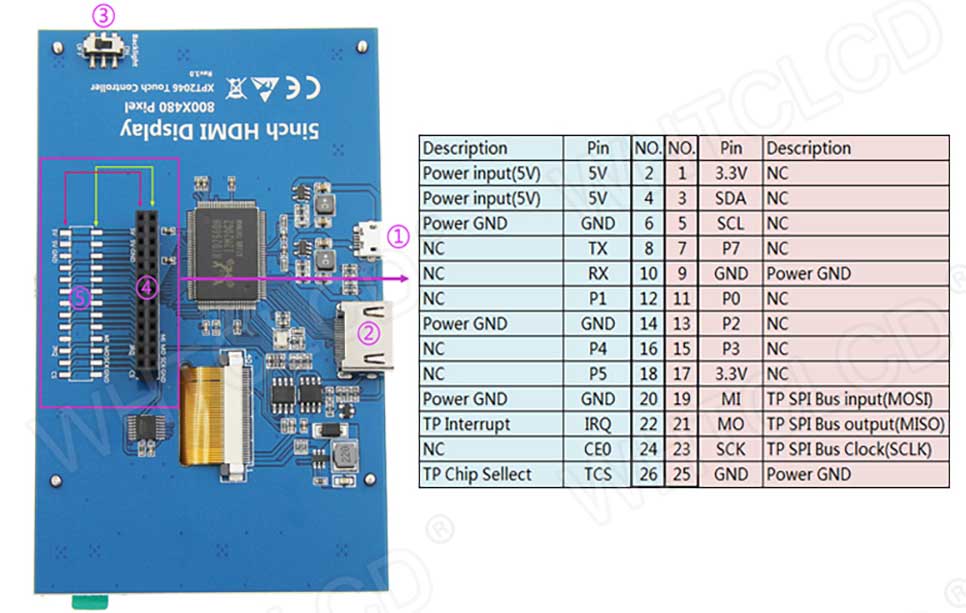

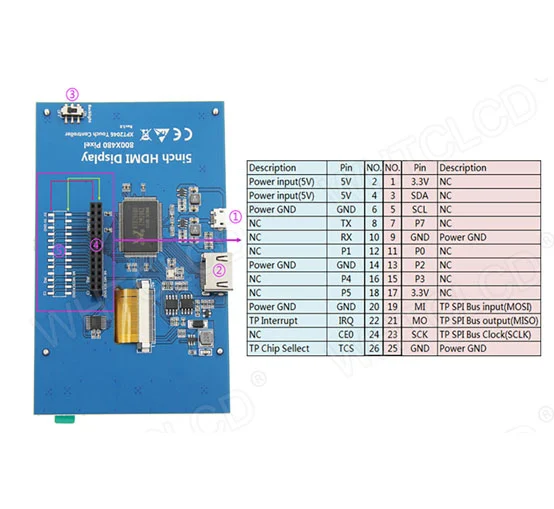

Hardware Description of 5.0 Inch Raspberry Pi LCD

stm32 nucleo kit

Hardware capabilities

① USB interface: Get 5V Power from USB, If ④-13*2 Pin Socket has been connected, that this USB interface can be No Connect
② HDMI interface: For HDMI transmission
③ Backlight Power switch: Controls the backlight turned on and off to save power
④ 13*2 Pin Socket: Get 5V Power from raspberry Pi to LCD, at the same time transfer touch signal back to raspberry Pi
⑤ Extended interface：extended The ④-13*2 Pin Socket signal Pin-to-Pin

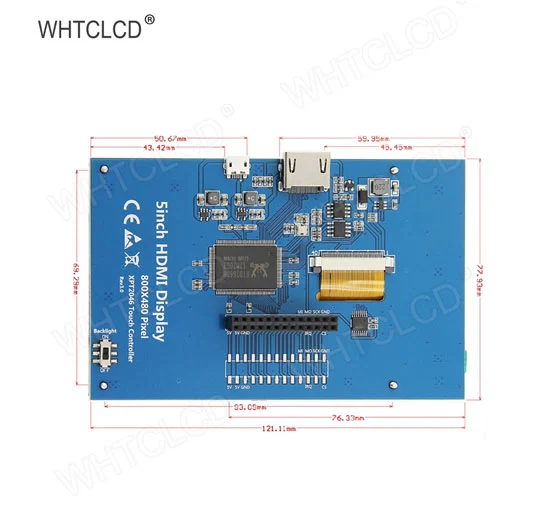

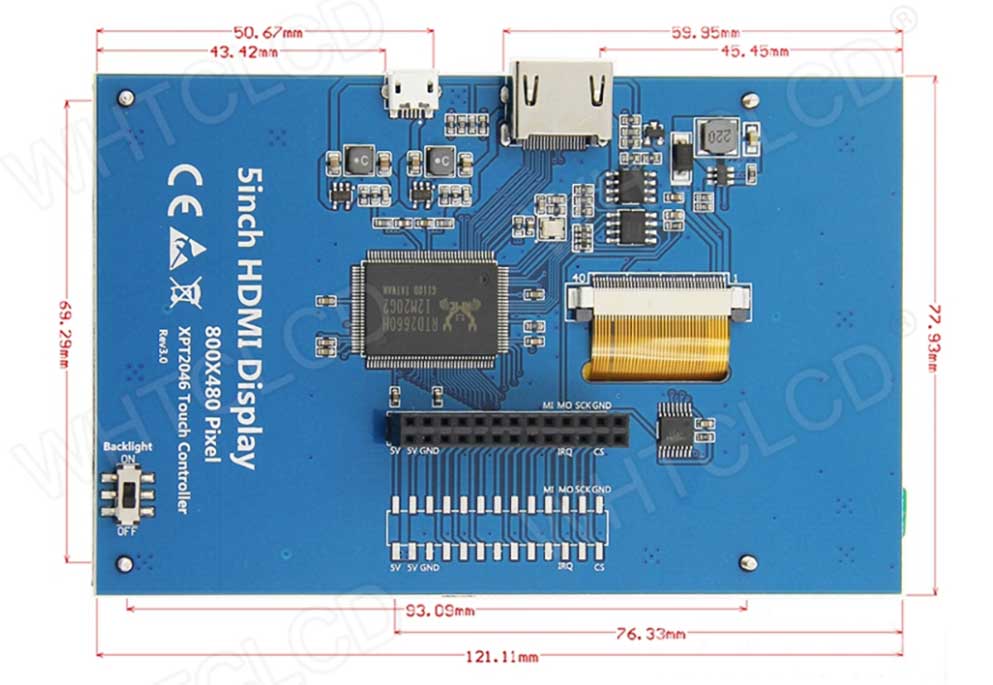

Product Size of 5.0 Inch Raspberry Pi LCD

stm32 nucleo l152re

Want to Get More Details About LCD Products?

We're waiting for your contact! Original LCD Display manufacturer, covering an area of over 2,000 square meters, with more than 10 years of industry experience. Professional R&D Team and sales team. We possess a variety of software copyrights and utility patents certificates, which can provide you with more customized solutions and SDK solutions.

The message you fill in is just to tell our sales engineers your requirements and the support you need, so that they can help you better, we will not disclose any of your information, please donot worry!



Tel:

0755-25695467


E-mail:

sales@cntftlcd.com


Address:

2F, Building C, Banwei Garden, No. 17, Yongxiang East Road, Bantian Street, Shenzhen, Guangdong, China

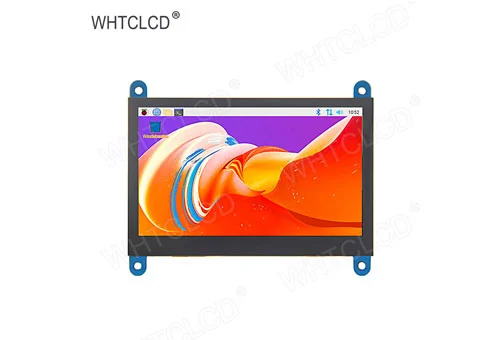

Other Raspberry Pi LCD Display Products
