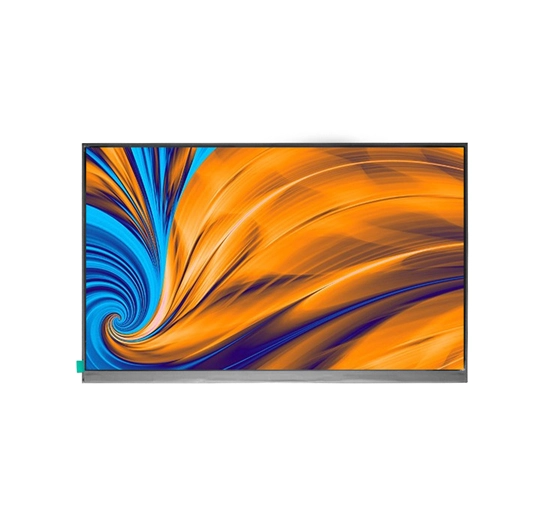

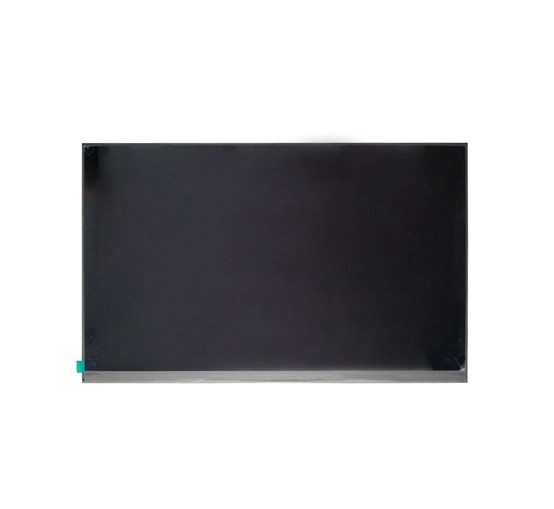

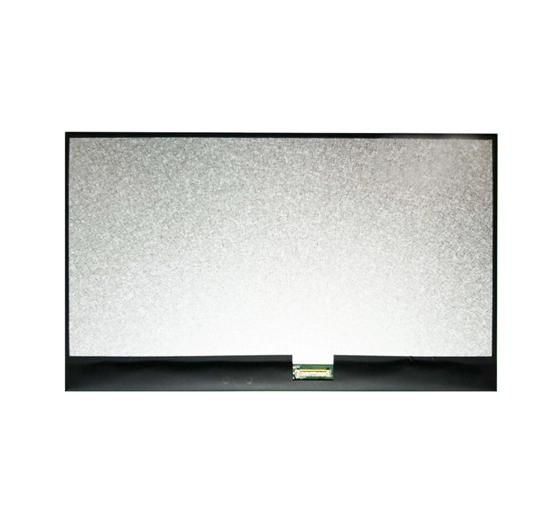

W116C30H1EI-J02B0 11.6 Inch IPS TFT LCD

Name: W116C30H1EI-J02B0 11.6 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

11.6 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 256.32*144.18 and the native resolution is 1920*1080 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 11.6 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
11.6	1920*1080	W116C30H1EI-J02B0	263.4157.222.55	256.32*144.18	IPS	e-DP	300	-20~70°C

General Specifications of 11.6 Inch IPS TFT LCD

W116C30H1EI-J02B0

Feature	Specifications	Unit
Size	11.6	inch
Technology Type	a-si TFT
Resolution	1920(RGB)x080
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	263.4(W)×157.2(H)×2.55(D) mm	mm
Active Area(mm)	256.32(W)×144.18(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	220-400	nits
Weight (g)	`	g
Interface	e-DP 30pin Connector
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

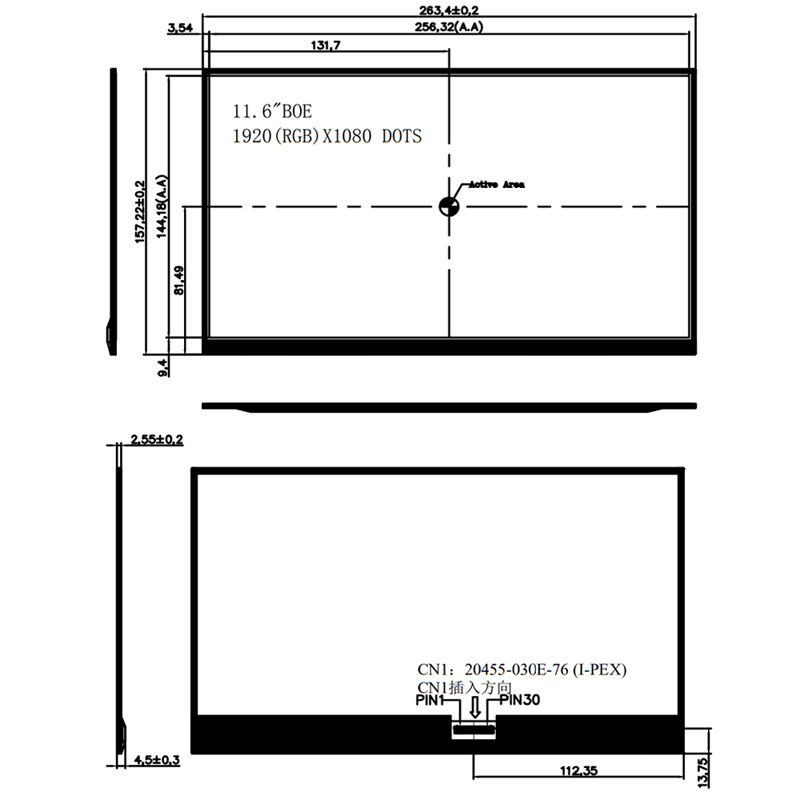

Structural Size of 11.6 Inch IPS TFT LCD

W116C30H1EI-J02B0

11.6 Inch IPS TFT LCD
