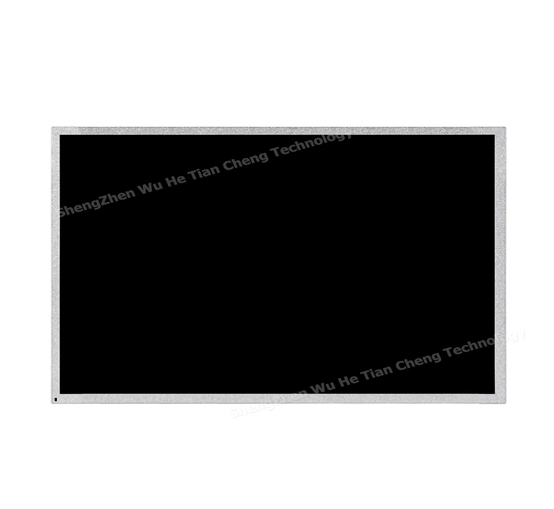

G185HAN01.0 18.5 AUO LCD Panel

Name: G185HAN01.0 18.5 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 18.5 inch tft lcd ips panel G185HAN01.0 with 1920(RGB)x1080 Full HD resolution, brightness 350 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it;s storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Medical imaging.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G185HAN01.0 18.5 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
18.5	1920*1080	G185HAN01.0	430.4254.612.5	409.8*230.4	IPS	LVDS	400	-20~70°C

General Specifications of G185HAN01.0 18.5 AUO LCD Panel

Manufacturer	AUO
Model Name	G185HAN01.0
Screen Size	18.5 inch
Pixel Number	1920(RGB)×1080 , FHD
Active Area(mm)	409.8 × 230.4 (H×V)
Outline(mm）	430.4 × 254.6 × 12.5 (H×V×D)
Bezel Area(mm)	410.96 × 232.0 (H×V)
Treatment	Anti-glare , Hardness 3H
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	10/10 (Typ.)(Tr+Td) ms
Work Mode	AHVA , Normally black, Transmissive
Color Depth	16.7M, 99% sRGB
Backlight	WLED, 50K hours, with LED Driver
Net Weight	1.20Kgs (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch 8bit) , 30 pins
Voltage Supply	+5.0 V (Typ./Max.)
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	AUO Original package;
	8 pcs/ carton;
	weight : 15.0Kgs;
	size : 520(L) x 280(W) x 352(H)mm
