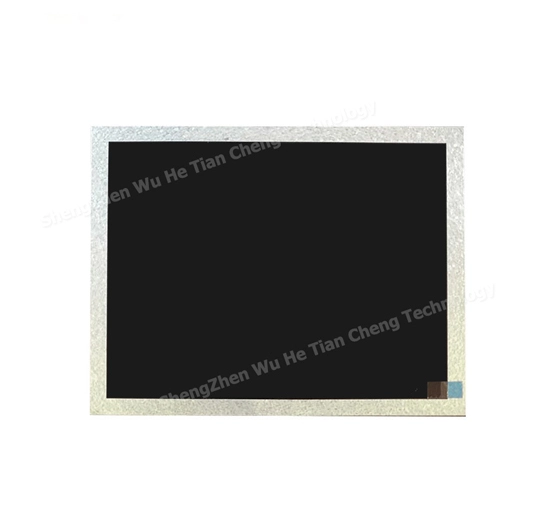

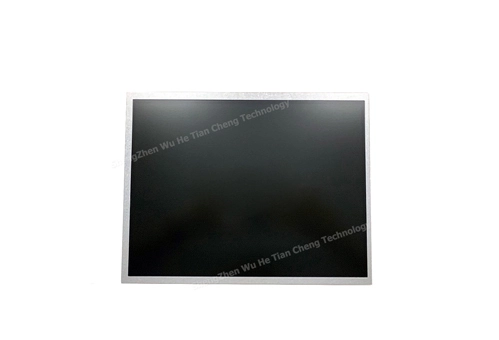

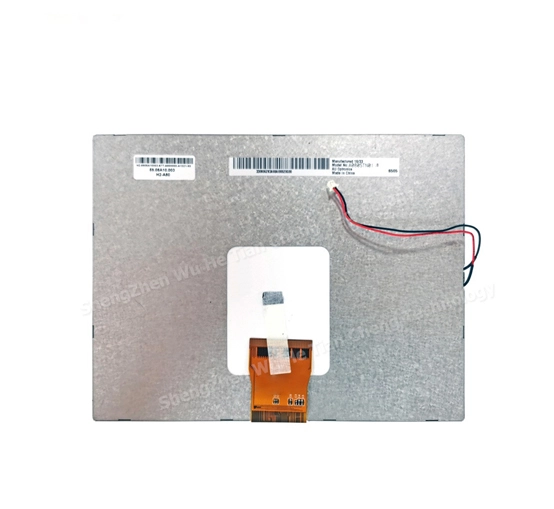

A080STN01.0 8.0 AUO LCD Panel

AUO 8 inch tft lcd panel A080STN01.0 with 800(RGB)x600 SVGA resolution, brightness 250 cd/m². This lcd display's working temperature is -10 ~ +60 (°C) and it's storage temperature is  -30 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.


Products

Parameters of A080STN01.0 8.0 AUO LCD Panel

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceLuminance(cd/m2)OP(℃)
8800*600A080STN01.0183*141*4.9162*121.5TNRGB250-30~85°C



General Specifications of A080STN01.0 8.0 AUO LCD Panel

A080STN01.0

ManufacturerAUO
Model NameA080STN01.0
Screen Size8 inch
Pixel Number800(RGB)×600 , SVGA
Active Area(mm)162 x 121.5 (H×V)
Outline(mm）183 x 141 x 4.9 (H×V×D)
Pixel Pitch(mm)0.2025 x 0.2025 (H×V)
TreatmentAnti-Glare, 3H
Luminance250 cd/m² (Typ.)
Contrast Ratio500 : 1 (Typ.) (TM)
Viewing Angle70/70/60/65 (CR≥10) Left / Right/UP /Down
Response time12/18 (Typ.)(Tr/Td) ms
Display ModeTN , Normally white , Transmissive
Color Depth262K/16.7M , 50% NTSC
BacklightWLED , 10K hours , with LED Driver
Net Weight235g
Touchscreenwithout
Signal Type/interface TypeTTL (1 ch, 8-bit) + SPI , FPC , 60 pins
Voltage Supply+3.3 V
Max. RatingsStorage Temp.: -30 ~ +70 (°C)
Operating Temp.: -10 ~ +60 (°C)
PackageAUO Original package;
30 pcs/ctn;
weight : 7Kgs;
size : 520(L) x 340(W) x 250(H) mm
