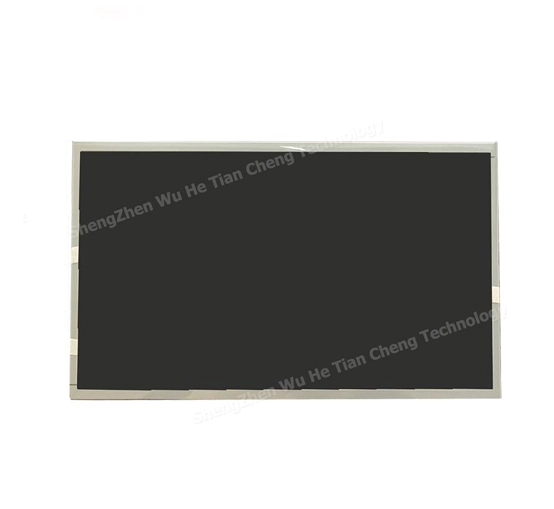

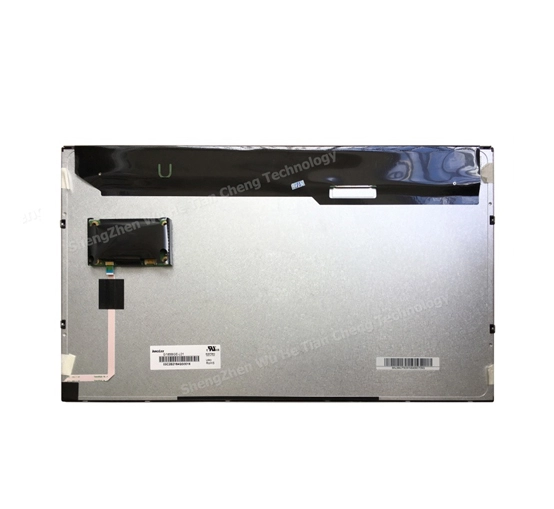

G185BGE-L01 18.5 Inch INNOLUX LCD Panel

Name: G185BGE-L01 18.5 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 18.5 inch IPS TFT LCD Panel G185BGE-L01 with 1366(RGB)x768 WXGA resolution, brightness 300 cd/m², LVDS 30pin. This lcd display's working temperature is 0 ~ +60 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G185BGE-L01 18.5 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
18.5	1366*768	G185BGE-L01	4430.37254.616.1	408.9*230.4	IPS	LVDS	300	-30~85°C

General Specifications of G185BGE-L01 18.5 Inch INNOLUX LCD Panel

Manufacturer	Innolux
Model Name	G185BGE-L01
Screen Size	18.5 Inch
Pixel Number	1366(RGB)×768 , WXGA
Active Area(mm)	408.9 × 230.4 (H×V)
Outline(mm）	4430.37 × 254.6 × 16.1 (H×V×D)
Pixel Pitch(mm)	0.3 ×0.3 (H×V)
Treatment	AG type, 3H hard coating, Haze 25
Luminance	300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/80/80 (CR≥10) Left / Right/UP /Down
Response time	1.5/3.5 (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white , Transmissive
Color Depth	16.7M , 72% NTSC
Backlight	WLED , 50K hours, with LED Driver
Net Weight	1.65Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 8-bit) , 30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C)
Max. Ratings	Operating Temp.: 0 ~ +60 (°C)
Package	Innolux Original package;
	8 pcs/box;
	weight : 21.0Kgs;
	size : 525(L) x 284(W) x 360(H)mm
