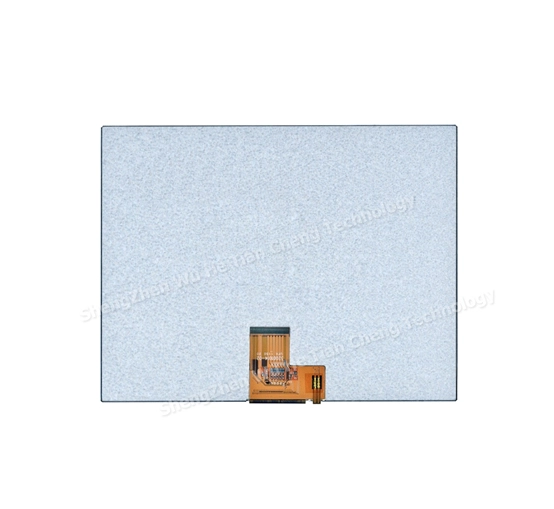

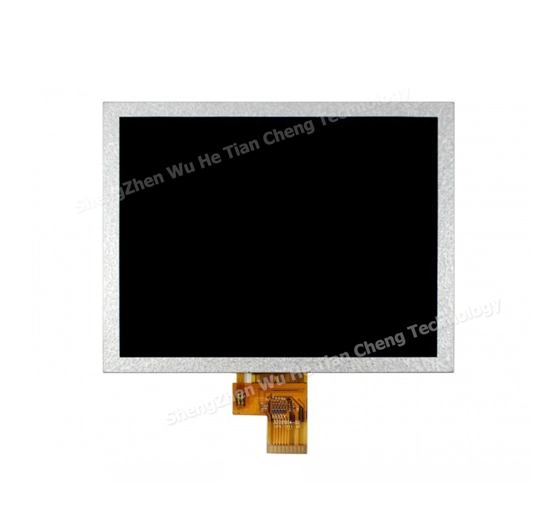

EJ080NA-04C 8.0 Inch INNOLUX LCD Panel

Innolux 8 inch tft lcd ips panel EJ080NA-04C with 1024(RGB)x768 WVGA resolution, brightness 250 cd/m². This lcd display is working temperature is -10 ~ +50 (°C) and it's storage temperature is  -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of EJ080NA-04C 8.0 Inch INNOLUX LCD Panel

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceLuminance(cd/m2)OP(℃)
81024*768EJ080NA-04C183*141*3.7162.048*121.536IPSLVDS250-10~50°C



General Specifications of EJ080NA-04C 8.0 Inch INNOLUX LCD Panel


EJ080NA-04C

ManufacturerINNOLUX
Model NameEJ080NA-04C
Screen Size8 inch
Pixel Number1024(RGB)×768 , XGA
Active Area(mm)162.048 x 121.536 (H×V)
Outline(mm）183 x 141 x 3.7 (H×V×D)
Pixel Pitch(mm)0.1905 x 0.1905 (H×V)
TreatmentAG type, 3H hard coating
Luminance250 cd/m² (Typ.)
Contrast Ratio700 : 1 (Typ.) (TM)
Viewing Angle75/75/75/75 Left / Right/UP /Down
Response time6/14 (Typ.)(Tr/Td) ms
Display ModeAAS , Normally black , Transmissive
Color Depth262K/16.7M , 50% NTSC
BacklightWLED , 50K hours , with LED Driver
Net Weight~
Touchscreenwithout
Signal Type/interface TypeLVDS (1 ch, 6/8-bit) , 40 pins
Voltage Supply+3.3 V
Max. RatingsStorage Temp.: -20 ~ +60 (°C)
Operating Temp.: -10~ +50 (°C)
PackageInnoluxOriginal package;
30 pcs/ctn
