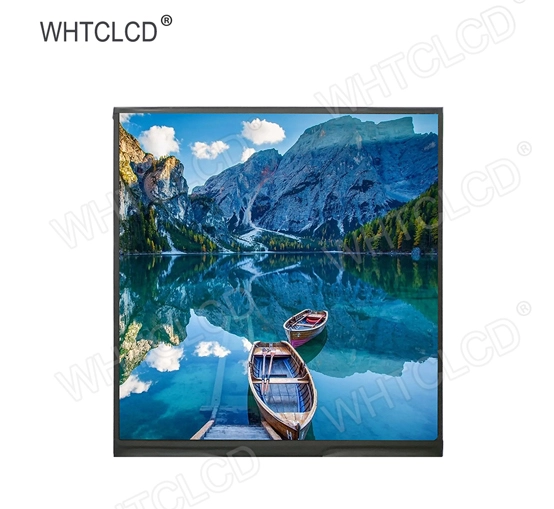

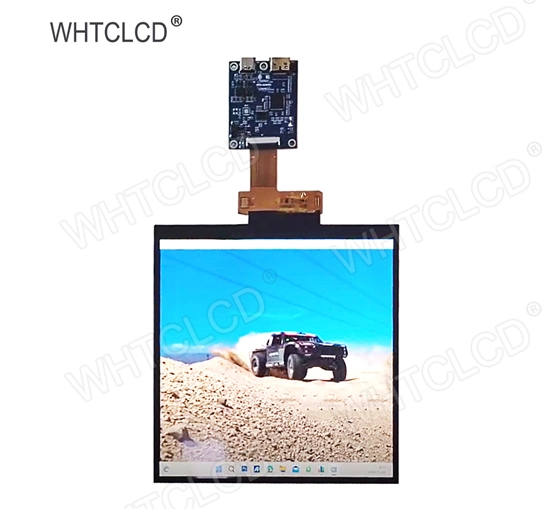

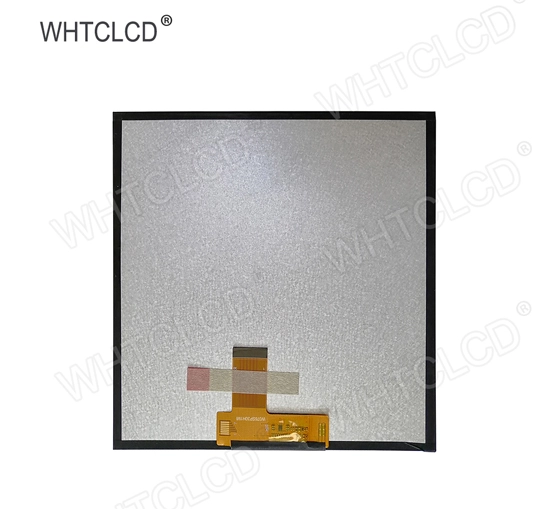

W076S30H1MI-H05B0 MI 7.6 Inch Square TFT LCD Display

Products

Parameters of 7.6 Inch Square TFT LCD Display

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
7.6	800*800	W076S30H1MI-H05B0 MI (Square)	142.56148.245.1	135.36*135.36	IPS	MIPI	1000	-20~70°C

Specifications of 7.6 Inch Square TFT LCD Display

W076S30H1MI-H05B0

Item	Specification	Unit
LCD size 液晶面板尺寸	7.6	inch
Display Mode显示模式	Normally Black
Resolution 分辨率	800(RGB)x800	Pixel
Pixel pitch 像素尺寸	36.5(H)×109.5(V)	μm
Pixel Arrangement像素排列	RGB Vertical Stripe
Viewing direction视角	Free

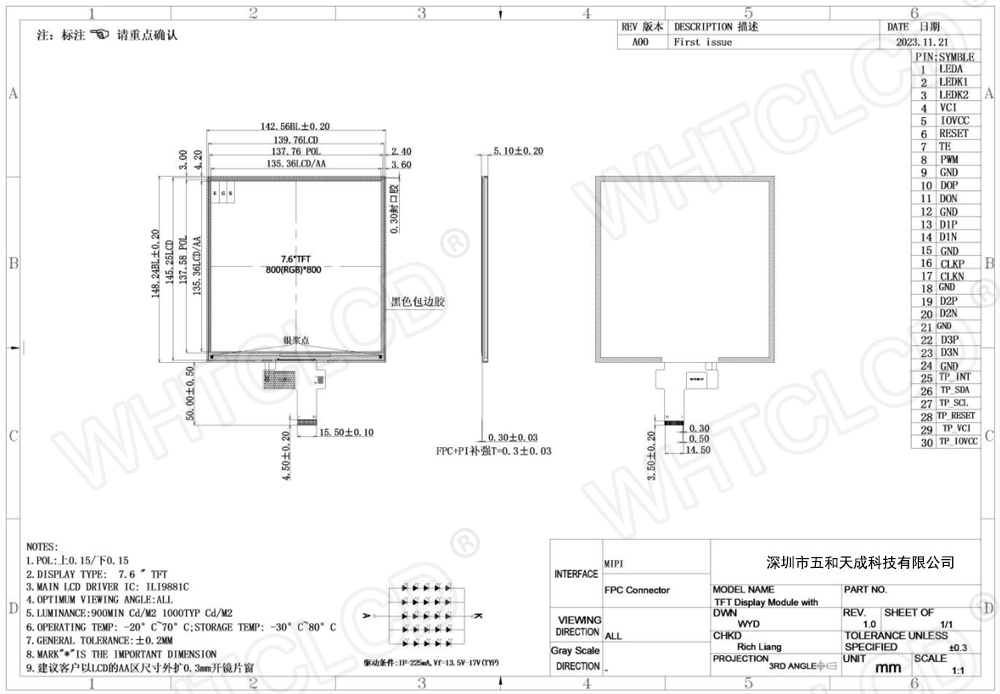

Module outline dimension	142.56 (H)148.24 (V)5.1(D)	mm
LCD AA液晶显示区域	135.36 (H)*135.36(V)	mm
TP VA触摸可视区域		mm
Colors 颜色深度	16.7M
Interface接口类型	MIPI

Descriptions of 7.6 Inch Square TFT LCD Display

W076S30H1MI-H05B0

Pin No.	Symbol	Description
1	LEDA	LED backlight anode
2	LEDK	LED backlight cathode.
3	LEDK	LED backlight cathode.
4	VCl	Power supply for the analog power
5	IOVCC	Power supply for the logic power and I/O circuit
6	RESET	Reset signal(low active)
7	TE	Tearing effect output
8	PWM	The PWM frequency output for LCD driver control.
9	GND	Power ground
10	MIPI_DPO	MIPI-DSI data lane 0 posivtve input pin.
11	MIPI_DN0	MIPI-DSI data lane 0 negtive input pin.
12	GND	Power ground
13	MIPI_DP1	MIPI-DSI data lane 1 posivtve input pin
14	MIPI_DN1	MIPl-DSI data lane 1 negtive input pin.
15	GND	Power ground
16	MIPI_CLKP	MIPl-DSI data lane posivtve input pin.
17	MIPI_CLKN	MIPl-DSI data lane negtive input pin.
18	GND	Power ground
19	MIPI DP2	MIPl-DSI data lane 2 posivtve input pin.
20	MIPI_DN2	MIPI-DSI data lane 2 negtive input pin.
21	GND	Power ground
22	MIPI_DP3	MIPl-DSI data lane 3 posivtve input pin.
23	MIPI_DN3	MIPI-DSI data lane 3 negtive input pin.
24	GND	Power ground
25	TP_INT	INT pin for CTP(NC)
26	TP_SDA	SDA pin for CTP(NC)
27	TP_SCL	SCL pin for CTP(NC)
28	TP_RESET	Reset pin for TP(NC)
29	TP_VCI	VCl pin for CTP(NC)
30	TP_IOVCC	IOVCC pin for CTP(NC)

square tft display
