MA R2001 2.0 Inch SPI Disaply LCD Module

2.0-inch color screen,support 16BIT RGB 65K color display,display rich colors
176x220 resolution, clear display
Using the SPI serial bus, it only takes a few IOs to illuminate the display
With SD card slot for convenient function expansion
Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms
Military-grade process standards, long-term stable work
Provide underlying driver technical support

Parameters of 2.0 Inch SPI Disaply LCD Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
2	176*220	MA R2001	TN	SPI	38.3062.486	31.68*39.60	NC	NC	5V/3.3V	-20~60°C

General Specifications of 2.0 Inch SPI Display LCD Module

Name	Parameter
Display Color	16BIT RGB 65K color
SKU	MAR2001
Screen Size	2.0(inch)
Type	TFT
Driver IC	ILI9225
Resolution	176*220 (Pixel)
Module Interface	4-wire SPI interface
Backlight	3 White Led
Active Area	31.68x39.60 (mm)
Module PCB Size	38.30x62.48 (mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	5V/3.3V
Power Consumption	TBD
Rough Weight(Package containing)	20 (g)

Hardware Description of 2.0 Inch SPI Display LCD Module

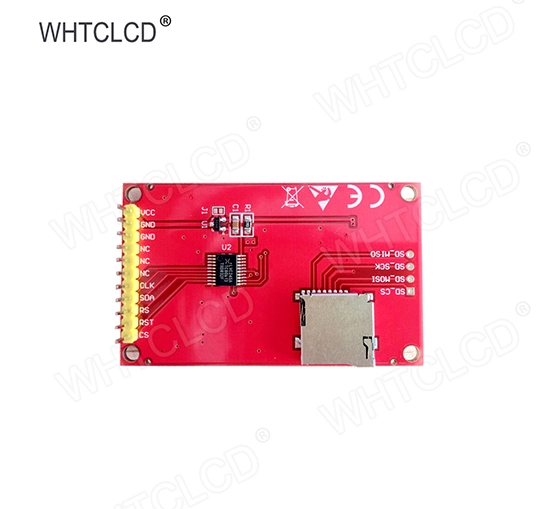

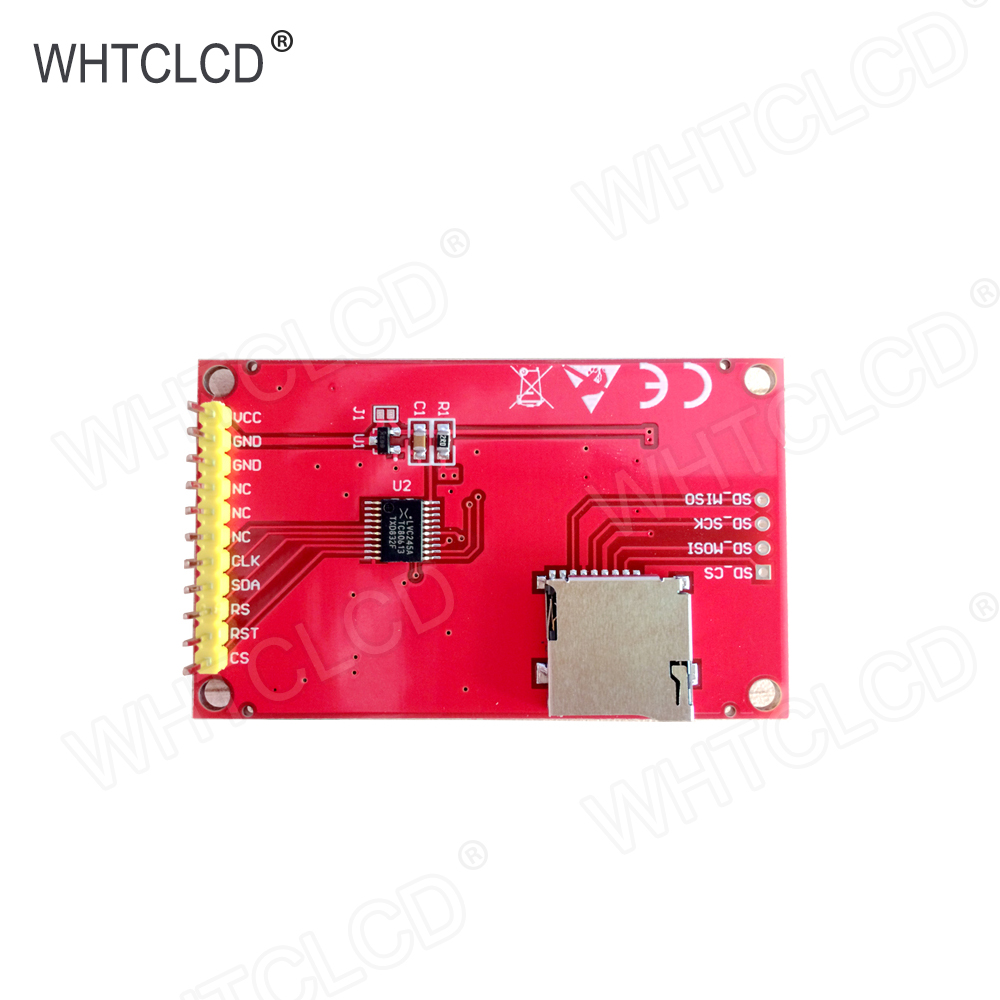

2 inch lcd module

Number	Pin Label	Description
1	VCC	LCD Power positive (3.3V~5V)
2	GND	LCD Power ground
3	GND	LCD Power ground
4	NC	Not defined, reserved
5	NC	Not defined, reserved
6	NC	Not defined, reserved
7	CLK	LCD SPI bus clock signal
8	SDA	LCD SPI bus write data signal
9	RS	LCD register / data selection signal, high level: register, low level: data
10	RST	LCD reset signal, low level reset
11	CS	LCD chip select signal, low level enable

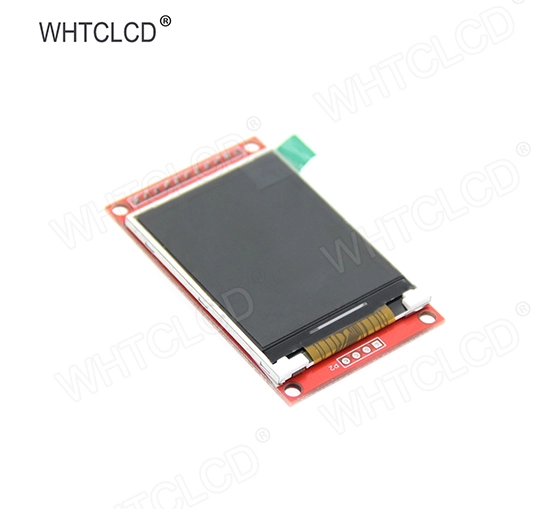

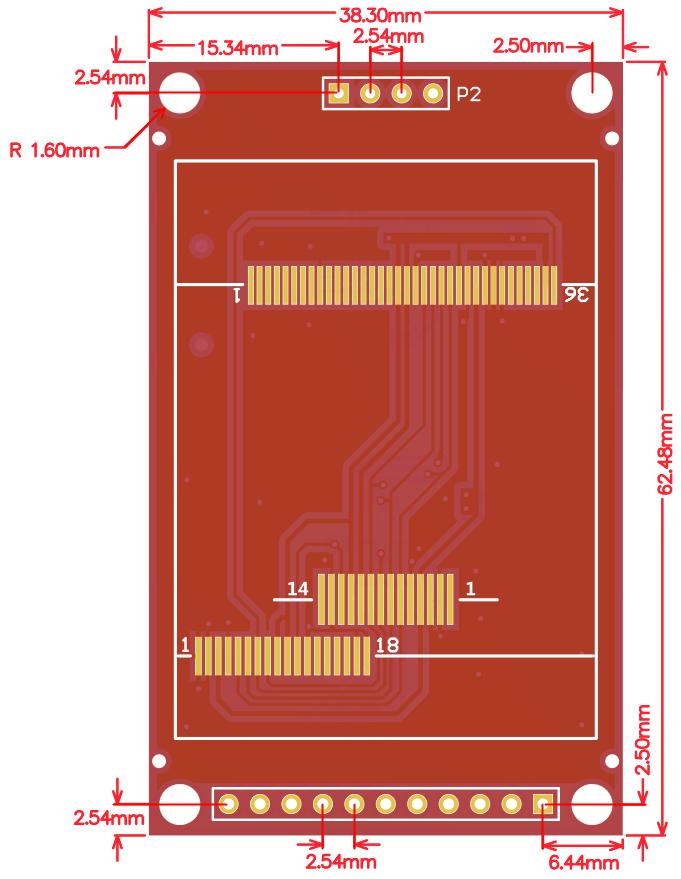

Product Size of 2.0 Inch SPI Display LCD Module

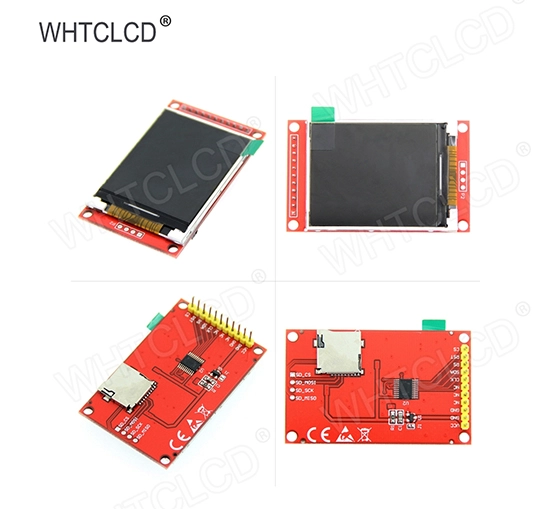

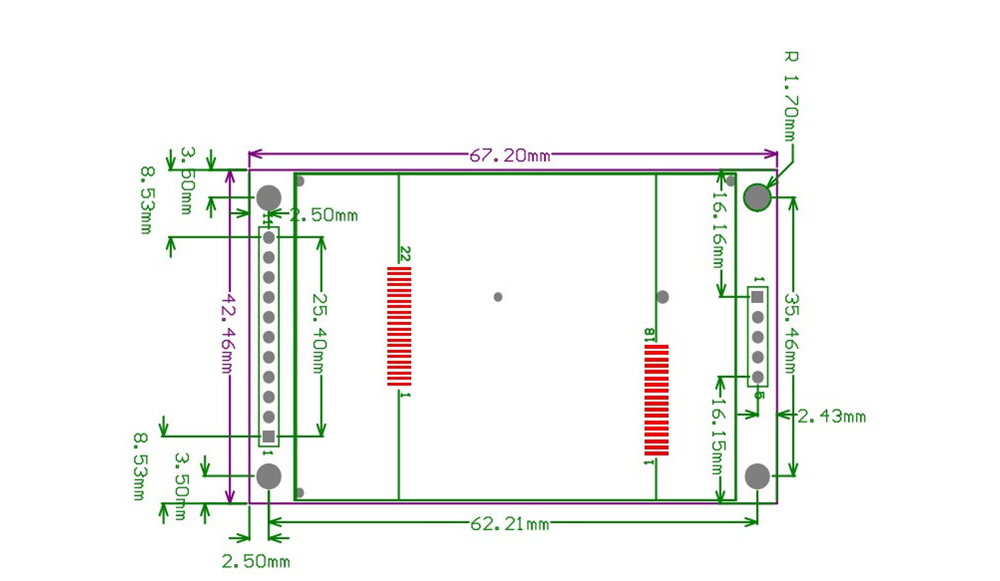

spi lcd spi isplay module
