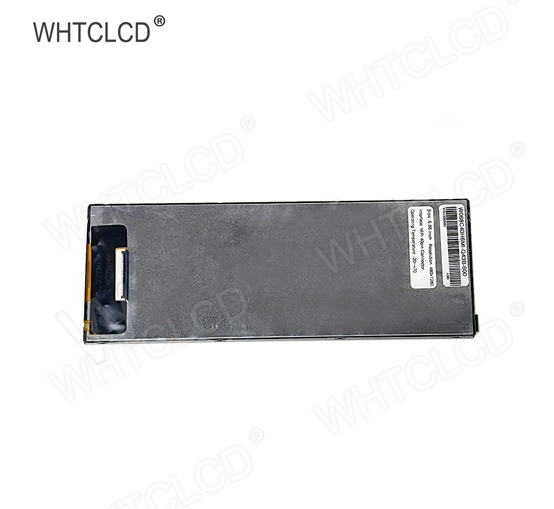

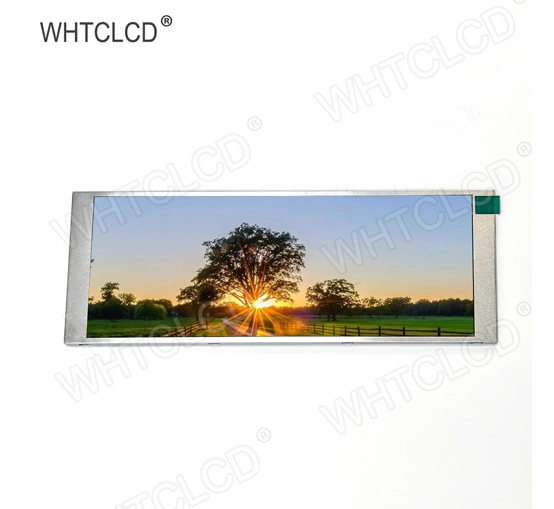

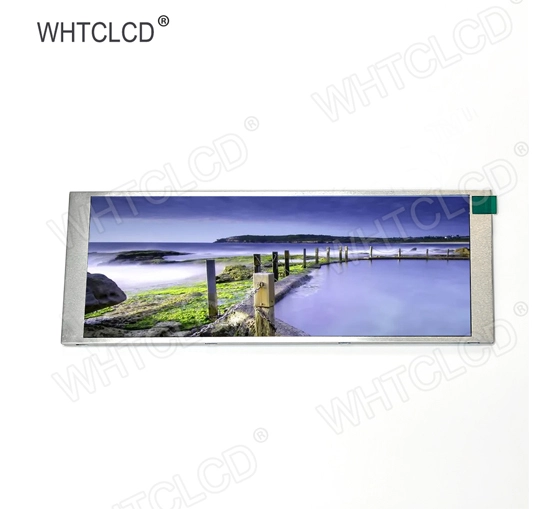

W068B40H6MI 6.86 Inch Bar Tft LCD

Name: W068B40H6MI 6.86 Inch Bar Tft LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

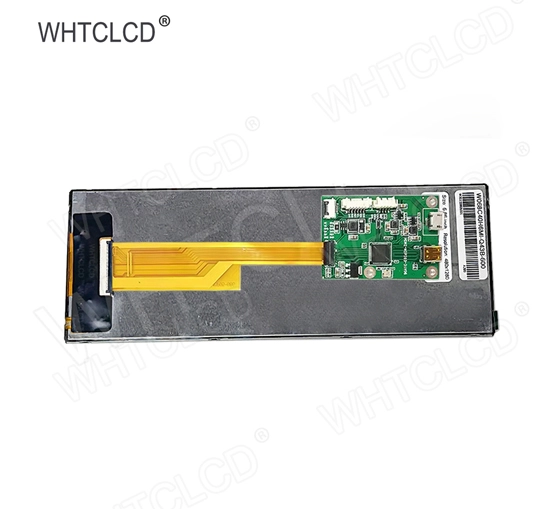

W068C40H6MI-J03H0 is a color active matrix thin film transistor (TFT)IPS liquid crystal display(LCD)that uses amorphous silicon TFT as a switching device. It is composed of a TFT LCD panel, Driver IC, FPC and Backlight.

Products

Parameters of 6.86 Inch Bar Tft LCD

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
6.86	480*1280	W068B40H6MI (Bar)	66.61814.5	60.22*160.59	IPS	MIPI	300	-20~70°C

Features of 6.86 Inch Bar Tft LCD

W068B40H6MI

No.	ltem	Specification	Unit
1	Panel Size	6.86"	inch
2	Number of Pixels	480×RGB (3)×1280	pixels
3	Active Area	60.192(H)x160.512(V)	mm
4	Pixel Pitch	0.1254 (H)×0.1254(V)	mm

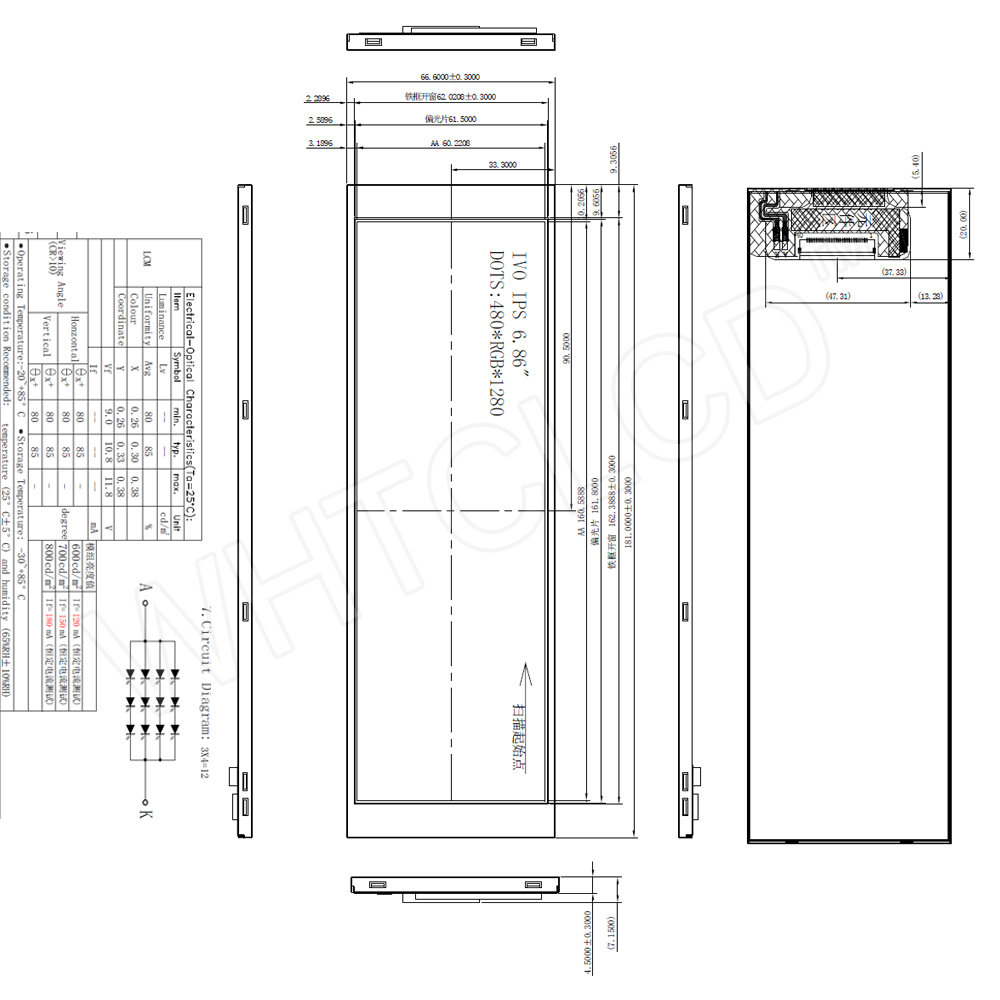

5	Outline Dimension	66.60(W)×181.00(H)×4.50(D)	mm
6	Number of Colors	16.7M
7	Display Mode	Normally Black
8	Viewing Direction	ALL
9	Display Format	RGB vertical stripe
10	Luminance (cd/m^2)	600(TYP.)	nit
11	Contrast Ratio	800(TYP.)
12	Surface Treatment	Anti-Glare
13	nterface	MIPI
14	Backlight	White LED
15	Operation Temperature	-20~60	℃
16	Storage Temperature	-25~65	℃

Pin No.	Symbol	Functional	Notes
1	GND	Ground
2	NOP	MIPI data input
3	DON	MIPI data input
4	GND	Ground
5	D1P	MIPI data input
6	D1N	MIPI data input
7	GND	Ground
8	CLKP	MIPI data input
9	CLKN	MIPI data input
10	GND	Ground
11	D2P	MIPI data input
12	D2N	MIPI data input
13	GND	Ground
14	D3P	MIPI data input
15	D3N	MIPI data input
1,617	GND	Ground
1,819	VCC	3.3V
20-23	NC	No connection
24	RSTB	Global reset pin
25	STBYB	NC
26	NC	No connection
27	GND	Ground
28-29	BL-K	Back light-K
30	GND	Ground
31	NC	No connection
32-33	GND	Ground
34	NC	No connection
35-36	BL-A	Back light-A
37	GND	Ground
38-39	VDD	Power supply for digital circuits +3.3V input
40	NC	No connection
