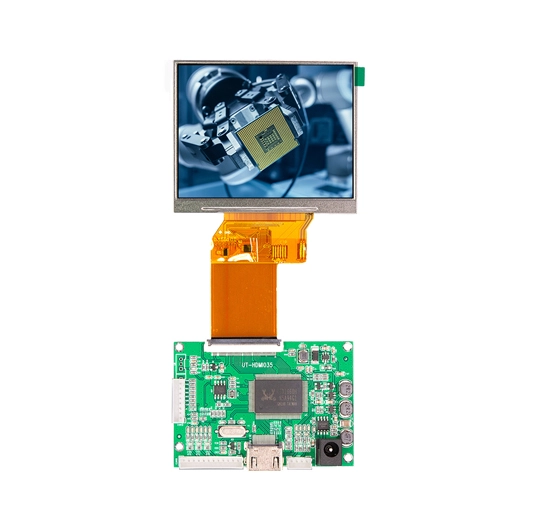

UT-HDMI035 RGB TTL LCD Controller Board

Parameters of UT-HDMI035 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
14	UT-HDMI035	AV / VGA / HDMI Signal input; Supports 3.5 inch LCD screen	RGB TTL 54pin	NO	DC12V

General Specifications of UT-HDMI035 RGB TTL LCD Controller Board

Model: UT-HDMI035

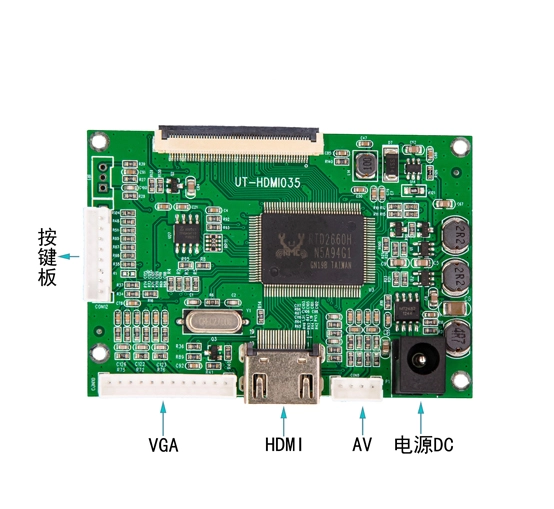

1 HDMI, VGA, CVBS (optional) video signal input

2 Signal output supports RGB 54pin interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function(optional)

Model	UT-HDMI035
Signal source	HDMI VGA AV(cvbs）
output interface	RGB_54pin
MAX Resolution support	800*600（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
screen size	3.5 inch
A sxreen that Can be driven	3.5 inch
