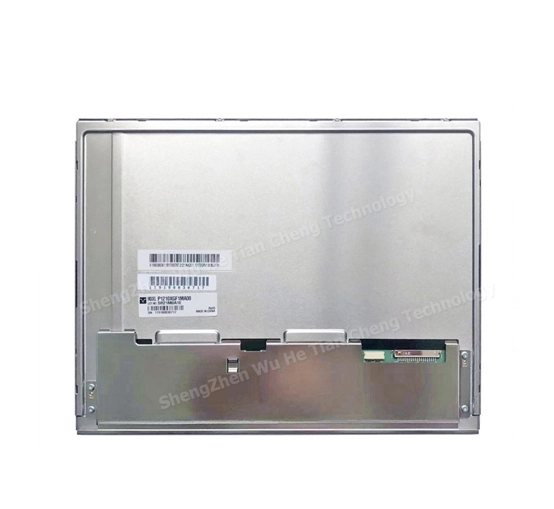

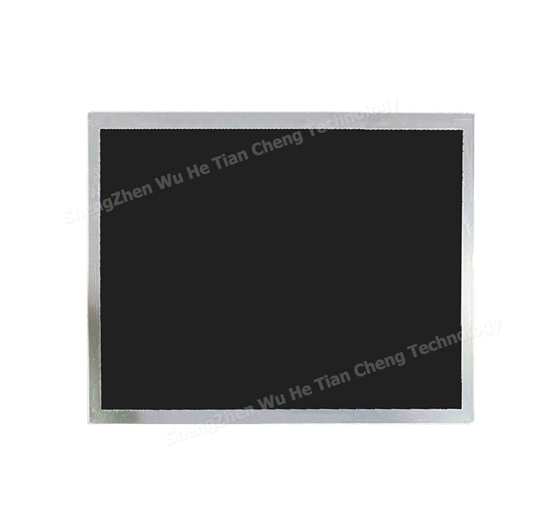

P1210XGF1MA00 12.1 Tianma LCD Panel

Name: P1210XGF1MA00 12.1 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 12.1 inch tft lcd panel P1210XGF1MA00 with 1024x768 XGA resolution , brightness 1300 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is -40 ~ +90 (°C). Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of P1210XGF1MA00 12.1 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.1	1024*768	P1210XGF1MA00	260.520310	245.76*184.32	IPS	LVDS	1300	-30~80°C

General Specifications of P1210XGF1MA00 12.1 Tianma LCD Panel

P1210XGF1MA00

Manufacturer	TIANMA
Model Name	P1210XGF1MA00
Screen Size	12.1 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	245.76 x 184.32 (H×V)
Outline(mm）	260.5 x 203 x 9.5 (H×V×D)
Pixel Pitch(mm)	0.240 (H) x 0.240 (V)
Treatment	AG
Luminance	1300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	88/88/88/88 (Typ.)
Response	25 (Typ.)(Tr/Td) ms
Work Mode	SFT , Normally black, Transmissive
Color Depth	262K/16.7M , 72% NTSC
Backlight	WLED, 100K hours, without driver
Net Weight	550g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -40 ~ +90 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	TIANMA Original Package
