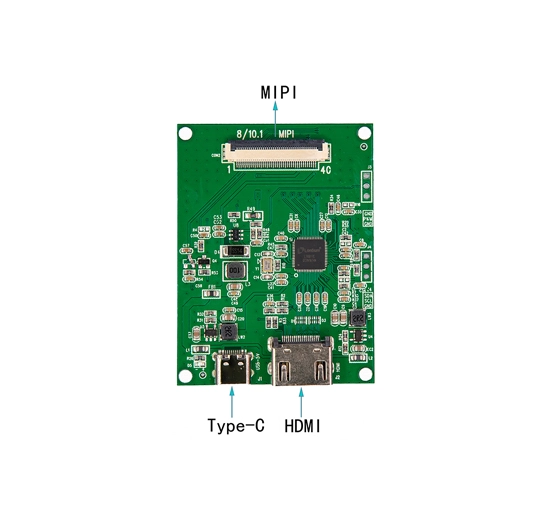

WH-LT6911 MIPI LCD Controller Board

Parameters of WH-LT6911 MIPI LCD Controller Board

No.ModelParameterinterfaceTouchpower supply
1WH-LT6911HDMI Signal input; Supports multiple resolutions, With sound output, Supports 5~10.1 inch LCD screenMiPi 40pinNODC+5V



General Specifications of WH-LT6911 MIPI LCD Controller Board

Model: WH-LT6911

1 HDMI signal input

2 Signal output supports MiPi 40pin interface LCD screen

3 Power input: Type-c (+5V)

4 Multi functional OSD Operations

5 With remote control function(optional)


Model

WH-LT6911

Signal source

HDMI

output interface

MiPi 40pin

MAX Resolution support

1200*1920(60~75Hz)

Power input

Type-c +5V

Operation Temperature

-10℃~+60℃

Working humidity

90%RH

Storage temperature

-20℃~+70℃

Save humidity

90%RH

screen size

5 inch, 7 inch, 8 inch, 9 inch, 10.1 inch­­­

A sxreen that

Can be driven

5 inch ~ 10.1 inch MiPi 40pin LCD Screen

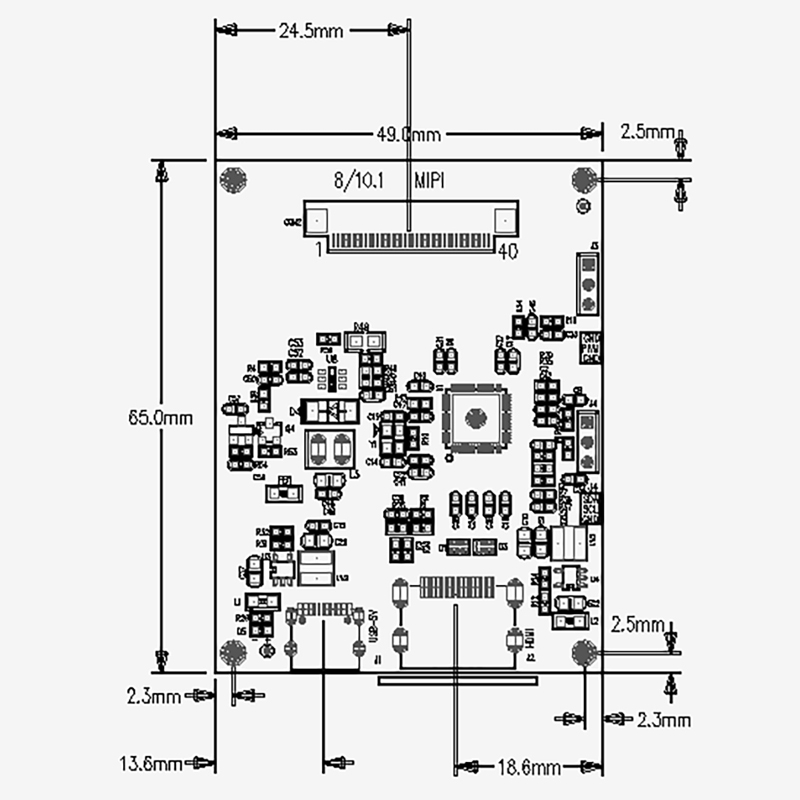

Structural Size of WH-LT6911 MIPI LCD Controller Board

 WH-LT6911 MIPI LCD Controller Board
