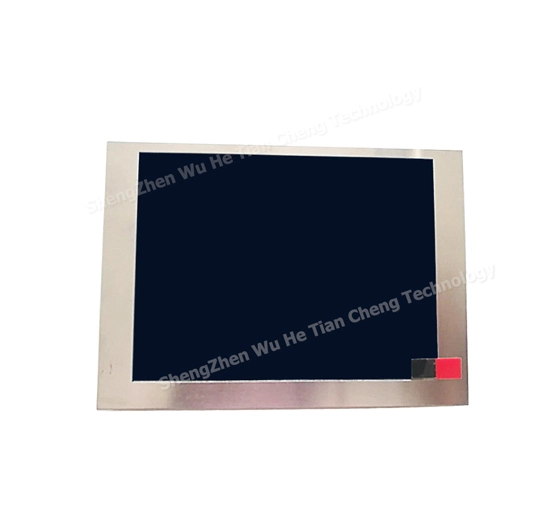

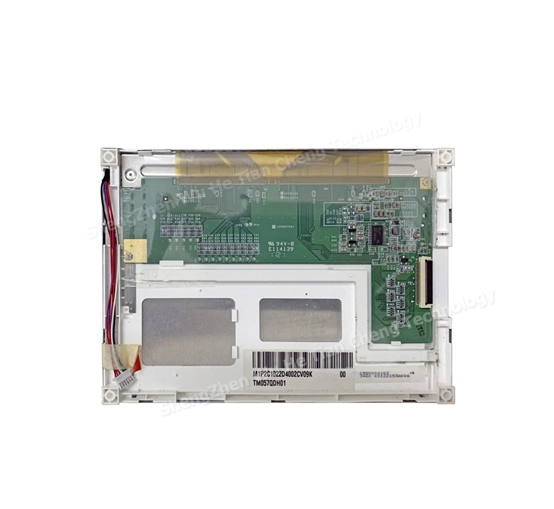

TM057KDH01-00 5.7 Tianma LCD Panel

Name: TM057KDH01-00 5.7 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 5.7 inch tft lcd panel TM057KDH01-00 with 320(RGB)x240 QVGA resolution, brightness 400 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +85 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of TM057KDH01-00 5.7 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
5.7	320*240	TM057KDH01-00	144104.6012.3	115.20*86.4	TN	RGB	400	-20~70°C

General Specifications of TM057KDH01-00 5.7 Tianma LCD Panel

Manufacturer	TIANMA
Model Name	TM057KDH01-00
Screen Size	5.7 INCH
Pixel Number	800(RGB)×480, WVGA
Active Area(mm)	115.20 x 86.40 (H×V)
Outline(mm）	144.00 x 104.60 x 12.30 (H×V×D)
Pixel pitch(mm)	0.360 x 0.360 (H×V)
Treatment	Anti-Glare 3H
Luminance	400 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/70/60(CR≥10) Left / Right/UP /Down
Response	20(Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	262K , 50% NTSC
Backlight	WLED , 50K hours,without driver
Net Weight	160g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6-bit) ,33 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA original package;
	40 pcs/ctn;
	weight : 9.396Kgs;
	size : 530(L)mm x 350(W)mm x 250(H)mm
