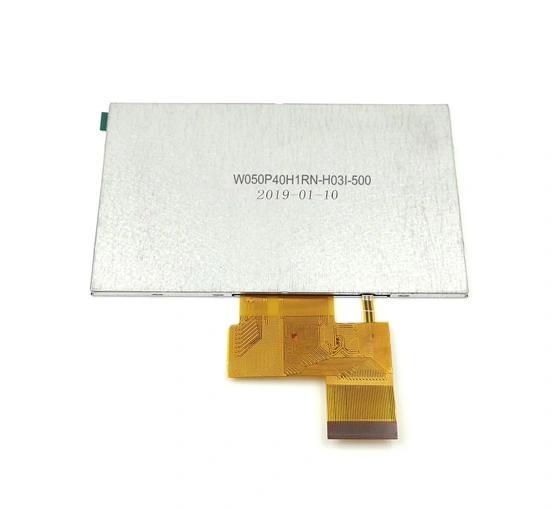

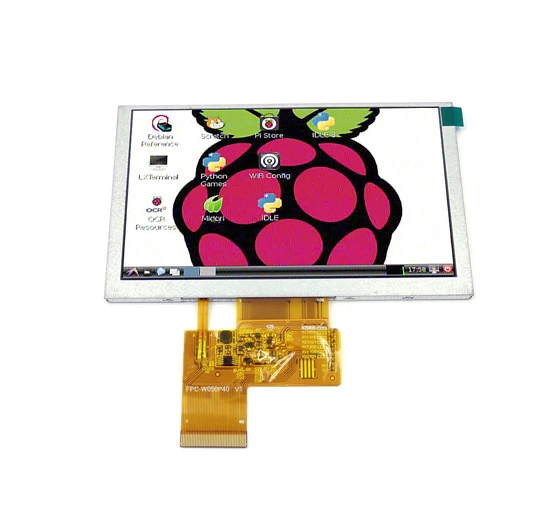

W050P40H2RI-Q53B0 5 Inch Sunlight Readable LCD Display

W050P40H2RI is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 110.88*62.832 and the native resolution is 800*480 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 5 Inch Sunlight Readable LCD Display

Size(inch)ResolutionModelLCM Dimension(mm)Active Area(mm)ViewInterfaceBrightness(nits)OP(℃)
5800*480W050P40H2RI-Q53B0105.5*67.2*3.095.04*53.86IPSRGB300-1500-20~70°C


General Specifications of 5 Inch Sunlight Readable LCD Display

W050P40H2RI-Q53B0

FeatureSpecificationsUnit
Size5inch
Technology Typea-si TFT
Resolution800(RGB)x480
Pixel pitch`mm
Pixel arrangementRGB-stripe
Color Depth262K/16.7M
Display ModeTFT,Transmissive,Normally black
Driver IC7262
Surface Treatment`
Viewing DirectionIPS
Gray Viewing Direction`
LCM (W x H x D) (mm)120.7(W)×75.8(H)×3(D) mmmm
Active Area(mm)110.88(W)×62.832(H) mmmm
Touch PanelSupport  CTP/RTP
Brightness300-1500nits
Weight (g)`g
InterfaceRGB  FPC 40pin
Operation Temperature-20~70℃
Storage Temperature-30~85℃
Module lifetime(Hours)50,000-100,000℃
