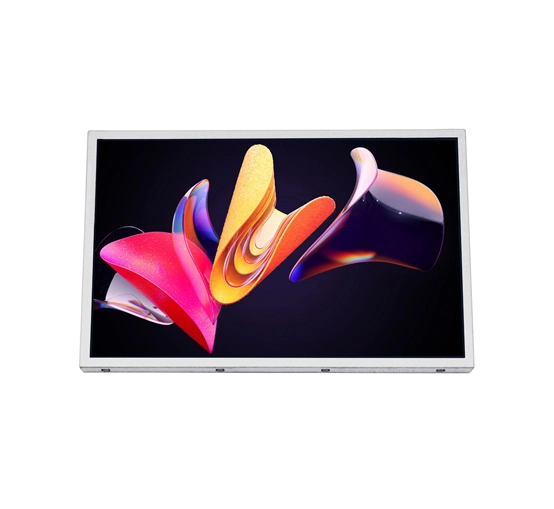

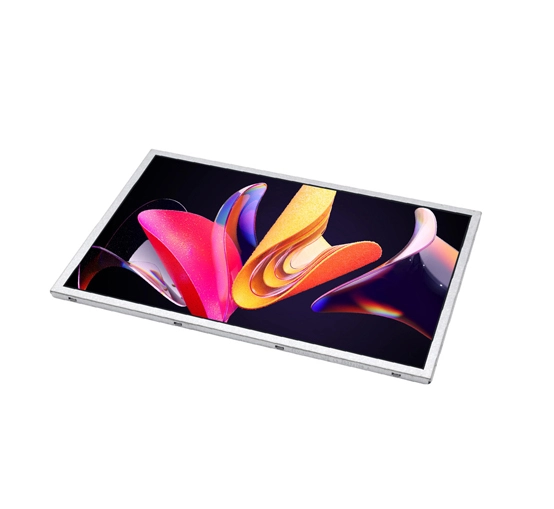

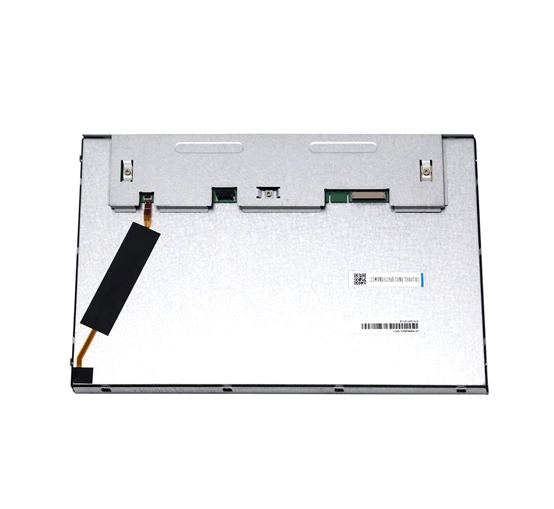

W121C40H2LI-Z07A0 12.1 Inch IPS TFT LCD

Name: W121C40H2LI-Z07A0 12.1 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W121C40H2LI is a transmissive color active matrix liquid crystal display, which consists of a TFT LCD panel, driver IC, FPC, and LED backlight unit. The activity display area is 261.120*163.2, with a native resolution of 1280 * 800, capable of displaying up to 262K/16.7M colors. Applications include testing equipment, medical devices, robots, automation equipment, and industrial displays.

Products

Parameters of 12.1 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
12.1	1280*800	W121C40H2LI-Z07A0	283185.17.16	261.120*163.2	IPS	LVDS	1200	-20~70°C

General Specifications of 12.1 Inch IPS TFT LCD

W121C40H2LI-Z07A0

Feature	Specifications	Unit
Size	12.1	inch
Technology Type	a-si TFT
Resolution	1280(RGB)x800
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	277.7(W)×180.6(H)×8.7(D) mm	mm
Active Area(mm)	261.12(W)×163.2(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300-800	nits
Weight (g)	`	g
Interface	LVDS 40pin Connector
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

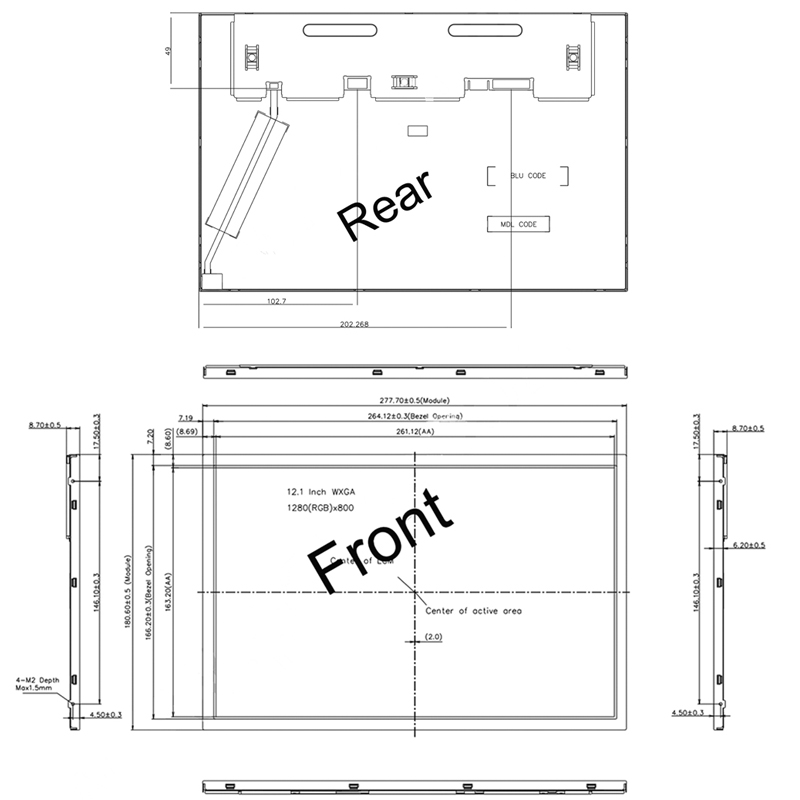

Structural Size of 12.1 Inch IPS TFT LCD

W121C40H2LI-Z07A0

12.1 Inch IPS TFT LCD
