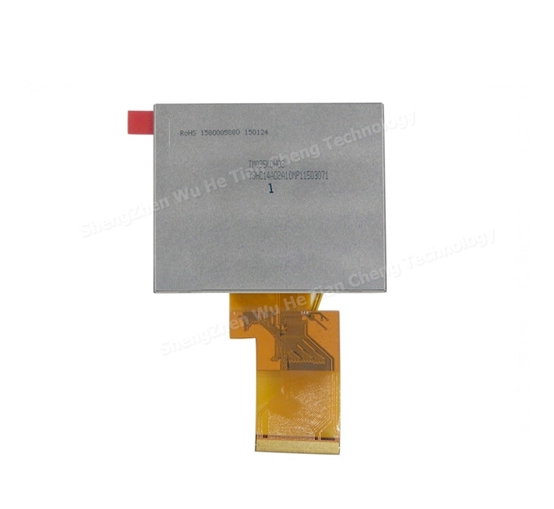

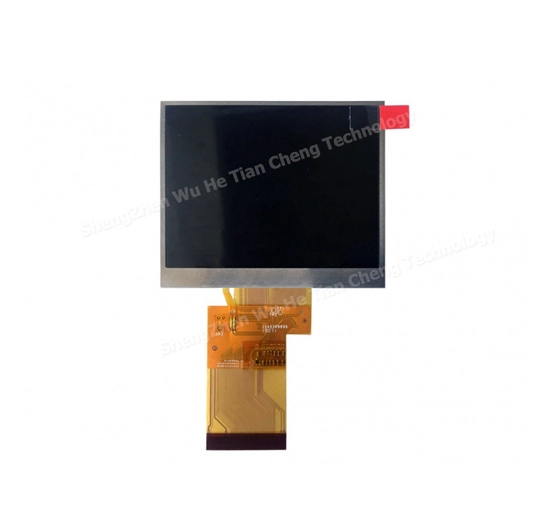

TM035KDH03-79 3.5 Tianma LCD Panel

Name: TM035KDH03-79 3.5 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 3.5 inch tft lcd panel TM035KDH03-79 with 320x240 QVGA resolution, brightness 300 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is -30 ~ +80 (°C).Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of TM035KDH03-79 3.5 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
3.5	320*240	TM035KDH03-79	76.963.93.15	70.08*52.58	TN	RGB	300	-20~70°C

General Specifications of TM035KDH03-79 3.5 Tianma LCD Panel

Manufacturer	TIANMA
Model Name	TM035KDH03-79
Screen Size	3.5 inch
Pixel Number	320(RGB)×240, QVGA
Active Area(mm)	70.08 x 52.58 (H×V)
Outline(mm）	76.9 x 63.9 x 3.15 (H×V×D)
Pixel pitch(mm)	0.219 x 0.219 (H×V)
Treatment	Anti--Glare
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/60/70(CR≥10) Left / Right/UP /Down
Response	20 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	16.7M , 50% NTSC
Backlight	WLED, 20K hours, without LED Driver
Net Weight	30.0g
Touchscreen	without
Signal Type/interface Type	Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC, 54 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	TIANMA original package;
	252 pcs/ctn;
	weight : 13.24Kgs;
	size : 544(L)mm x 365(W)mm x 250(H)mm.
