W019B30S1CI-X01B0 1.9 Inch Bar Tft LCD

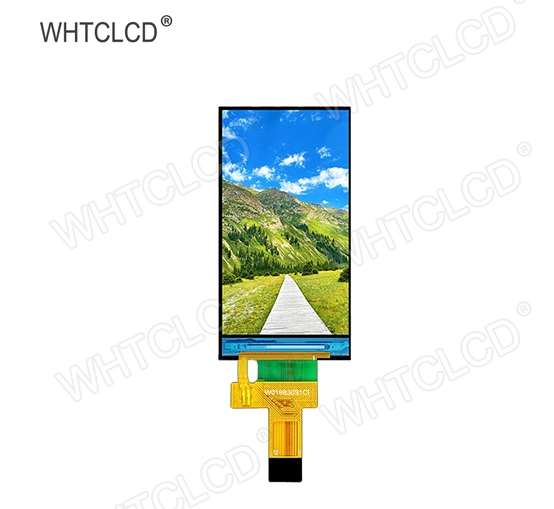

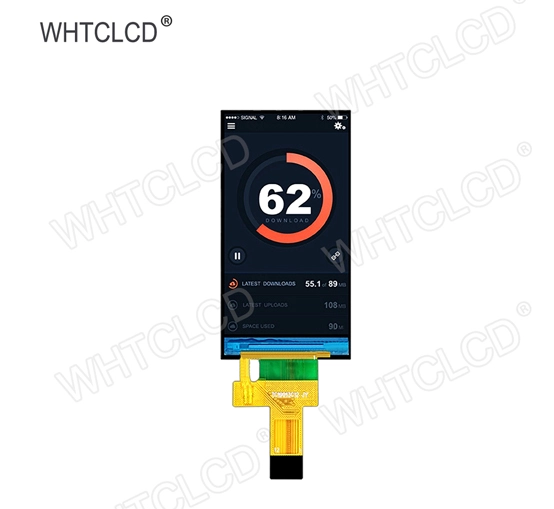

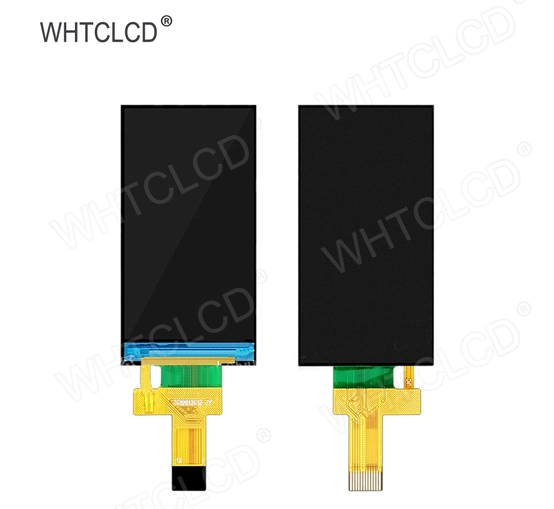

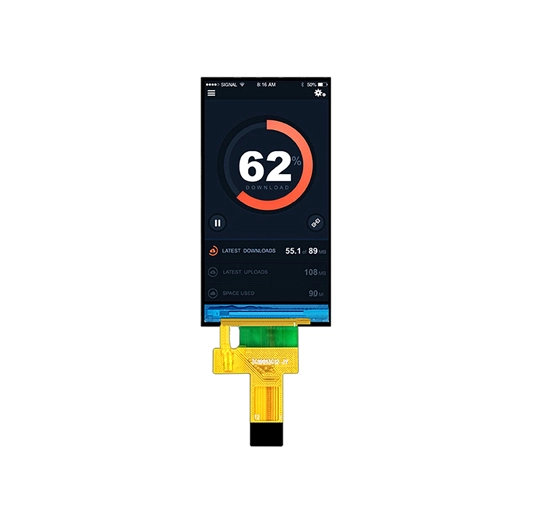

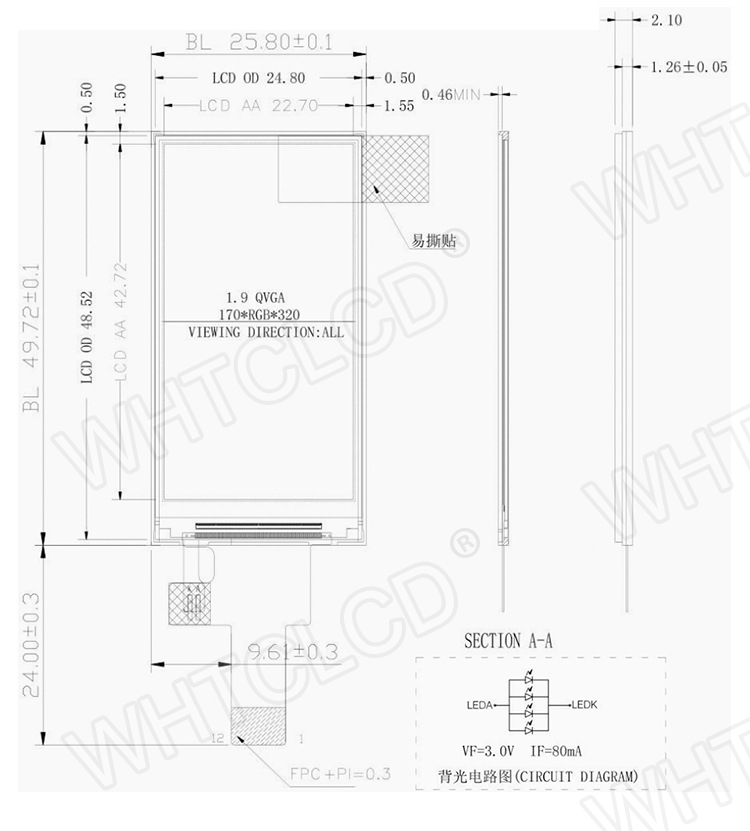

Parameters of 1.9 Inch Bar Tft LCD

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
1.9	170*320	W019B30S1CI-X01B0 (Bar)	25.8049.721.43	22.70*42.72	IPS	MCU	300	-20~70°C

Pin interface of 1.9 Inch Bar Tft LCD

W019B30S1CI-X01B0

Pin No.	Symbol	Description
1	GND	Power Ground
2	K	Back-light Cathode
3	A	Back-light Anode
4	VDD	Power supply for interface logic circuits(2.8V-3.2V)
5	GND	Power Ground
6	GND	Power Ground
7	D/C	Serves as command or parameter select.
8	CS	Chip select input pin
9	SCL	This pin is used serial interface clock
10	SDA	The data is applied on the rising edge of the SCL signal.
11	RESET	Reset input pin
12	GND	Power Ground
