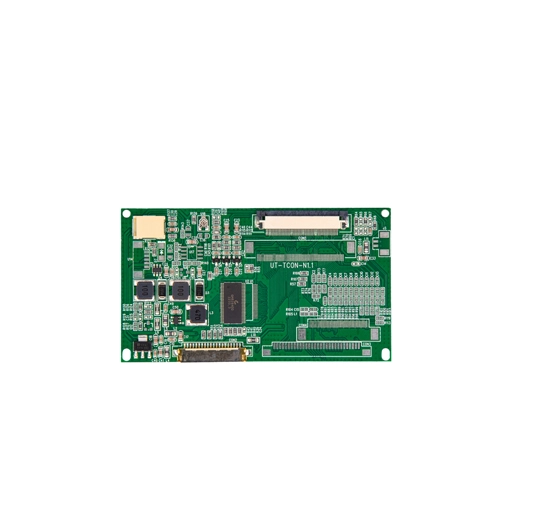

UT-TCON-N1.1 RGB TTL LCD Controller Board

Parameters of UT-TCON-N1.1 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
19	UT-TCON-N1.1	LVDS to RGB 50pin	RGB TTL 50pin	NO	3.3 / 5V

General Specifications of UT-TCON-N1.1 RGB TTL LCD Controller Board

Model: UT-TCON-N1.1 (50PIN)

LVDS to RGB

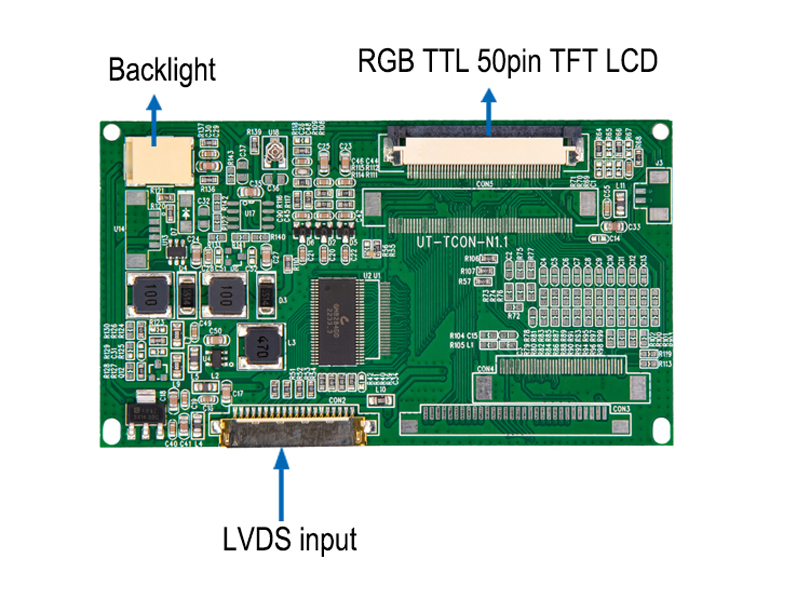

1 LVDS input to RGB 50pin 60pin out

2 Single 6-bit LVDS signal to 50p-RGB signal driving TFT LCD screen(The LVDS outout resolution of the motherboard needs to be set according to the driver screen resolution)

3 Equipped with LCD backlight driver circuit

RGB to RGB

1 RGB 40pin to RGB 50pin

2 AT070TN83_AT070TN83V.1 define 40p-RGB signal to 50p-RGB signal direct drive screen

3 Equipped with backlight driver circuit, no need for external LED driver

Application scope: Industrial control/instrumentation/human-machine interface/portable/handheld devices/car navigation systems/smart homes/medical displays

A screen that can be driven	7 inch RGB50pin	AT070TN92	800*480	8 inch RGB50pin	AT080TN64	800*480
		AT070TN93	800*480		AT080TN52	800*600
		AT070TN94	800*480		EJ080NA-05A	800*600
		AT070TN90	800*480		EJ080NA-05B	800*600
		TM070RBH10	800*480		TM080RDH01	800*600
		W070P50S1RN	800*480		W080P50S2RN-	800*480
		W070P50H3RI	1024*600		W080P50S4RN	800*600
	7 inch RGB60pin	A070VW04 V0	800*480	8 inch RGB60pin	A080VW01	800*600
		HSD070IDW1-A00	800*480		HSD084ISN1-A01	800*600
		HSD070IDW1-A20	800*480		HSD084ISN1-A00	800*600
		CLAA070MA0ACW	800*600		TM084SDHG02	800*600
	9 inch RGB50pin	AT090TN12	800*480	10.1 inch RGB50pin	G101STN01.2	1024*600
		AT090TN10	800*480		TM101DDHG06-71	1024*600
		EJ090NA-01B	800*480		W101P50H1RI	1024*600
		W090P50S3RN	800*480	10.4 inch RGB60pin	LSA40AT9001	800*600
				10.4 inch RGB60pin	A104SN03	800*600
