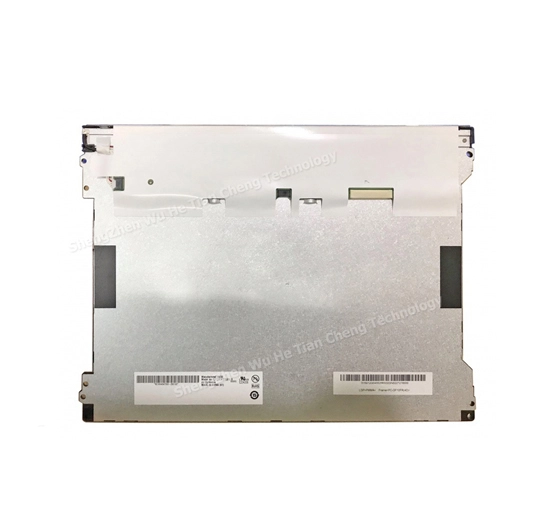

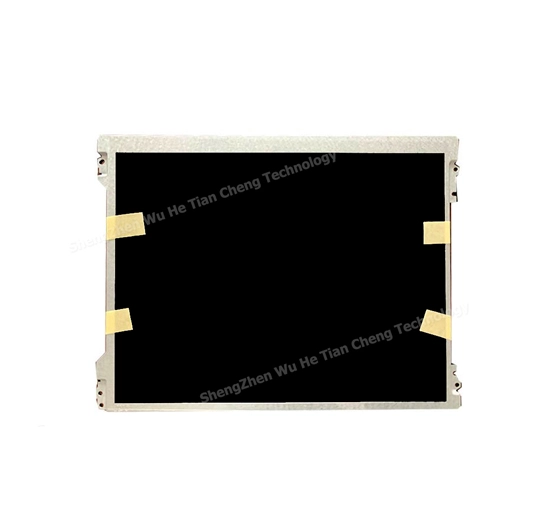

G121XN01 V0 12.1 AUO LCD Panel

Name: G121XN01 V0 12.1 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 12.1 inch tft lcd panel G121XN01 V0 with 1024(RGB)x768 XGA resolution, brightness 500 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for Industrial use(wide application).

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G121XN01 V0 12.1 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.1	1024*768	G121XN01 V0	2792099	245.76*184.32	IPS	LVDS	500	-30~85°C

General Specifications of G121XN01 V0 12.1 AUO LCD Panel

Manufacturer	AUO
Model Name	G121XN01 V0
Screen Size	12.1 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	245.76 × 184.32 (H×V)
Outline(mm）	279 × 209 × 9 (H×V×D)
Bezel Area(mm)	250.8 × 189.4 (H×V)
Treatment	Hard coating (3H)
Luminance	500 cd/m² (Typ.)
Contrast Ratio	700 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	25/10 (Typ.)(Tr+Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 70% NTSC
Backlight	WLED , 50K hours , with LED Driver
Net Weight	495g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8bit) , 20 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -30 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +85 (°C)
Package	AUO original package;
	20 pcs/ carton;
	weight : 14.8Kgs;
	size : 570(L) x 320(W) x 420(H)mm
