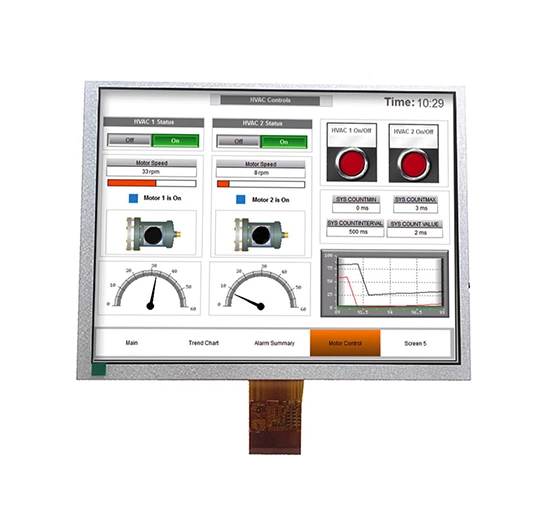

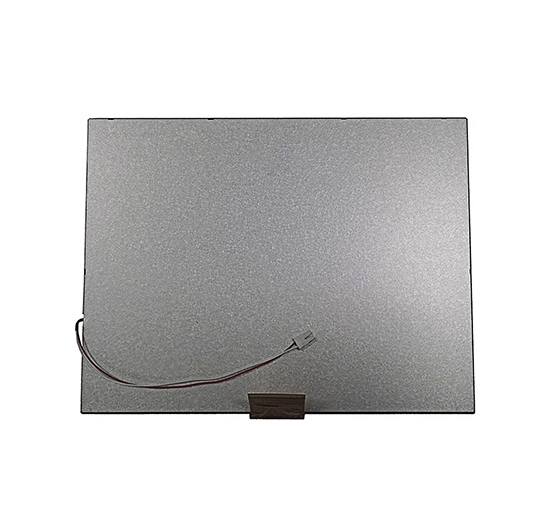

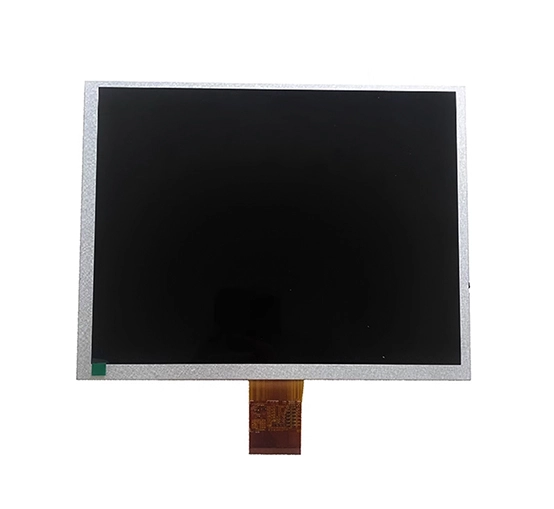

W104C60E1LI-H16A0 10.4 Inch TN TFT LCD

Name: W104C60E1LI-H16A0 10.4 Inch TN TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

W104P60E1RN is a transmissive color active matrix liquid crystal display, which consists of a TFT LCD panel, driver IC, FPC, and LED backlight unit. The activity display area is 211.2 * 159.4, with a native resolution of 800 * 600, capable of displaying up to 262K/16.7M colors. Applications include wire testers, blood pressure monitors, medical equipment, robots, and industrial displays.

Products

Parameters of 10.4 Inch TN TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
10.4	800*600	W104C60E1LI-H16A0	228.4175.45.9	211.2*158.4	TN	RGB	400	-30~80°C

General Specifications of 10.4 Inch TN TFT LCD

W104P60E1RN

Feature	Specifications	Unit
Size	10.4	inch
Technology Type	a-si TFT
Resolution	800(RGB)x600
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT, Transmissive, Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	TN
Gray Viewing Direction	`
LCM (W x H x D) (mm)	228.5(W)×175.5(H)×5.9(D) mm	mm
Active Area(mm)	211.2(W)×159.4(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	260-600	nits
Weight (g)	`	g
Interface	RGB 60pin FPC
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

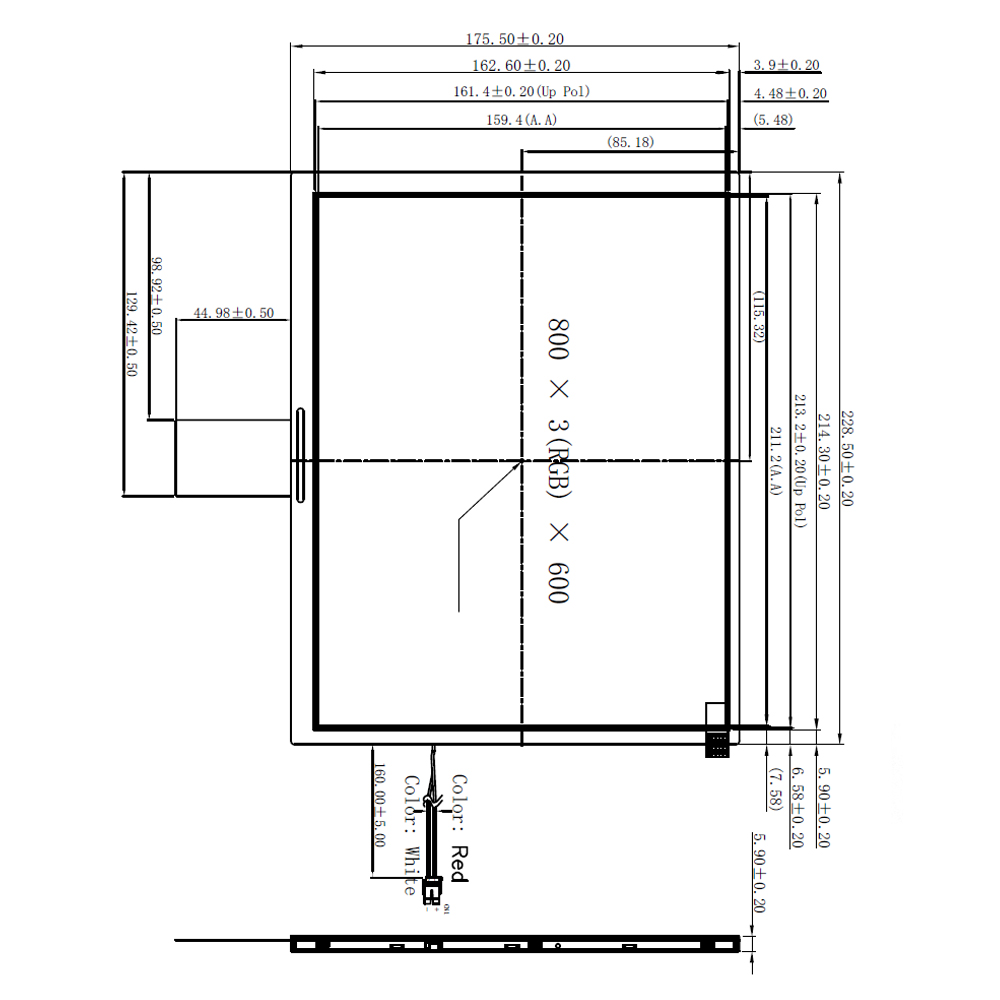

Structural Size of 10.4 Inch TN TFT LCD

W104P60E1RN
