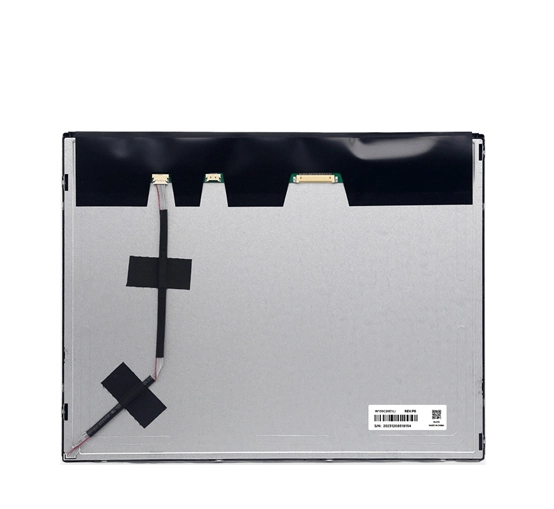

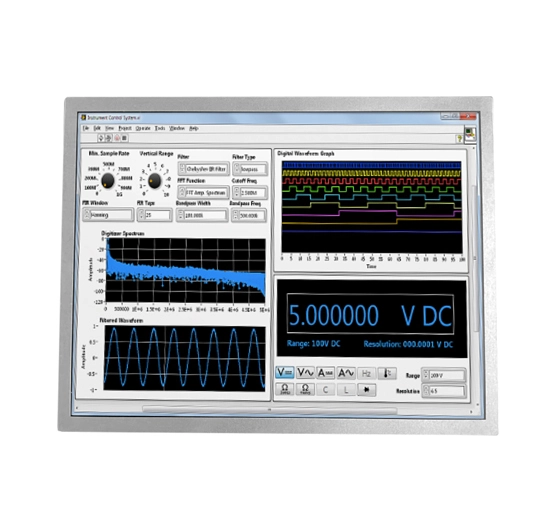

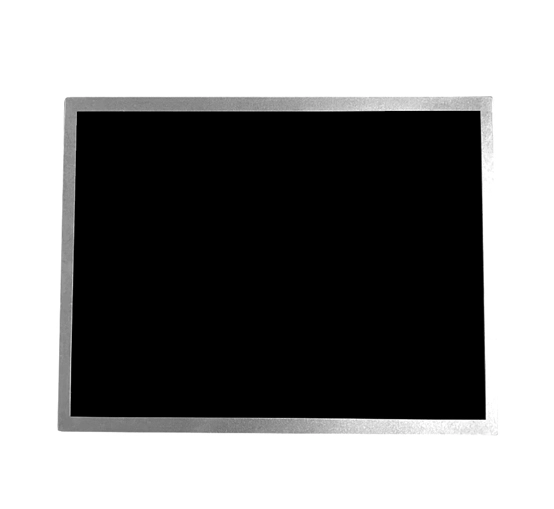

W150C20E1LI-H19A0 15.0 Inch IPS TFT LCD

Name: W150C20E1LI-H19A0 15.0 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

15.0 Inch IPS TFT LCD is a transmissive color active matrix liquid crystal display consisting of a TFT LCD panel, driver IC, FPC, and LED backlight unit. The activity display area is 304.128*228.096, with a native resolution of 1024 * 768, capable of displaying colors up to 262K/16.7M. Applications include computer displays, testing equipment, medical devices, robots, automation equipment, automotive displays, and industrial displays.

Products

Parameters of 15.0 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
15	1024*768	W150C20E1LI-H19A0	326.5253.59.6	304.128*228.096	IPS	LVDS	350	-20~70°C

General Specifications of 15.0 Inch IPS TFT LCD

W150C20E1LI-H19A0

Feature	Specifications	Unit
Size	15	inch
Technology Type	a-si TFT
Resolution	1024(RGB)x768
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	326.5(W)×253.5(H)×9.6(D) mm	mm
Active Area(mm)	304.128(W)×228.096(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300-800	nits
Weight (g)	`	g
Interface	LVDS 20pin Connector
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

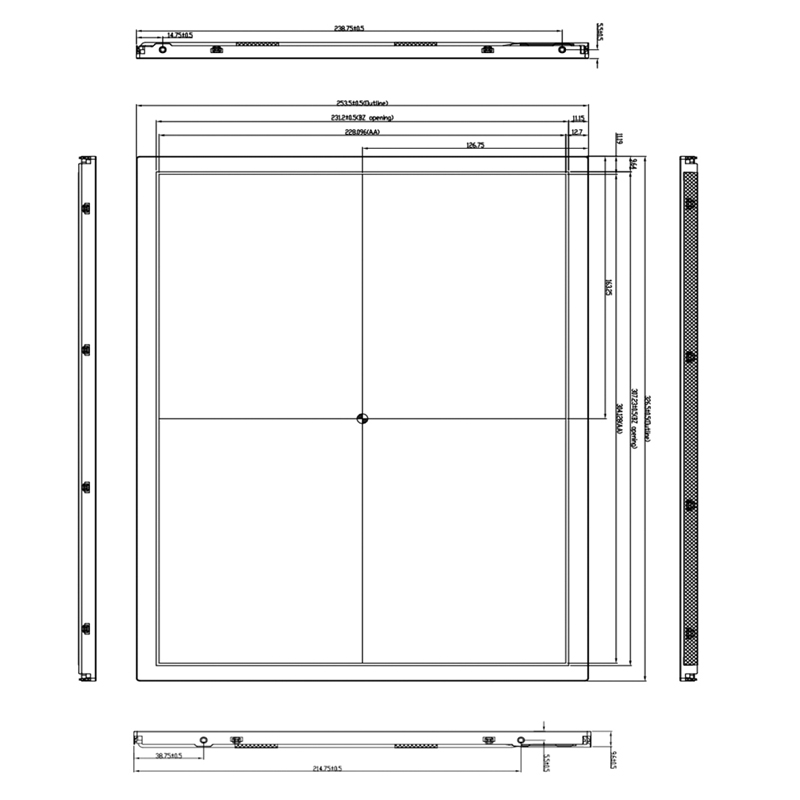

Structural Size of 15.0 Inch IPS TFT LCD

W150C20E1LI-H19A0

15.0 Inch IPS TFT LCD
