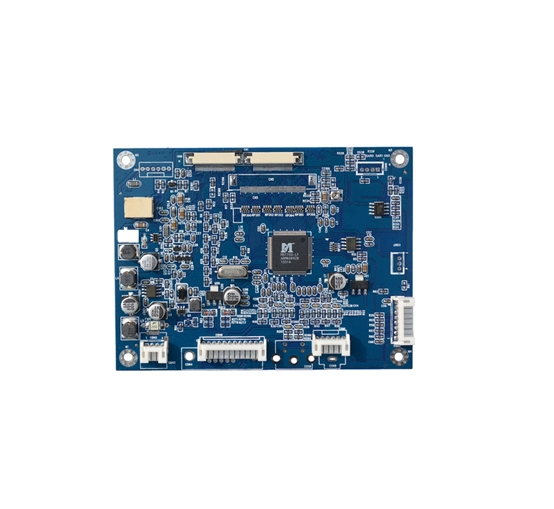

UT-MD07080 V.3 RGB TTL LCD Controller Board

Parameters of UT-MD07080 V.3 RGB TTL LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
11	UT-MD07080 V.3	HDMI / VGA / AV Signal input; Supports multiple resolutions, Supports 5 / 7 / 8 / 9 / 10.1 / 10.2inch LCD screen	RGB TTL 50pin / 2 x 30pin	NO	DC12V

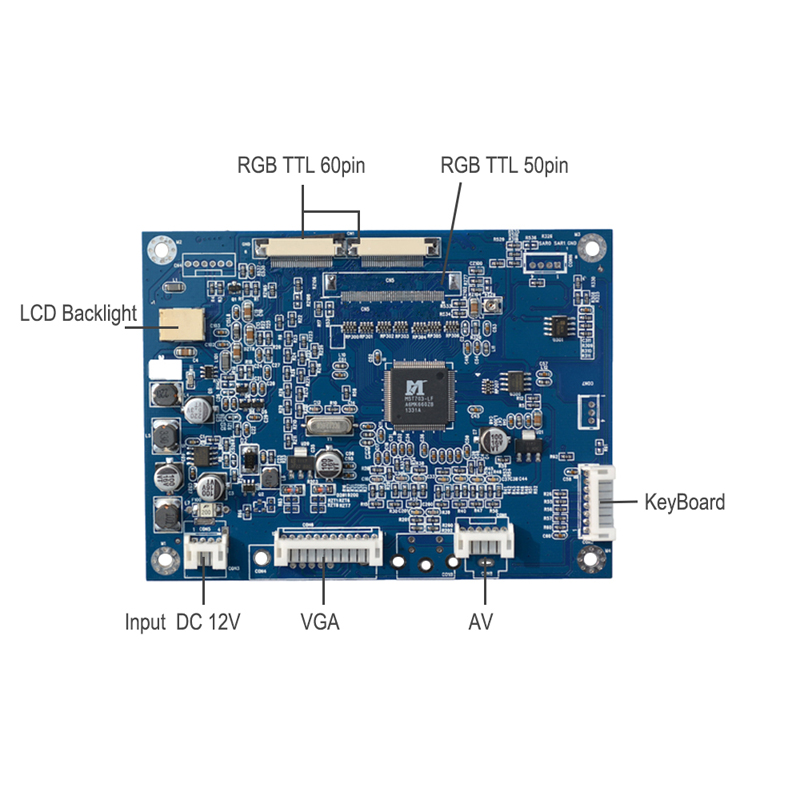

General Specifications of UT-MD07080 V.3 RGB TTL LCD Controller Board

V.3 RGB TTL LCD Controller Board

Model: UT - MD07080 V.3

1 VGA, CVBS1, CVBS2 (optional) video signal input

2 Signal output supports RGB50p/dual 30p interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

Model	UT- MD07080 V.3
Signal	VGA AV(cvbs）
output interface	RGB_50P/双_30P
supported resolution	800*600（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
screen size	5 inch, 7 inch, 8 inch, 9 inch, 10.1 inch, 10.2 inch
A screen that can be driven	Single 50pin			Double 30Pin
	5 inch	EJ050NA-01G	800*480	7 inch	AT070TN82	800*480
	5 inch	ZJ050NA-08C	640*480		AT070TN84	800*480
	7 inch	AT070TN92	800*480		AT070TN83 V.3	800*480
		AT070TN93	800*480		TM070SDH01	800*600
		AT070TN94	800*480
		AT070TN90	800*480
		TM070RBH10	800*480
	8 inch	AT080TN64	800*480	8 inch	AT080TN01	800*480
		AT080TN52	800*600		AT080TN03	800*480
		EJ080NA-05A	800*600	8.4 inch	LB084S02-TD01/02	800*600
		EJ080NA-05B	800*600	10.1 inch	A101WV01	800*480
		TM080RDH01	800*600	10.2 inch	AT102TN01	800*480
	9 inch	AT090TN12	800*480		AT102TN03 V.8	800*480
	9 inch	AT090TN10	800*480		AT102TN03 V.9	800*480

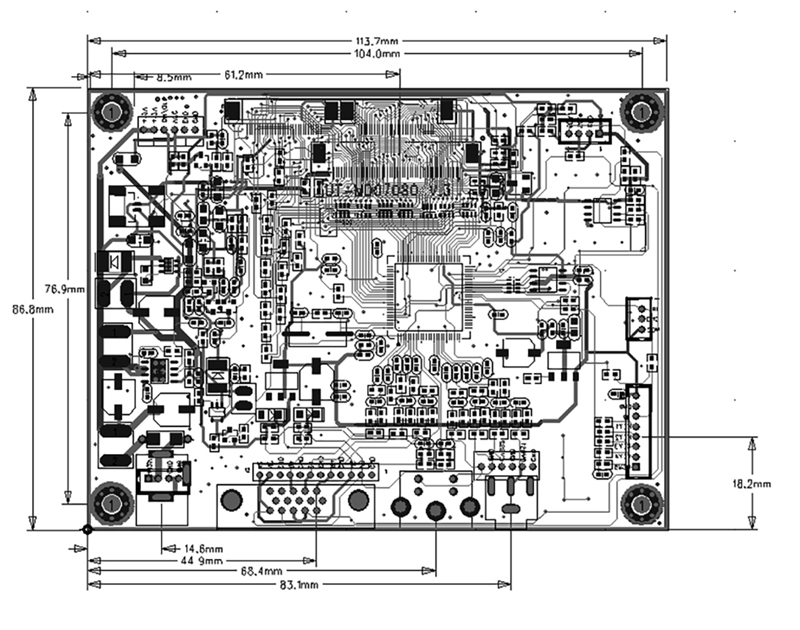

Structural Size of UT-MD07080 V.3 RGB TTL LCD Controller Board

V.3 RGB TTL LCD Controller Board
