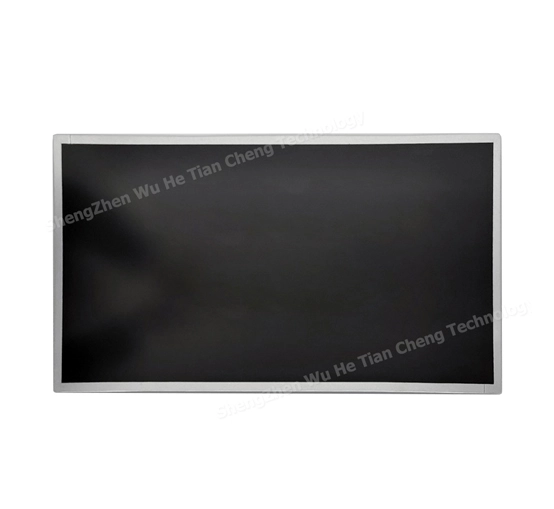

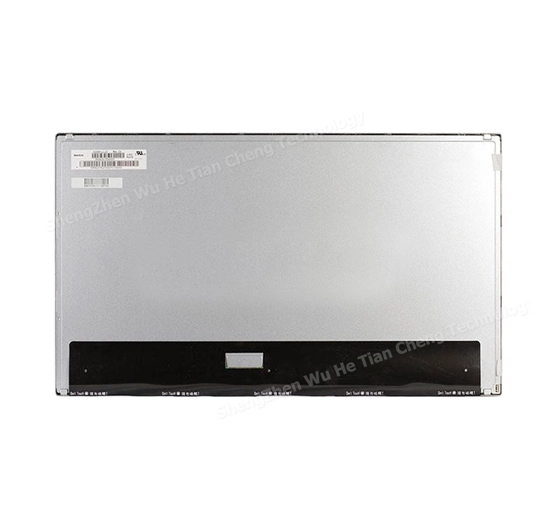

M236HJJ-L31 23.6 Inch INNOLUX LCD Panel

Name: M236HJJ-L31 23.6 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 23.6 inch IPS TFT LCD Panel M236HJJ-L31 with 1920(RGB)x1080 Full HD resolution, brightness 250 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Digital signage.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of M236HJJ-L31 23.6 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
23.6	1920*1080	M236HJJ-L31	544.8320.511	521.28*293.22	IPS	LVDS	250	-0~50°C

General Specifications of M236HJJ-L31 23.6 Inch INNOLUX LCD Panel

Manufacturer	INNOLUX
Model Name	M236HJJ-L31
Screen Size	23.6 inch
Pixel Number	1920(RGB)×1080 , Full HD
Active Area(mm)	521.28 × 293.22 (H×V)
Outline(mm）	544.8 × 320.5 ×11 (H×V×D)
Bezel Area(mm)	525.22 × 297.22 (H×V)
Treatment	AG type, 3H hard coating, Haze :25%
Luminance	250 cd/m² (Typ.)
Contrast Ratio	3000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10) Left / Right/UP /Down
Response time	20 (Typ.)(Tr/Td) ms
Display Mode	MVA , Normally black , Transmissive
Color Depth	16.7M , 72% NTSC
Backlight	WLED , 40K hours , without Driver
Net Weight	2.31±0.11Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C)
Max. Ratings	Operating Temp.: 0 ~ +50 (°C)
Package	Innolux Original package
	11 pcs/ctn;
	weight : 30.1Kgs;
	size : 620(L) x 348(W) x 430(H) mm
