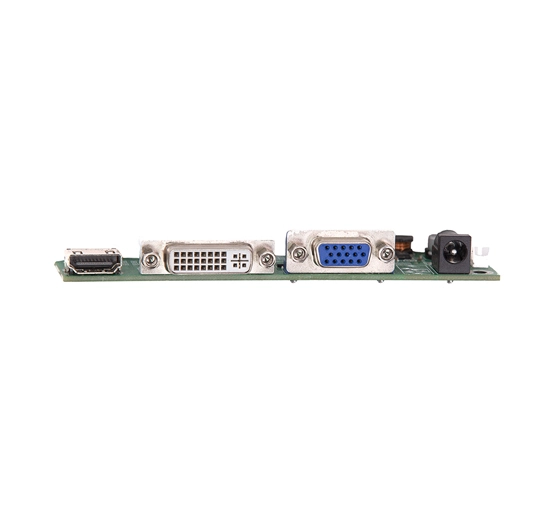

ND-R60H LVDS LCD Controller Board

Parameters of ND-R60H LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
11	ND-R60H	VGA / DVI / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 23.8 inch LCD screen	LVDS 30pin	NO	DC12V

General Specifications of ND-R60H LVDS LCD Controller Board

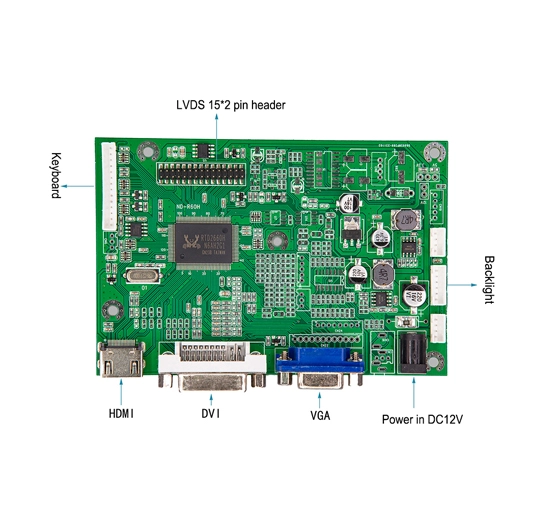

Model: ND-R60H V.1 (30pin)

1 HDMI, VGA, DVI signal input

2 Signal output supports LVDS 30pin Single/Double 6/8-bit interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function (optional)

Model	ND-R60H V.1
Signal	HDMI VGA DVI signal
Output interface	30pin LVDS Connector(Single/Double 6/8-bit)
Supported resolution	1366*768（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
Screen size	7 inch~23.8 inch
A screen that can be driven	7 inch~23.8 inch LVDS Connector(Single/Double 6/8-bit)

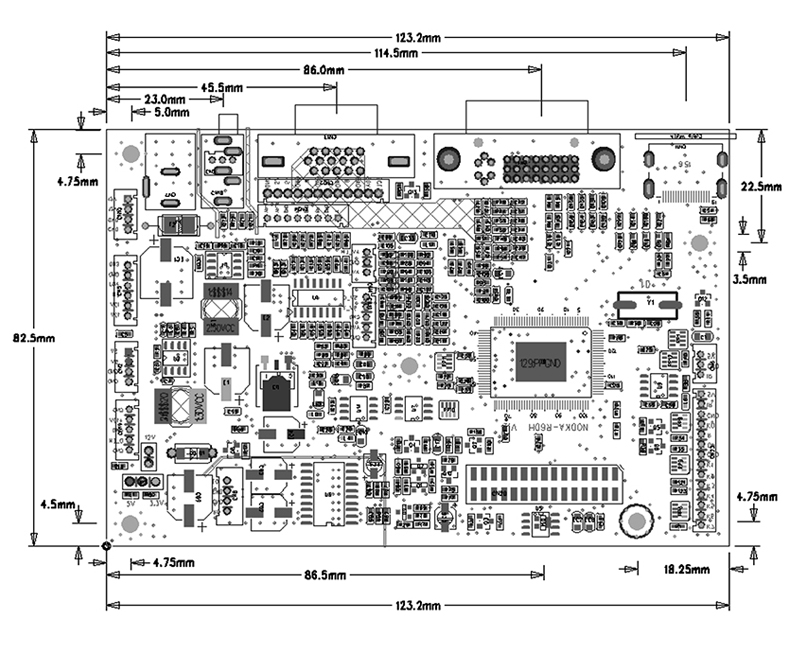

Structural Size of ND-R60H LVDS LCD Controller Board

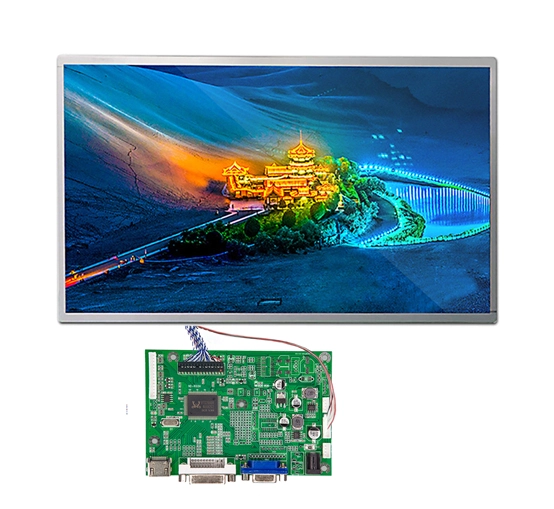

ND-R60H LVDS LCD Controller Board
