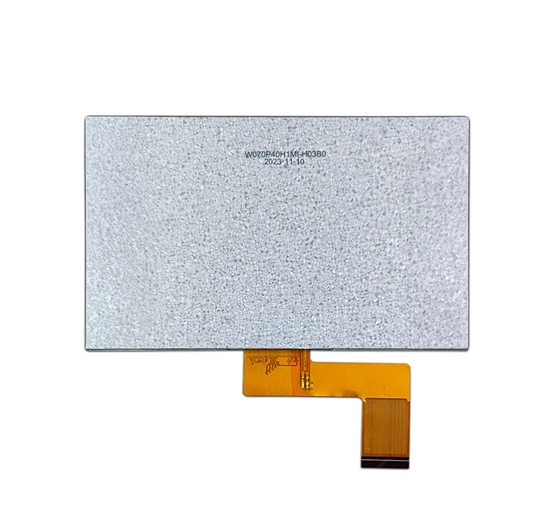

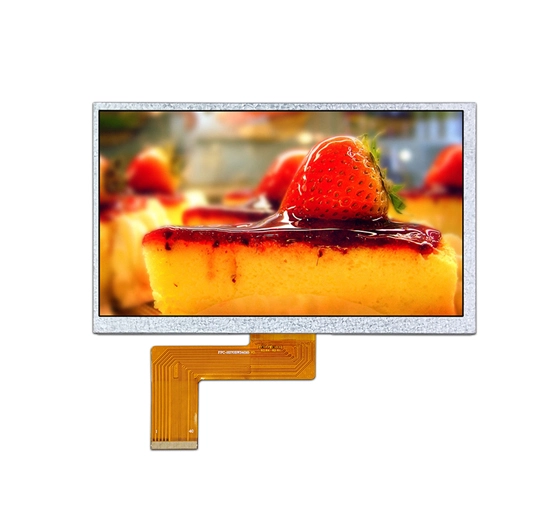

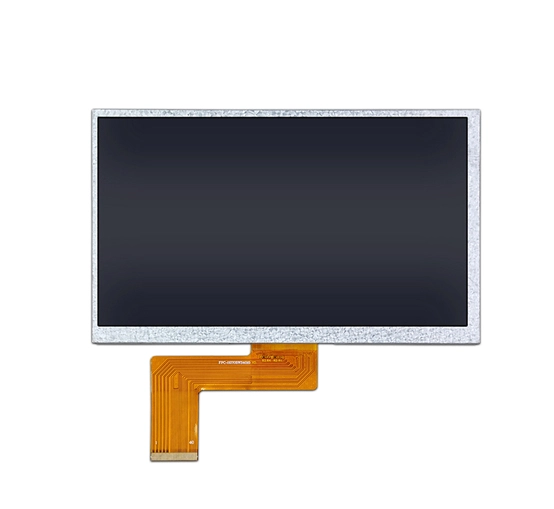

W070P40H1MI-J03B0 7.0 Inch IPS TFT LCD

Name: W070P40H1MI-J03B0 7.0 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

7.0 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 154.21 * 85.92 and the native resolution is 800*480 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 7.0 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
7	1024*600	W070P40H1MI-J03B0	1641033.5	153.6*86.64	IPS	MiPi	260~1500	-20~70°C

Interface Pin Connections of 7.0 Inch IPS TFT LCD

W070P40H1MI-J03B0

No.	ltem	Specification	Unit
1	Panel Size	7”	inch
2	Number of Pixels	1024(H)× 3(RGB)x600 (V)	pixels
3	Active Area	154.2144(H)×85.92(V)	mm
4	Pixel Pitch	0.0502 (H)x0.1432 (V)	mm
5	OutlineDimension	164.9(H)x 100(V) x 3.5(T)	mm
6	Pixel arrangement	RGB vertical stripe	-
7	Display Mode	Normally White	-
8	Viewing Direction	6 o'clock	-
9	Display Color	16.7M	-
10	Luminance(cd/m2)	250(TYP.)	nit
11	Contrast Ratio	800(TYP.)	-
12	Surface Treatment	Anti-Glare	-
13	lnterface	MIPI	-
14	Backlight	White LED	-
15	OperationTemperature	-20-70	℃
16	StorageTemperature	-30-80	℃

General Specifications of 7.0 Inch IPS TFT LCD

W070P40H1MI-J03B0

Feature	Specifications	Unit
Size	7	inch
Technology Type	a-si TFT
Resolution	1024(RGB)x600
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	IPS
Gray Viewing Direction	`
LCM (W x H x D) (mm)	165(W)x100(H)x3.5(T)	mm
Active Area(mm)	154.21 (W) x 85.92(H)	mm
Touch Panel	Support CTP/RTP
Brightness	300~1000	nits
Weight (g)	`	g
Interface	MiPi FPC 40pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

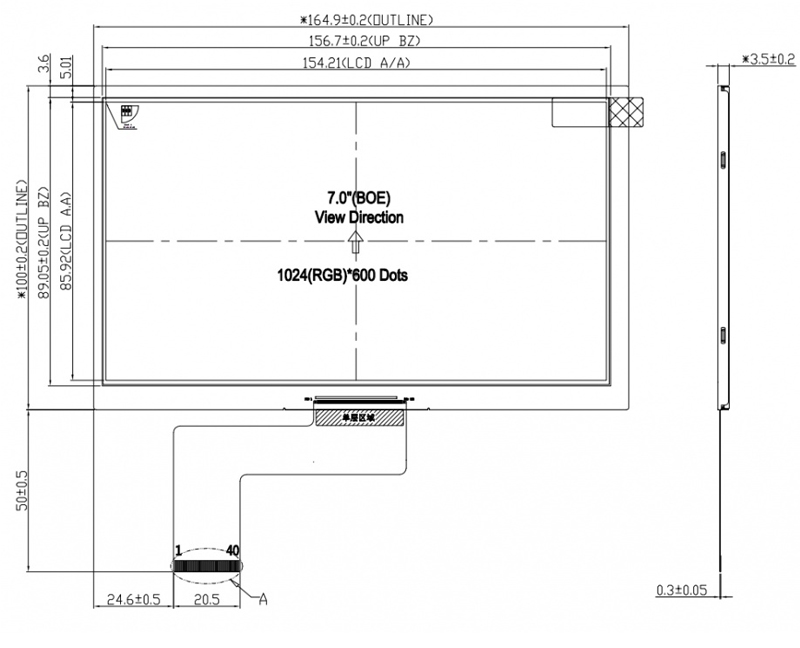

Structural Size of 7.0 Inch IPS TFT LCD

W070P40H1MI-J03B0

7.0 Inch IPS TFT LCD
