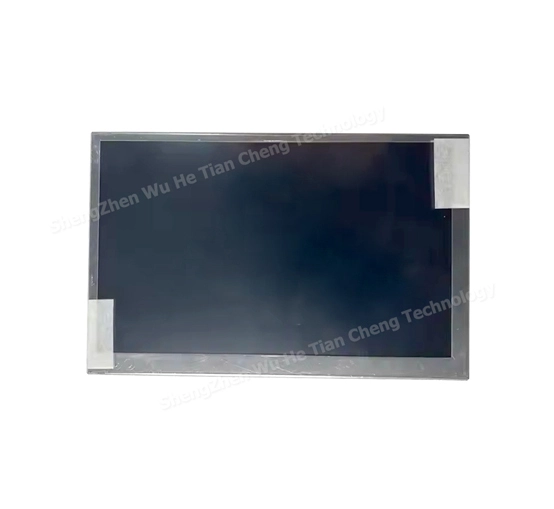

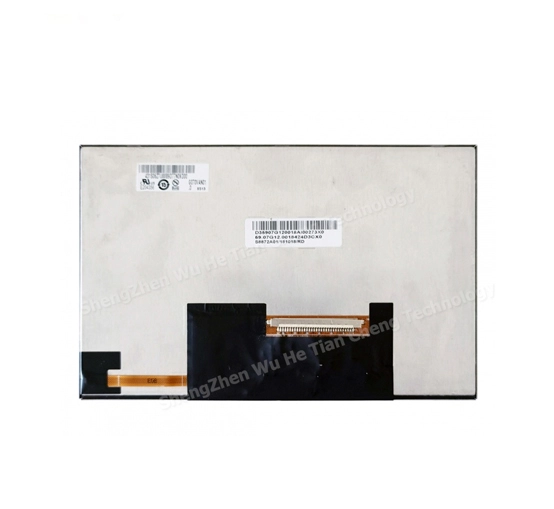

G070VTN01.0 7.0 AUO LCD Panel

Name: G070VTN01.0 7.0 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 7 inch tft lcd panel G070VTN01.0 with 800(RGB)x480 WVGA resolution, brightness 300 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G070VTN01.0 7.0 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
7	800*480	G070VTN01.0	166.610710	152.4*91.44	IPS	LVDS	480	-20~70°C

General Specifications of G070VTN01.0 7.0 AUO LCD Panel

Manufacturer	AUO
Model Name	G070VTN01.0
Screen Size	7 inch
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	152.4 × 91.44 (H×V)
Outline(mm）	170 × 111 × 8.3 (H×V×D)
Bezel Area(mm)	155.2 × 92.84 (H×V)
Treatment	Anti-glare , Hard coating (3H)
Luminance	300 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	65/65/50/60 (CR≥10) Left / Right/UP /Down
Response	12/18(Typ.)(Tr/Td) ms
Work Mode	TN , Normally white , Transmissive
Color Depth	262K/16.2M , 50% NTSC
Backlight	30K hours,withOUT LED Driver
Net Weight	180g (Typ.)
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	+3.3 V (Typ./Max.)
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	AUO Original package;
	60 pcs/ carton;
	weight : 14.4Kgs;
	size : 434(L) x 377(W) x 264(H)mm
