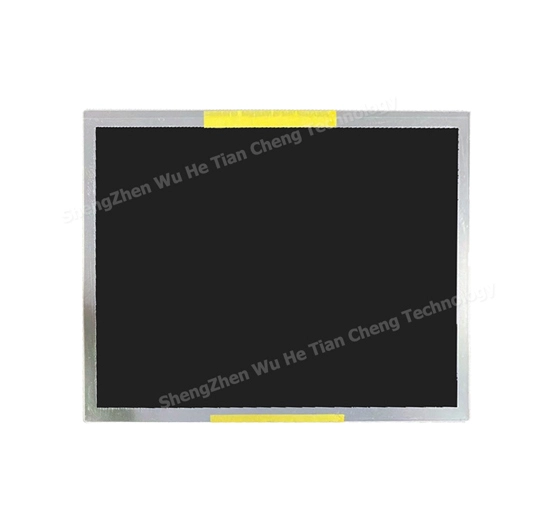

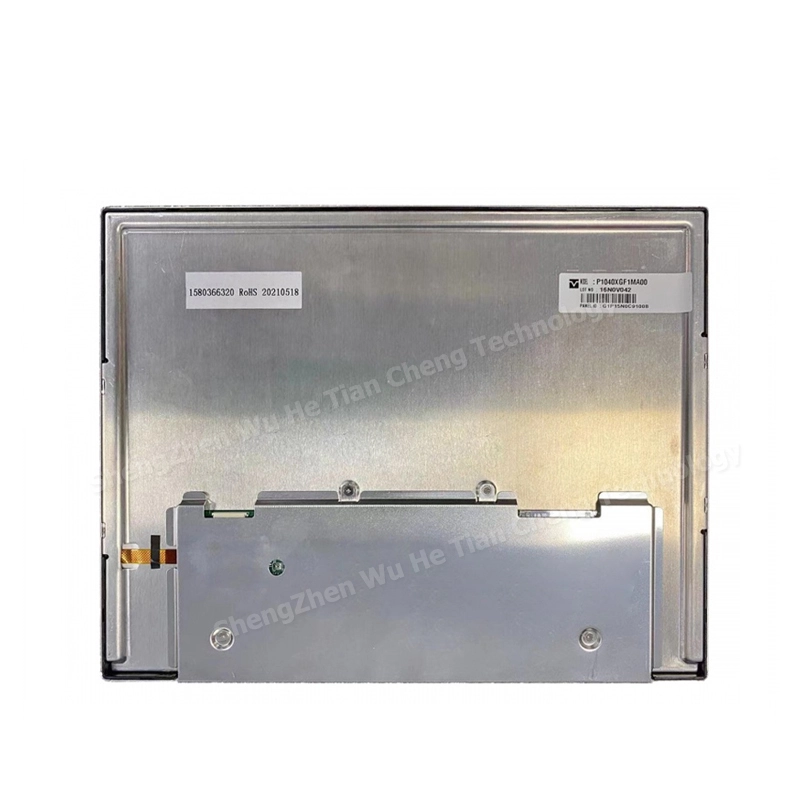

P1040XGF1MA00 10.4 Tianma LCD Panel

Name: P1040XGF1MA00 10.4 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 10.4 inch tft lcd panel P104XGF1MA00 with 1024x768 XGA resolution , brightness 1300 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is -40 ~ +85 (°C).Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of P1040XGF1MA00 10.4 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.4	1024*768	P1040XGF1MA00	230180.29.8	210.432*157.824	IPS	LVDS	1300	-30~80°C

General Specifications of P1040XGF1MA00 10.4 Tianma LCD Panel

Manufacturer	TIANMA
Model Name	P1040XGF1MA00
Screen Size	10.4 INCH
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	210.432 x 157.824 (H×V)
Outline(mm）	230.00 x 180.2 x 9.5 (H×V×D)
Pixel pitch(mm)	0.2055x0.2055 (H×V)
Treatment	Anti-Glare
Luminance	1300 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	85/85/85/85 (Typ.)
Response	35/50 (Typ.)(Tr/Td) ms
Work Mode	SFT , Normally black, Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED, 100K hours,without driver
Net Weight	430g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -40 ~ +85 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	TIANMA Original package;
	18 pcs/ctn;
	weight : 12.64Kgs;
	size : 544(L)mm x 365(W) x 250(H)mm
