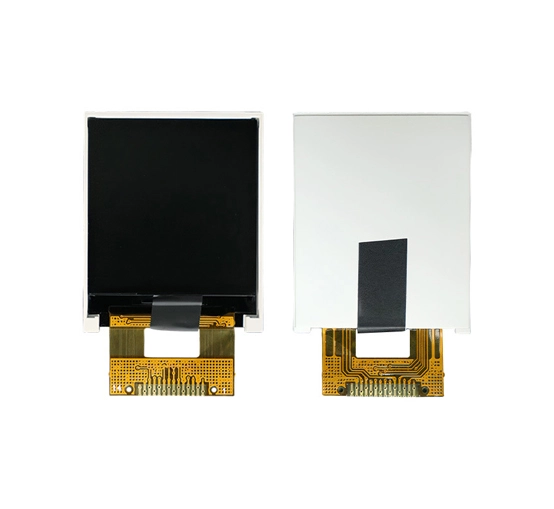

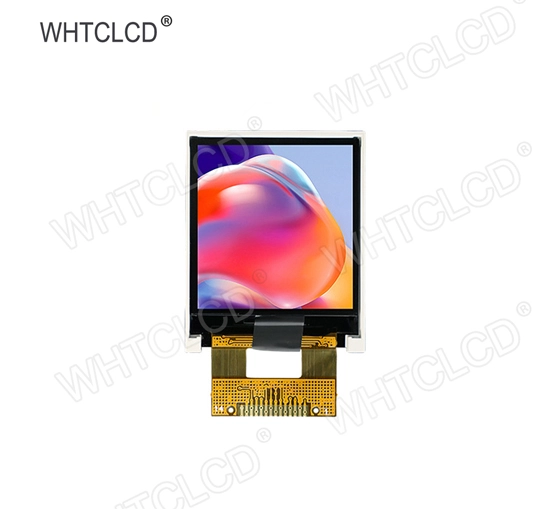

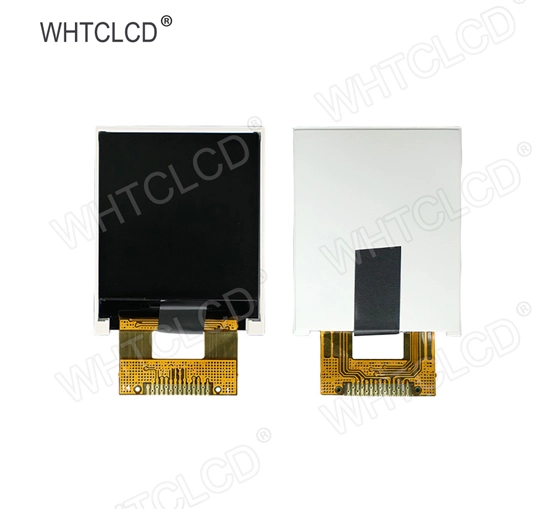

W0144S14S1SN-A02B0 1.44 Inch Square TFT LCD Display

Parameters of 1.44 Inch Square TFT LCD Display

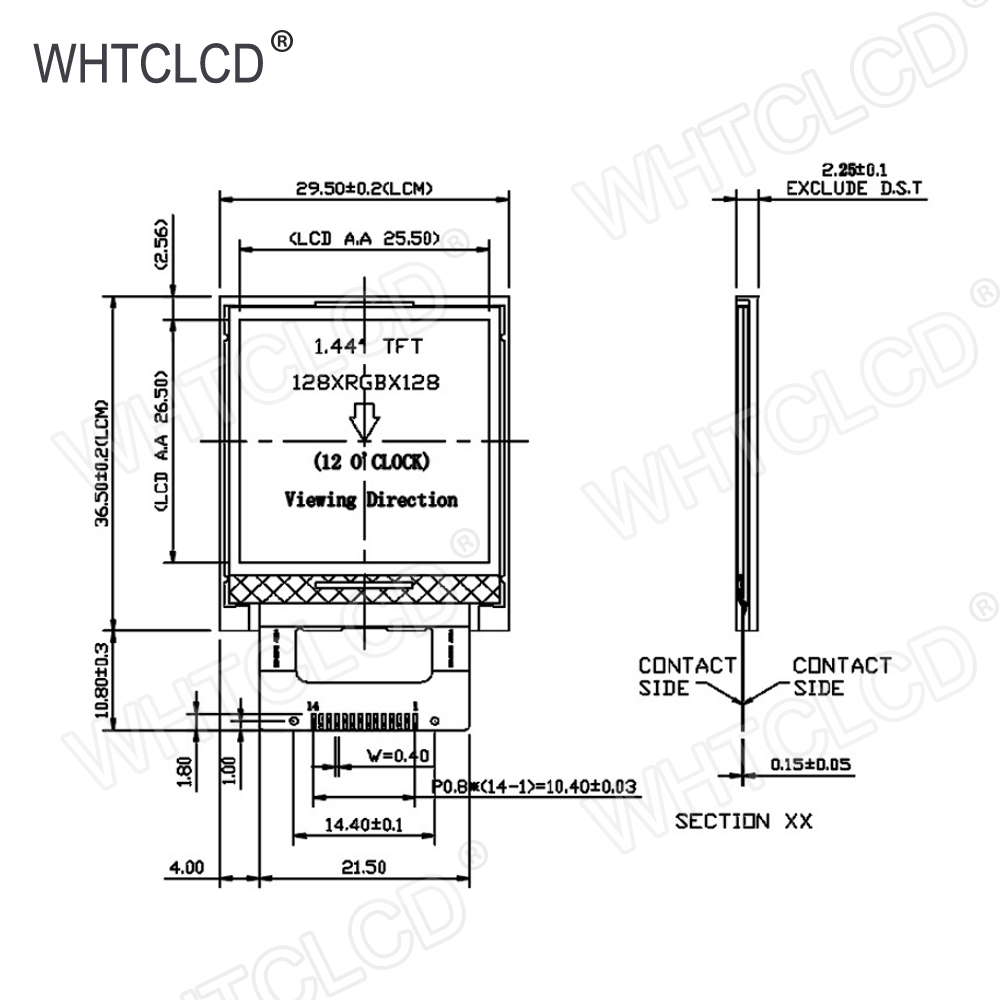

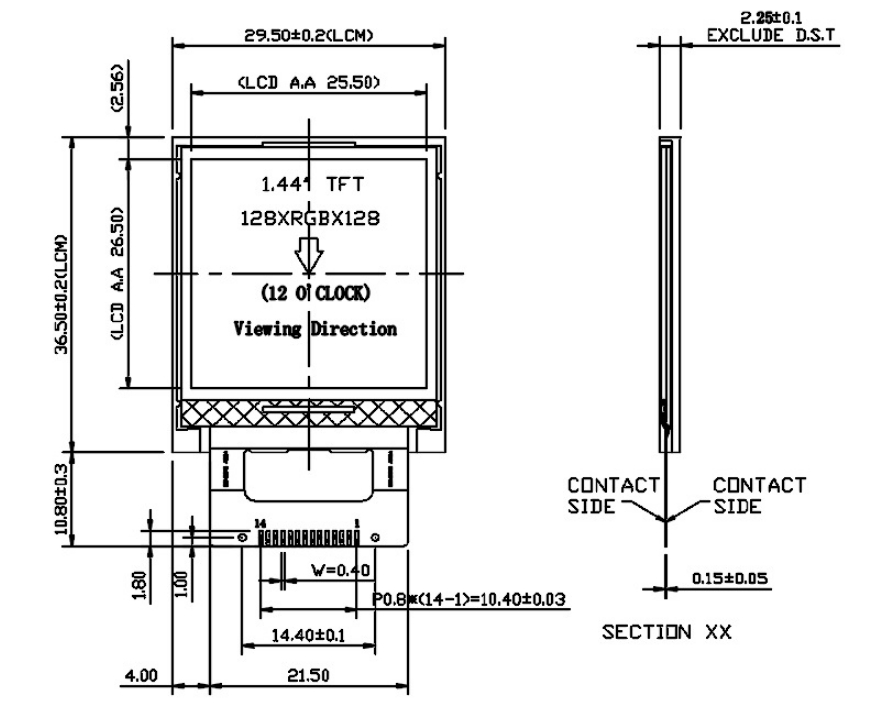

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)
1.44	128*128	W0144S14S1SN-A02B0	29.536.52.25	25.5*26.5	TN	SPI	300	-20~70°C

PIN	SYMBOL	PIN	SYMBOL
1	NC	8	SDA
2	GND	9	SCK
3	LED-	10	VCC
4	LED+	11	IOVCC
5	GND	12	CS
6	RESET	13	GND
7	A0	14	NC

square tft display

square tft
