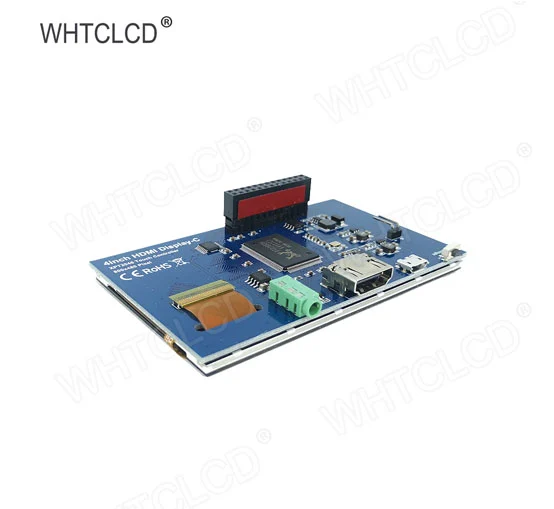

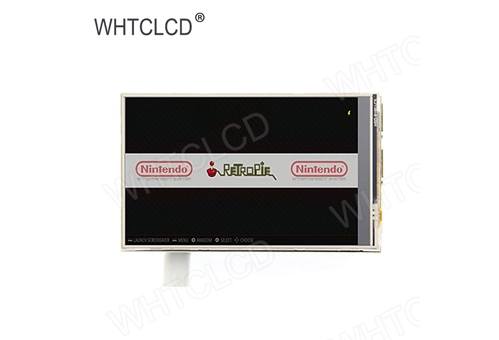

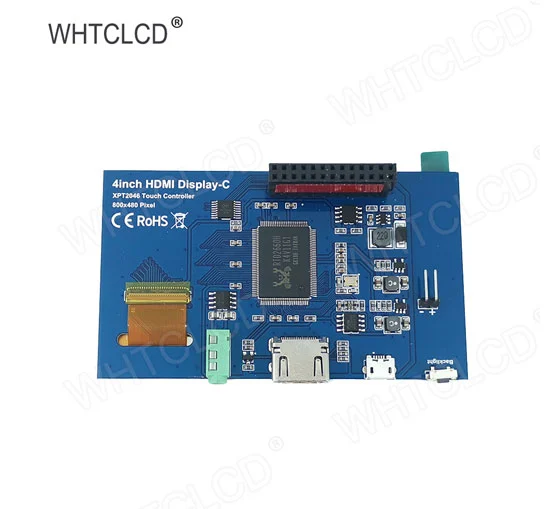

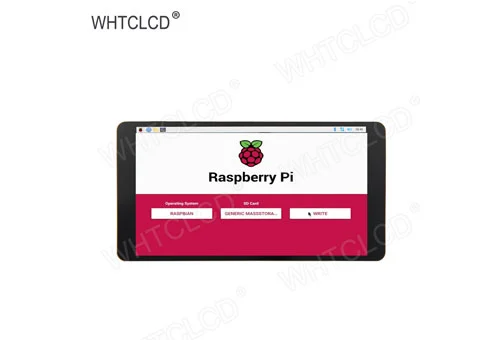

MPI4008 4.0 Inch Raspberry Pi LCD

4.0-inch IPS full-angle display, support HDMI input, refresh rate up to 60FPS. The physical resolution is 800x480. Raspberry Pi monitor with touch control (need to install touch driver). It can be used as standard HDMI output device for computer display(no touch function). Compatible with and can be directly inserted into all versions of raspberry PI motherboards (raspberry PI 1 generation B and Zero need additional HDMI cable). Support HDMI audio output, backlight brightness adjustable

Products

Parameters of 4.0 Inch Raspberry Pi LCD

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch  Panel.
Size  (inch)ResolutionModelViewInterfaceProduct Size  (mm)Active Area   (mm)AudioTouch panelPowerOP(℃)
4800*480MPI4008TNHDMI98.6*58.05*1255.68*83.82EarphoneRTPMicro USB-20~60°C


SKUMPI4008
Screen Size4.0inch
LCD TypeTFT
Module InterfaceHDMI
Resolution800*480 (Pixel)
Active Area51.84x86.40(mm)
Touch Screen ControllerXPT2046
LCD Driver ICNT35510
BacklightLED
power consumption0.16A*5V
Working temperature（℃）-20~60
Module PCB Size98.60*58.05 (mm)
Package Size143*134*51 (mm)
Rough Weight(Package containing) (g)126 (g)

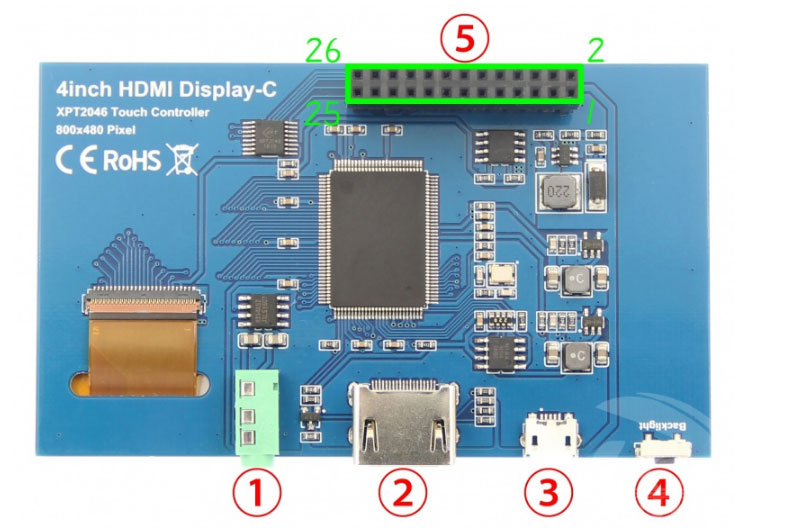

Hardware Description of 4.0 Inch Raspberry Pi LCD


stm32 nucleo board


① 3.5mm Headphone Jack: Output audio signal

② HDMI: Used to connect the main board and LCD display for HDMI transmission

③ Micro USB: Get 5V Power from USB, If ⑤-13*2 Pin Socket has been connected, that this USB interface can be No Connect.

④ Backlight adjustment button: Short press backlight change 10%, long press a few seconds to close backlight; short press to open backlight

⑤ 13*2 Pin Socket: Get +5V Power from raspberry Pi to LCD, at the same time transfer touch signal back to Raspberry Pi.


13*2 Pin Socket interface definition:


PinNameDescription
1、173.3VPower supply  +3.3V
2、45VPower supply  +5V
3、5、7、8、10、11、12、13、15、16、18、24NCNC
6、9、14、20、25GNDGND
19TP_SISPI data input of touch panel
21TP_SOSPI data output of touch panel
22TP_IRQThe touch panel is interrupted and the low level is detected when the touch panel is pressed down
23TP_SCKTouch the SPI clock signal of the panel
26TP_CSTouch panel select signal, low level select touch panel

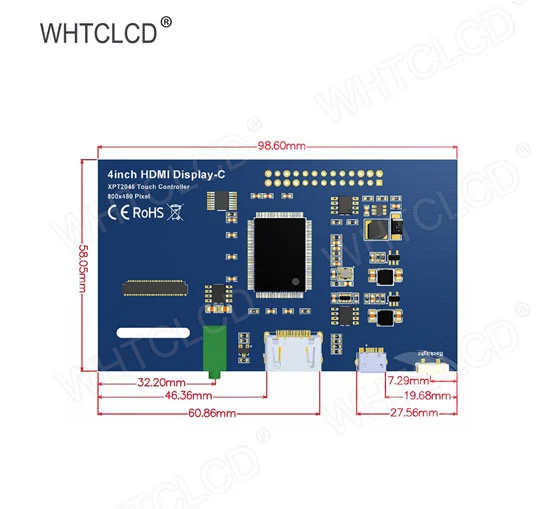

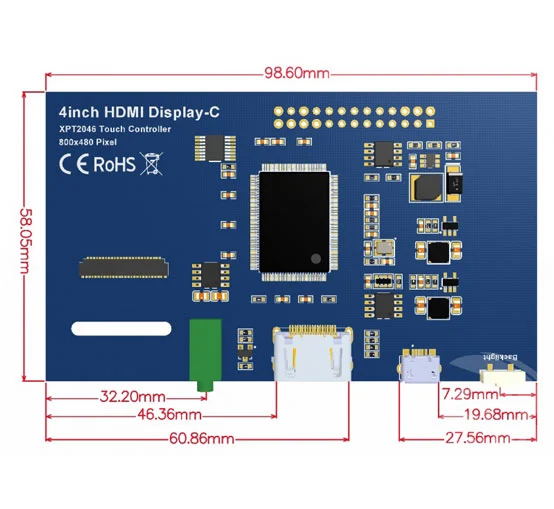

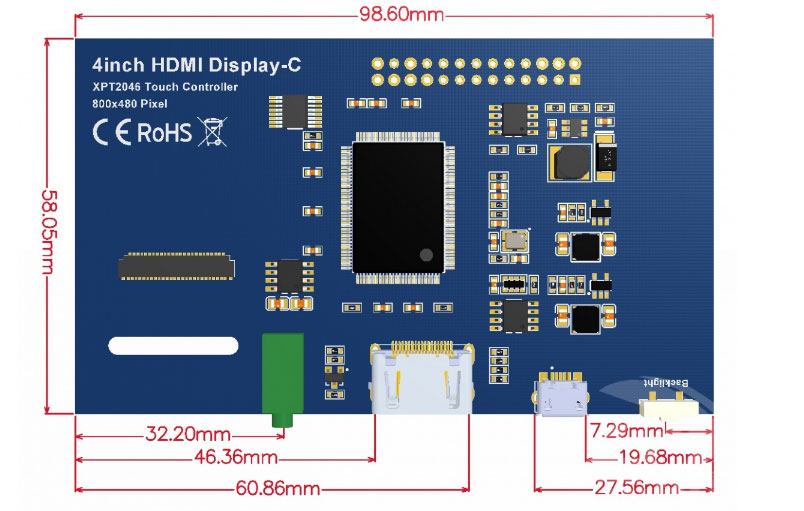

Dimension drawing of 4.0 Inch Raspberry Pi LCD


stm32 nucleo 64 board
