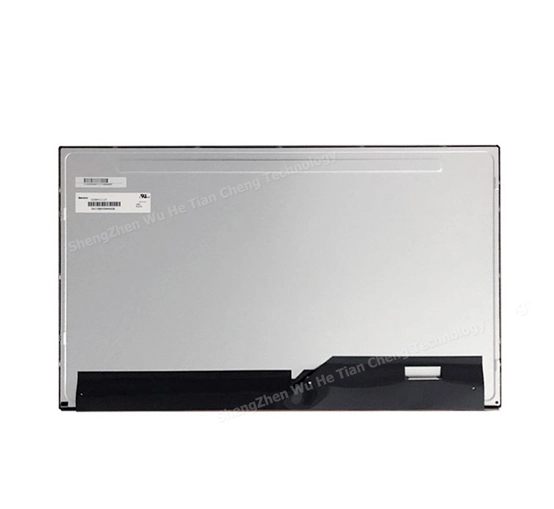

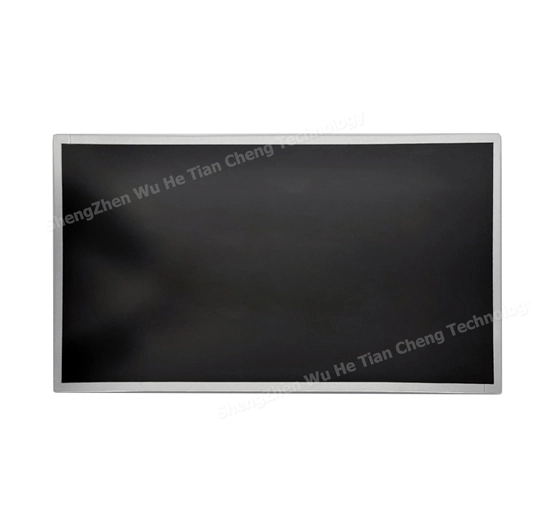

G238HCJ-L01 23.8 Inch INNOLUX LCD Panel

Name: G238HCJ-L01 23.8 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 23.8 inch IPS TFT LCD Panel G238HCJ-L01 with 1920(RGB)x1080 Full HD resolution, brightness 350 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Digital signage.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G238HCJ-L01 23.8 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
23.8	1920*1080	G238HCJ-L01	543317.411.6	527.04*296.46	IPS	LVDS	350	-0~50°C

General Specifications of G238HCJ-L01 23.8 Inch INNOLUX LCD Panel

G238HCJ-L01

Manufacturer	INNOLUX
Model Name	G238HCJ-L01
Screen Size	23.8 inch
Pixel Number	1920(RGB)×1080 , Full HD
Active Area(mm)	527.04×296.46 (H×V)
Outline(mm）	543×317.4×11.6 (H×V×D)
Bezel Area(mm)	530.2×299.6 (H×V)
Treatment	AG type, 3H hard coating, Haze :25%
Luminance	350 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10) Left / Right/UP /Down
Response time	8/7 (Typ.)(Tr/Td) ms
Display Mode	MVA , Normally black , Transmissive
Color Depth	16.7M , 72% NTSC
Backlight	WLED , 30K hours , without Driver
Net Weight	2.51±0.11Kgs
Touchscreen	without
Signal Type/interface Type	LVDS (2 ch, 8-bit) , 30 pins
Voltage Supply	+5.0 V
Max. Ratings	Storage Temp.: -20 ~ +60 (°C)
Max. Ratings	Operating Temp.: 0 ~ +50 (°C)
Package	Innolux Original package
	12 pcs/ctn;
	weight : 30.1Kgs;
	size : 620(L) x 348(W) x 430(H) mm
