MRG4301 4.3 Inch RGB Display Module

Name: MRG4301 4.3 Inch RGB Display Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

4.3-inch color screen, support 24BIT RGB 16.7M color display, display rich colors. Support 800x480, the display effect is very clear. Support 24 bit RGB parallel bus transmission. Compatible with RGB interface connection of punctual atomic development board and wildfire development board. It supports the switching between capacitive touch screen and resistance touch screen, and the capacitive touch screen can support up to 5 touch points. Provides a rich sample program for STM32 platforms. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 4.3 Inch RGB Display Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
4.3	800*480	MRG4301	TN	RGB	105.4186.4110	95.04*53.86	NC	NC	0.08A*5V	-20~60°C

Name	Parameter
Display Color	RGB888 16.7M (compatible with rgb5665k) color
SKU	MRG4301(no touch), MRG4311(have touch)
Screen Size	4.3(inch)
Type	TFT
Driver IC	None
Resolution	800*480 (Pixel)
Module Interface	24Bit RGB parallel interface
Touch Screen Type	Capacitive or Resistive touch screen
Touch IC	FT5426(Capacitive touch), XPT2046(Resistive touch)
Active Area	95.04x53.86(mm)
Module PCB Size	105.41x86.41(mm)
Operating Temperature	-10℃~60℃
Storage Temperature	-20℃~70℃
Input Voltage	5V
IO Voltage	3.3V
Power Consumption	50mA(The backlight is off), 165mA(The backlight is the brightest)
Rough Weight(Net weight)	95(g)

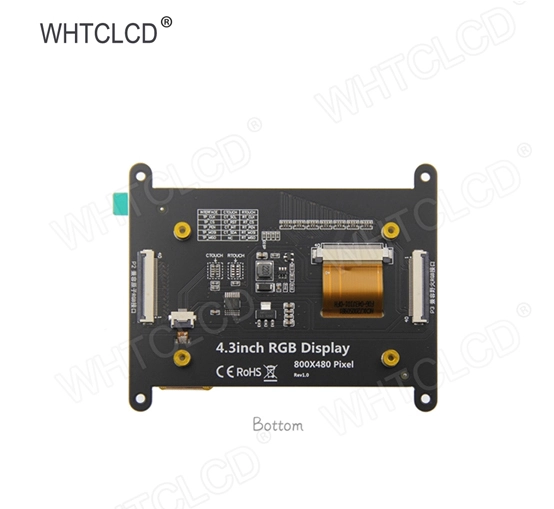

Hardware Description of 4.3 Inch RGB Display Module

7 inch display for raspberry pi 3

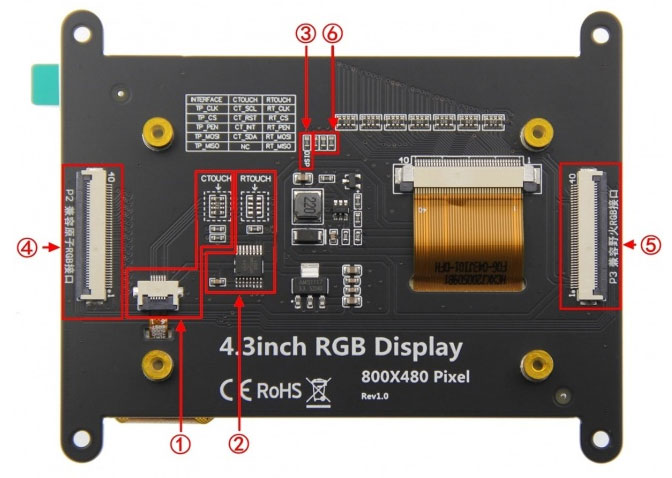

①--Capacitive touch screen circuit

②--Resistance touch screen circuit

③--Disp resistance

④--P2 interface (compatible with atomic RGB interface)

⑤--P3 interface (compatible with wildfire RGB interface)

⑥--Module ID defines resistance (only for atomic program)

1. Switch touch screen

If you choose to connect the capacitive touch screen, please weld the capacitor touch screen circuit;
Select the connection resistance touch screen, please weld the resistance touch screen circuit;
If you often need to switch the touch screen, after welding other circuits, only switch the drain resistance in the dotted line box;

2. Precautions for disp resistance welding

When connecting the wildfire development board for use, the disp resistance must be removed, otherwise the screen will not display after the development board is reset;
When connected to wildfire i When using the MX6ULL ARM Linux development board, you need to remove the DISP resistor and the three resistors in parallel, otherwise the development board will not run.
When connecting atomic development board, f407 minimum system board or esp32 development board, disp resistance must be welded, otherwise the screen will not be displayed.

3. P2 and P3 interface pins are described as follows:

P2 interface (compatible with atomic RGB interface) pin description

Number	Pin name	Description
1	VCC5	Power input pin (connect to 5V)
2	VCC5	Power input pin (connect to 5V)
3~10	R0~R7	8-bit RED data pin
11	GND	power ground pin
12~19	G0 ~ G7	8-bit GREEN data pin
20	GND	power ground pin
21~28	B0 ~ B7	8-bit GREEN data pin
29	GND	power ground pin
30	PCLK	Pixel clock control pin
31	VSYNC	Vertical synchronous signal control pin
32	HSYNC	Horizontal synchronous signal control pin
33	DE	Data enable signal control pin
34	BL	LCD backlight control pin
35	TP_CS	Capacitor touch screen reset pin (resistance touch screen chip selection pin)
36	TP_MOSI	Data pin of IIC bus of capacitance touch screen (write data pin of SPI bus of resistance touch screen)
37	TP_MISO	Resistance touch screen SPI bus read data pin (capacitance touch screen not used)
38	TP_CLK	IIC bus clock control pin of capacitive touch screen (SPI bus clock control pin of resistance touch screen)
39	TP_PEN	Touch screen interrupt control pin (low level when touch is generated)
40	RST	LCD reset control pin (effective at low level)

P3 interface (compatible with wildfire RGB interface) pin description

Number	Pin name	Description
1	VCC5	Power input pin (connect to 5V)
2	VCC5	Power input pin (connect to 5V)
3	VCC3.3	Power input pin (connect to 3.3V)
4	VCC3.3	Power input pin (connect to 3.3V)
5	GND	power ground pin
6~13	R0 ~ R7	8-bit RED data pin
14~21	G0 ~ G7	8-bit GREEN data pin
22~29	B0 ~ B7	8-bit BLUE data pin
30	PCLK	Pixel clock control pin
31	HSYNC	Horizontal synchronous signal control pin
32	VSYNC	Vertical synchronous signal control pin
33	DE	Data enable signal control pin
34	DISP	LCD display enable pin (enable at high level)
35	BL	LCD backlight control pin
36	GND	power ground pin
37	TP_RST	Capacitor touch screen reset pin (enable at low level)
38	TP_PEN	Touch screen interrupt control pin (low level when touch is generated)
39	TP_SDA	Data pin of IIC bus of capacitance touch screen
40	TP_SCL	IIC bus clock control pin of capacitive touch screen

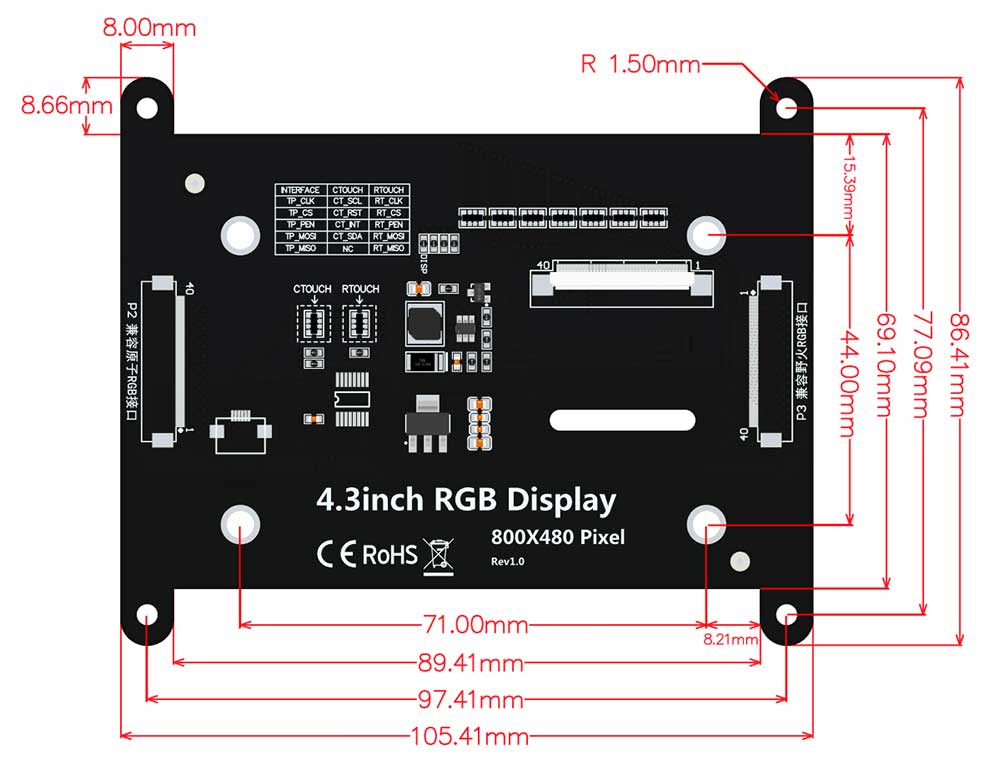

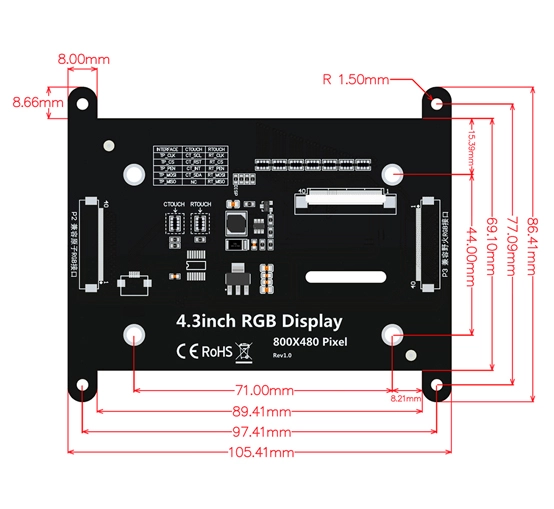

Product Size of 4.3 Inch RGB Display Module

7 inch display for raspberry pi 4
