AT043TN24 V.7 4.3 Inch INNOLUX LCD Panel

Name: AT043TN24 V.7 4.3 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 4.3 inch tft lcd panel AT043TN24 V.7 with 480(RGB)x272 VGA resolution, brightness 500 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

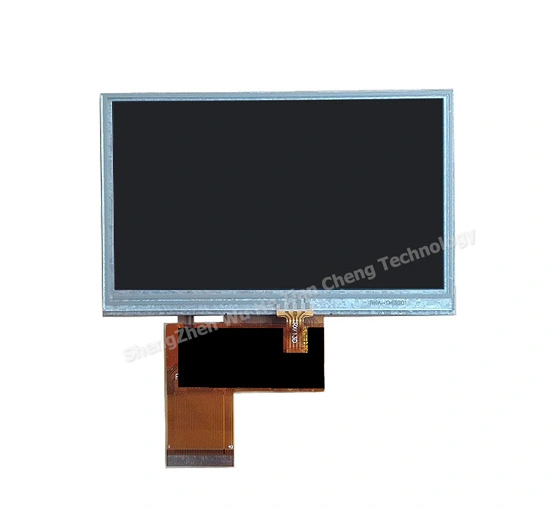

Original Innolux 4.3 Inch 480x272 WQVGA TFT LCD Screen RGB LCD Module AT043TN24 V.7 with 4-wire resistance touch screen And Controller board.

Products

Parameters of 4.3 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
4.3	480*272	AT043TN24 V.7	105.567.23.1	95.04*53.856	TN	RGB	500	-20~70°C

General Specifications of 4.3 Inch INNOLUX LCD Panel

AT043TN24 V.7

Manufacturer	Innolux
Model Name	AT043TN25 V.2
Screen Size	4.3 inch
Pixel Number	480(RGB)×272 , WQVGA
Active Area(mm)	95.04(W) x 53.856(H)
Outline(mm）	105.5(W) x 67.2(H) x 4.05(D)
Treatment	Anti-glare
Luminance	500 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (Typ.)(CR≥10)
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white, Transmissive
Color Depth	16.7M, 50% NTSC
Backlight	WLED, 20K hours, whitout driver
Net Weight	59.0g (Typ.)
Touchscreen	4-wire resistance touch screen
Signal Type/interface Type	Parallel RGB (1 ch, 8-bit) , FPC , 40 pins
Voltage Supply	+3.3 V (Typ.)
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	Innolux original package;
Package	160 pcs/carton;
