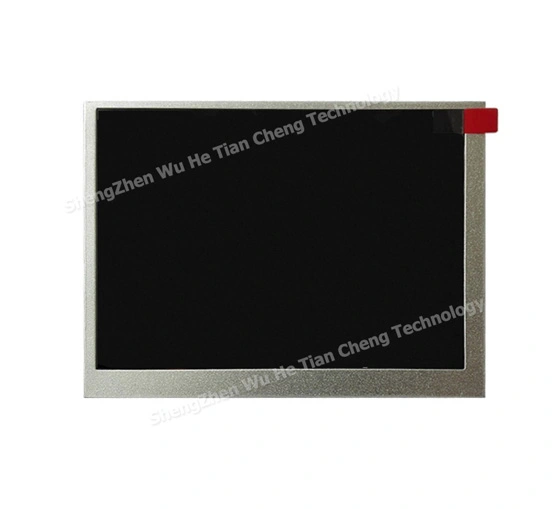

AT056TN53 V.1 5.6 Inch INNOLUX LCD Panel

Name: AT056TN53 V.1 5.6 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 5.6 inch tft lcd panel AT056TN53 V.1 with 640(RGB)x 480 VGA resolution, brightness 350 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

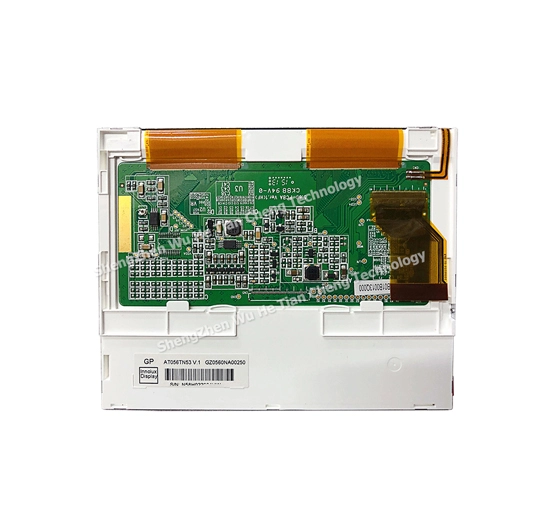

Original 5.6 Inch 640x480 VGA Innolux TFT LCD Screen RGB LCD Panel AT056TN53 V.1 With 350nits, FPC 40pins And Controller board.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of AT056TN53 V.1 5.6 Inch INNOLUX LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
5.6	640*480	AT056TN53 V.1	126.51006	112.896*84.672	TN	RGB	500	-20~70°C

General Specifications of AT056TN53 V.1 5.6 Inch INNOLUX LCD Panel

Manufacturer	INNOLUX
Model Name	AT056TN53 V.1
Screen Size	5.6 inch
Pixel Number	640(RGB)×480 , VGA
Active Area(mm)	112.896 x 64.672 (H×V)
Outline(mm）	126.5 x 100 x 5.7 (H×V×D)
Pixel Pitch(mm)	0.0588 x 0.1764 (W×V)
Treatment	Anti-Glare
Luminance	350 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70(CR≥10) Left / Right/UP /Down
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	262K , 50% NTSC
Backlight	WLED , 20K hours, with LED Driver
Net Weight	83.1g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6-bit) , FPC , 40 pins
Voltage Supply	+3.3V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	Innolux original package;
