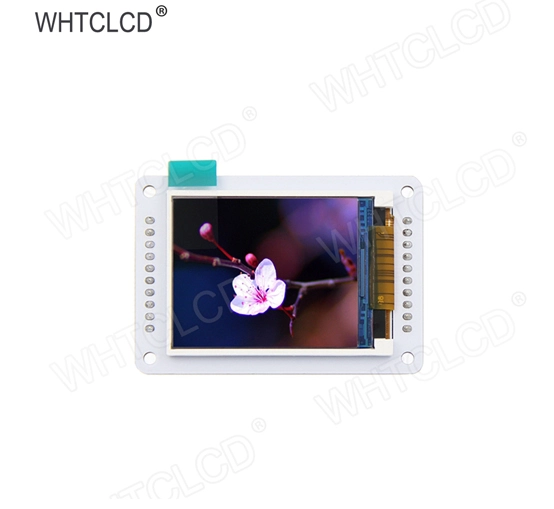

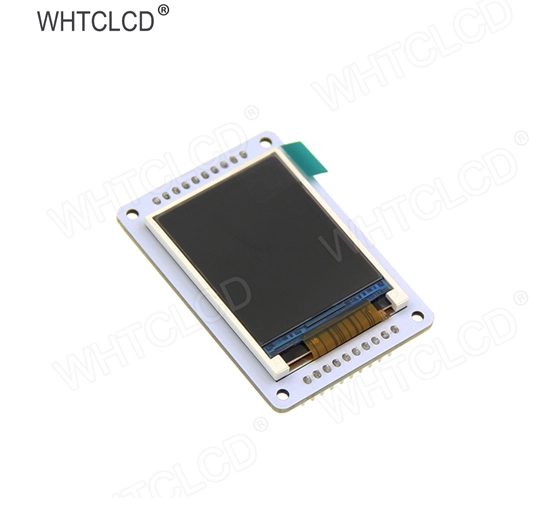

MSP1805 1.8 Inch SPI Disaply LCD Module

Name: MSP1805 1.8 Inch SPI Disaply LCD Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

1.8-inch color screen, support 65K color display, display rich colors. 128X160 resolution, clear display. Using the SPI serial bus, it only takes a few IOs to illuminate the display. With SD card slot for convenient function expansion. Support in-line Arduino esplora game controller. Provide underlying libraries and rich sample programs for Arduino, C51, and STM32 platforms. Military-grade process standards, long-term stable work. Provide underlying driver technical support.

Products

Parameters of 1.8 Inch SPI Disaply LCD Module(MSP1805)

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
1.8	128*160	MSP1805	TN	SPI	59.7942.016	28.03*35.04	NC	NC	5V/3.3V	-20~60°C

Name	Parameter
Display Color	16BIT RGB 65K color
SKU	MAR1805
Screen Size	1.8(inch)
Type	TFT
Driver IC	ST7735
Resolution	128*160 (Pixel)
Module Interface	4-wire SPI interface
Backlight	2 White Led
Active Area	28.03*35.04 (mm)
Module PCB Size	59.79*42.01 (mm)
Operating Temperature	-20℃~60℃
Storage Temperature	-30℃~70℃
Operating Voltage	5V/3.3V
Power Consumption	TBD
Rough Weight(Package containing)	25 (g)

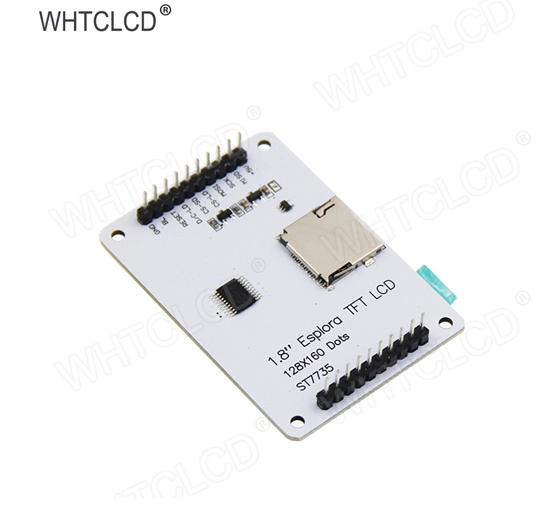

Hardware Description of 1.8 Inch SPI Disaply LCD Module(MSP1805)

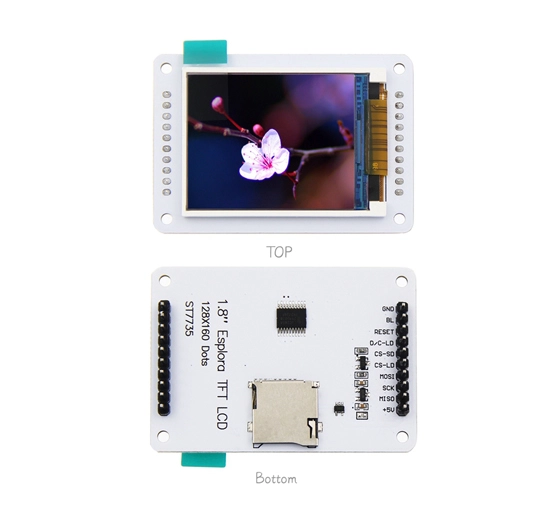

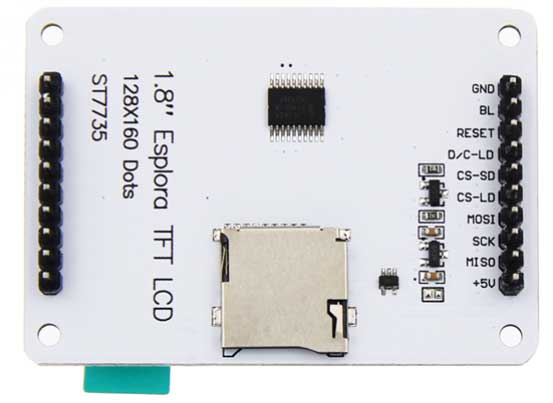

arduino uno to lcd display

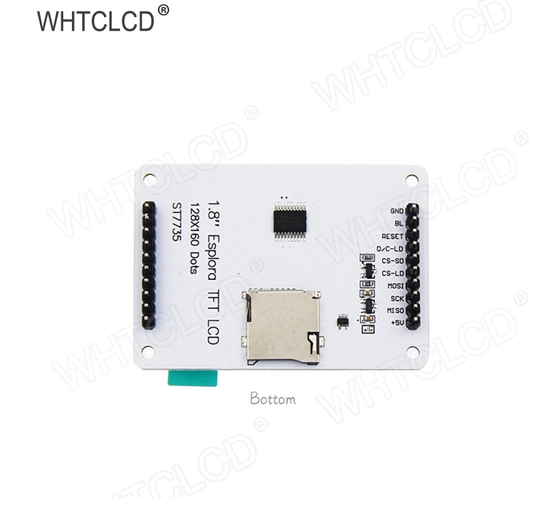

Number	Pin Label	Description
1	GND	LCD Power ground pin pin
2	BL	LCD backlight control pin (high level light, can be connected to 3.3V)
3	RESET	LCD reset control pin (reset at low level)
4	D/C-LD	LCD data/command selection control pin (low level: command; high level: data)
5	CS-SD	SD card select control pin (low level enable, required when using SD card function)
6	CS-LD	LCD chip select control pin (enabled at low level)
7	MOSI	LCD SPI bus write data pin
8	SCK	LCD SPI bus clock pin
9	MISO	SPI bus read data pin (required when using SD card function)
10	+5V	LCD power supply positive pin

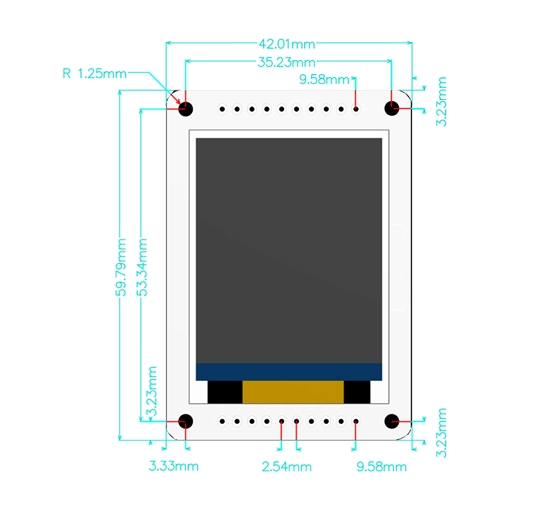

Product Size of 1.8 Inch SPI Disaply LCD Module(MSP1805)

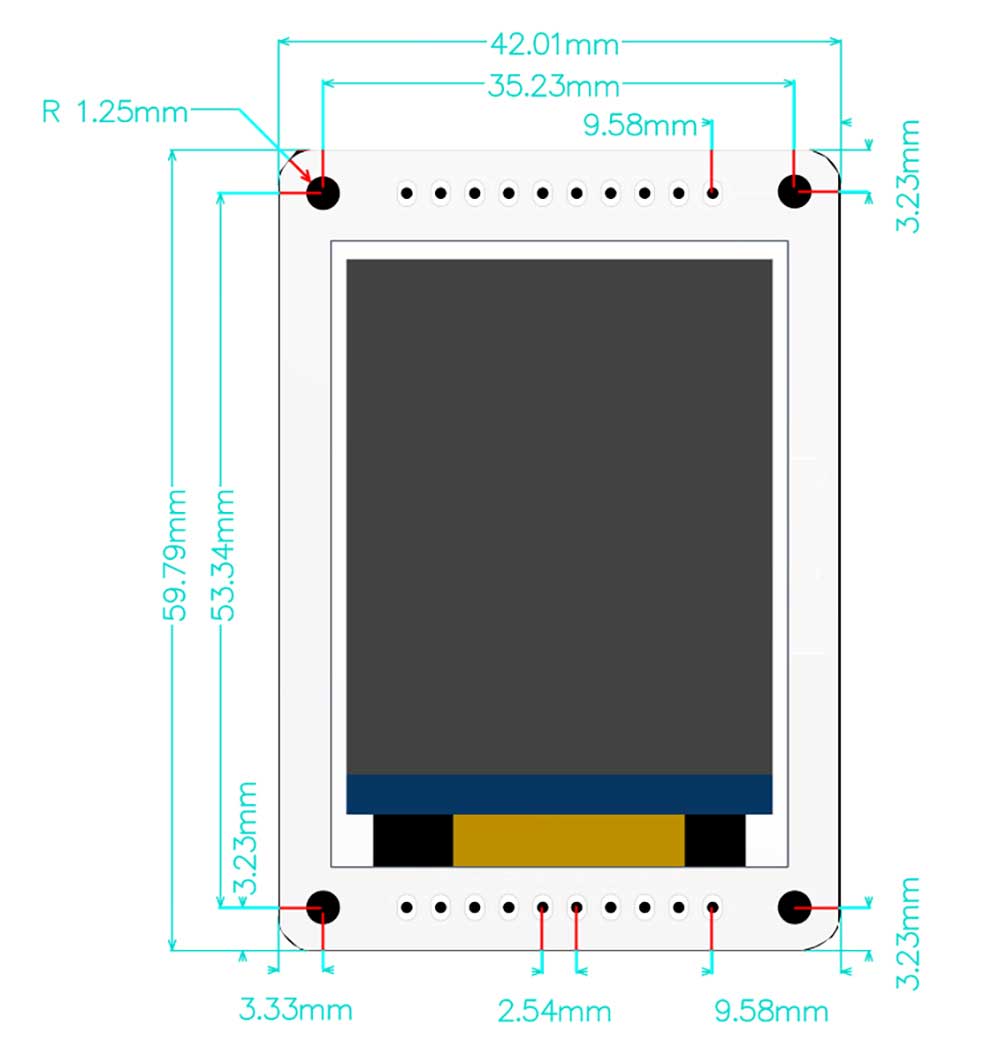

arduino using lcd display
