MSP0962 0.96 Inch SPI Disaply LCD Module

Name: MSP0962 0.96 Inch SPI Disaply LCD Module
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

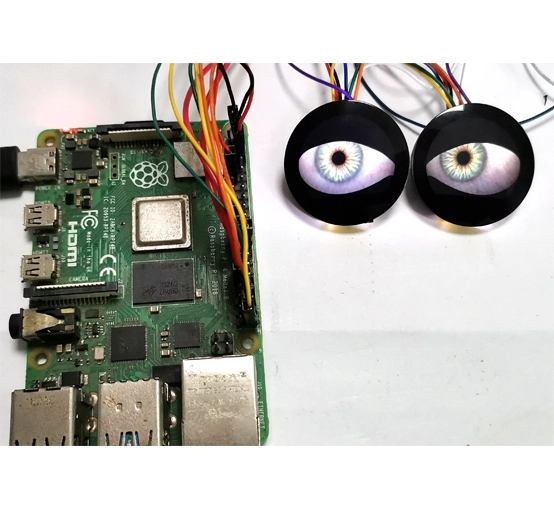

0.96inch color screen with 240x198 resolution of 65K colors and rich display colors. The upgrade adopts IPS full view panel, with good visual angle. On board level conversion circuit, compatible with 5V and 3.3V MCU. Adopting a 4-wire SPI serial bus to save I/O pins. Modules can be selected with or without glass cover plates. Unique circular display screen. Module input supports slot interfaces with a spacing of 1.25mm. Provide rich example learning programs (ESP32/STM32/Arduino UNO&Mage2560/C51/CH32/RaspberryPi). Provide low-level driver technical support, and update WIKI information online. Multiple tests for module aging can meet military level standards, supporting long-term stable work.

Products

Parameters of 0.96 Inch SPI Disaply LCD Module

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
0.96	240*198	MSP0962	IPS	SPI	29.7328.146	24.408*20.137	NC	NC / RTP	5V/3.3V	-20~60°C

Name	Parameter
LCD Parameters
Screen Size	0 96inch
Screen Type	IPS
Resolution	240xRGBx198(pixels)
Active Area (AA area)	24.408(W)x20.137(H)(mm)
Number of Colors(Max)	65K
Driver IC	ST7789H2
Display Interface	4-Line SPI
Pixel Size	0.1017(H)x0.1017(V)(mm)
View Angle	ALL 0’CLOCK
Brightness(TYP)	300(cd/m2)
Backlight Type	White LED*2
Operation Temperature	-10~60(℃)
Storage Temperature	-20~70(℃)
Size Parameters
TFT Outline Size	27.4±0.2(W)x27.0±0.2(H)x1.31±0.15(D)(mm)(Excluding adhesive backing)
Module Outline Size	NO Glass Cover Plate: 29.73(W)x28.14(H)x6.66(D)(mm)(Including positioning columns) Have Glass Cover Plate: 31.88(W)x31.88(H)x9.65(D)(mm)(Including positioning columns)
Electrical Parameters
Working Voltage	5.0 V/3.3V
Backlight Current	40 mA
Power	0.09 W
Other Parameters
SKU	NO Glass Cover Plate: MSP0962 Have Glass Cover Plate: MSP0963
Interface	8P 1.25mm slot interface
Weight(including package)	MSP0962: 21g MSP0963: 25g

Hardware Description of 0.96 Inch SPI Disaply LCD Module

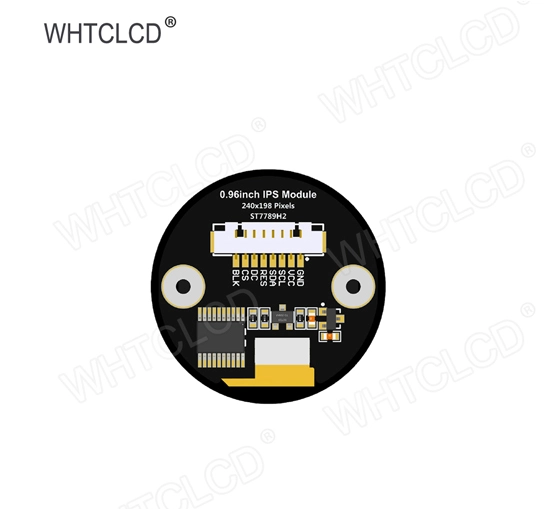

arduino lcd display project

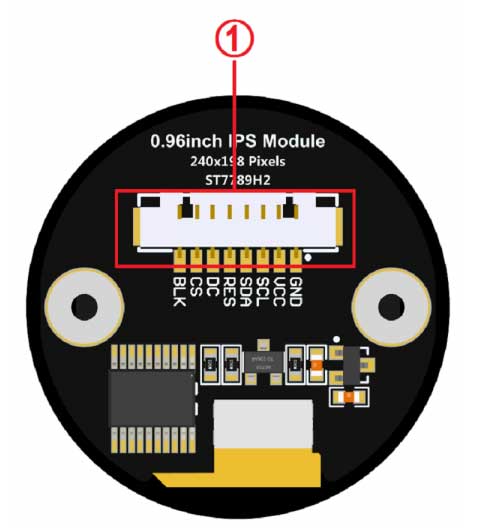

Interface Function Description

Number	Interface	Function Description
①	8P slot	1.25mm spacing slot, module signal input pins

Pin Function Description

Number	Pin Label	Description
1	GNDVCC	LCD Power ground
2	VCC	LCD power positive(It is recommended to connect to 5V. When connected to 3.3V, the backlight brightness will be slightly dim)
3	CL	LCD SPI bus clock signal
4	SDA	LCD SPI bus write data signal
5	RES	LCD reset control signal, Low level reset
6	DC	LCD command/data selection control signal High level: data, low level: command
7	CS	LCD selection control signal, Low level active
8	BLK	LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it)

Product Size of 0.96 Inch SPI Disaply LCD Module

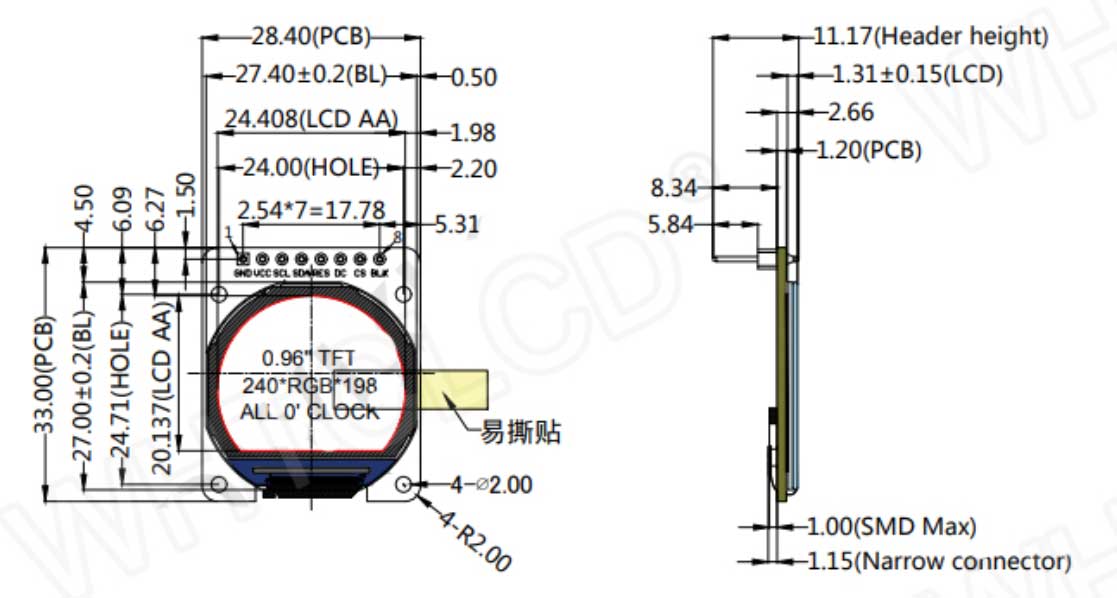

arduino lcd display serial monitor
