W080P50S4RN-J05I0 8.0 Inch TN TFT LCD

Name: W080P50S4RN-J05I0 8.0 Inch TN TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

8.0 Inch TN TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 176.64 * 99.36 and the native resolution is 800*480 and can display up to 262K/16.7M colors, Applications: wire tester, sphygmomanometer, ECG machine, Robots,Handheld devices, Automotive instrument, recorder and industrial display.

Products

Parameters of 8.0 Inch TN TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
8	800*600	W080P50S4RN-J05I0	1831415.6	162*121.5	TN	RGB	500	-30~80°C

General Specifications of 8.0 Inch TN TFT LCD

W080P50S4RN-J05I0

Feature	Specifications	Unit
Size	8	inch
Technology Type	a-si TFT
Resolution	800(RGB)x600
Pixel pitch	~	mm
Pixel arrangement	RGB-stripe
Color Depth	262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	~
Surface Treatment	`
Viewing Direction	TN
Gray Viewing Direction	`
LCM (W x H x D) (mm)	183(W)x141(H)x6.3(T)	mm
Active Area(mm)	162 (W) x 121.5(H)	mm
Touch Panel	Support CTP/RTP
Brightness	300~1000	nits
Weight (g)	`	g
Interface	RGB TTL FPC 50pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

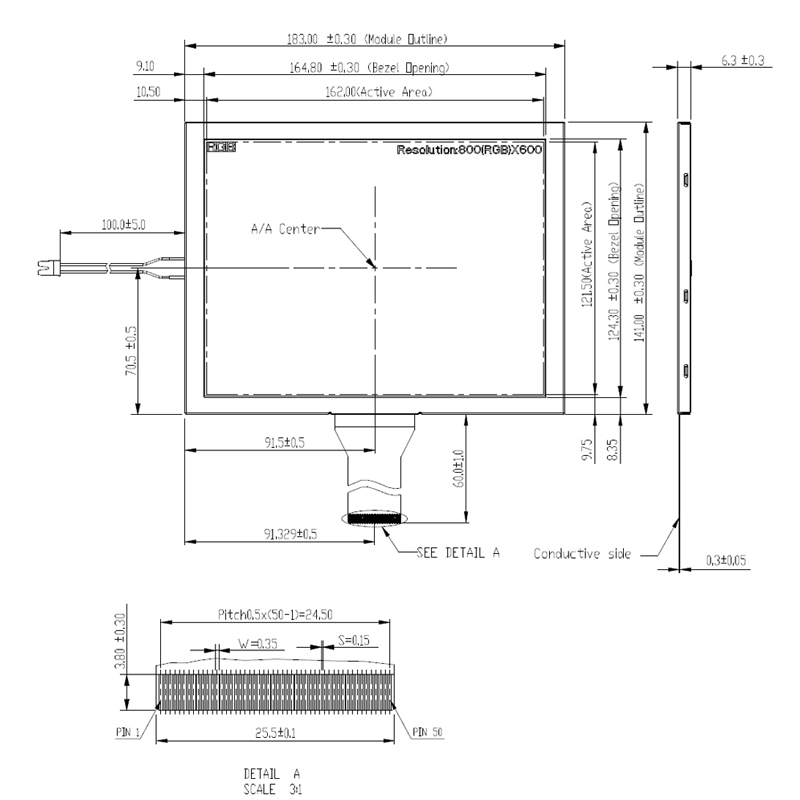

Structural Size of 8.0 Inch TN TFT LCD

W080P50S4RN-J05I0

8.0 Inch TN TFT LCD
