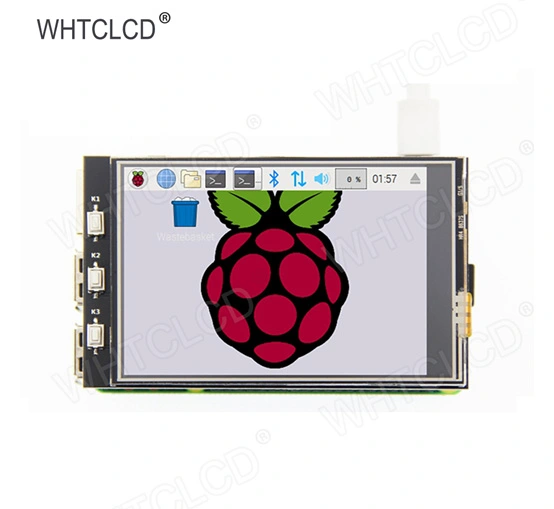

MHS3232 3.2 Raspberry Pi MHS LCD Display

Name: MHS3232 3.2 Raspberry Pi MHS LCD Display
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Physical resolution 320 x 480, with resistive touch control. It supports up to 125MHz SPI signal input, showing stable no screen and no flicker. With the Raspberry Pi, the refresh rate is about 60FPS, playing video games is no problem. Support FBCP software driver, support dual screen display, can be adjusted by software to adjust the resolution. Same size as the Raspberry Pi, perfectly compatible and can be directly inserted into any version of the Raspberry Pi (Raspberry Pi ZeroW, A, A+, B, B+, 2B, 3B, 3B+). Support for Raspbian/Ubuntu/Kali/Retropie systems, providing drivers and mirroring. This product has passed CE and RoHS certification.

Products

Parameters of 3.2 Raspberry Pi MHS LCD Display

Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
3.2	240*320	MHS3232	TN	SPI	84.9156.546	48.6*64.8	NC	RTP	0.16*5V	-20~60°C

Name	Description
SKU	MHS3232
Screen Size	3.2inch
LCD Type	TFT
Module Interface	SPI (upports up to 125MHz SPI input)
Resolution	320*240 (Pixel)
Touch Screen Controller	XPT2046
LCD Driver IC	ILI9341
Backlight	LED
Power Consumption	0.16A*5V
Operating Temperature（℃）	-20~60
Active Area	48.6*64.8(mm)
Module PCB Size	84.91*56.54 (mm)
Package Size	1187234 (mm)
Rough Weight(Package containing)(g)	73(g)

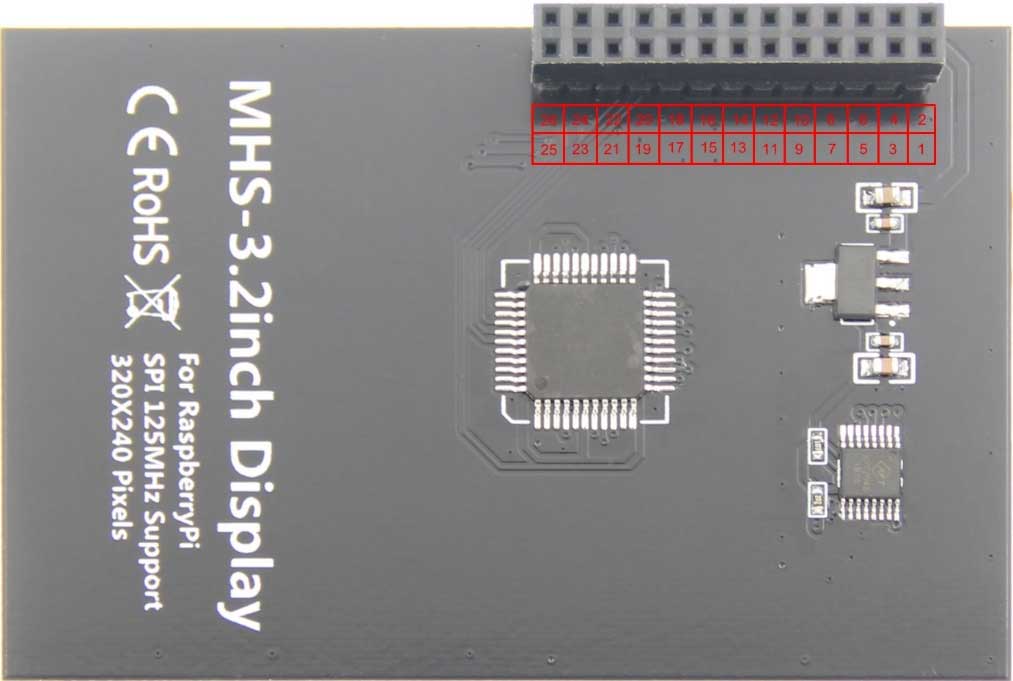

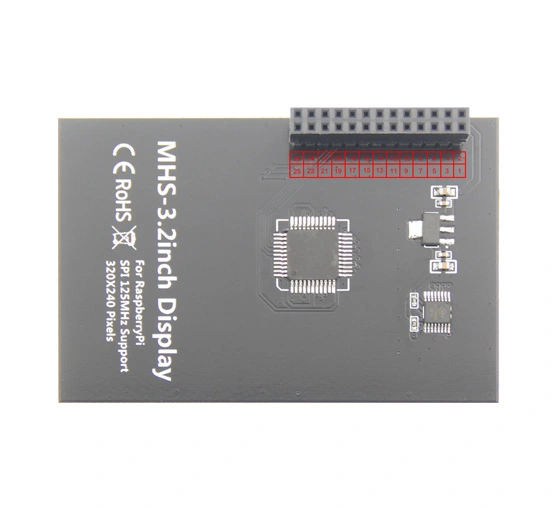

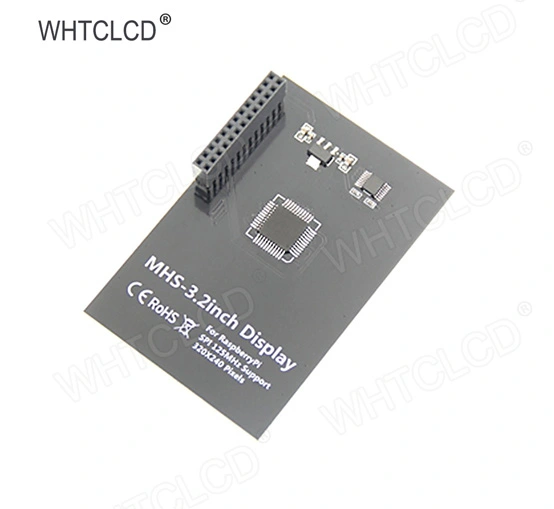

Hardware Description of 3.2 Raspberry Pi MHS LCD Display

transparent touch screen

Pin Number	Identification	Description
1, 17	3.3V	Power supply (3.3V power input)
2, 4	5V	Power supply (5V power input)
3, 5, 7, 8, 10,22	NC	Not connected
6, 9, 14, 20, 25	GND	Power ground
11	TP_IRQ	The touch panel is interrupted, and it is detected that the touch panel is pressed low.
15	LCD_RS	Instruction/data register selection, low level is instruction, high level is data
19	LCD_SI / TP_SI	LCD display / touch panel SPI data input
21	TP_SO	Touch panel SPI data output
13	RST	Reset signal, low reset
23	LCD_SCK / TP_SCK	LCD display / touch panel SPI clock signal
24	LCD_CS	LCD chip select signal, low level enable
26	TP_CS	Touch panel chip select signal, low level enable
12	KEY1	Button 1
16	KEY2	Button 2
18	KEY3	Button 3

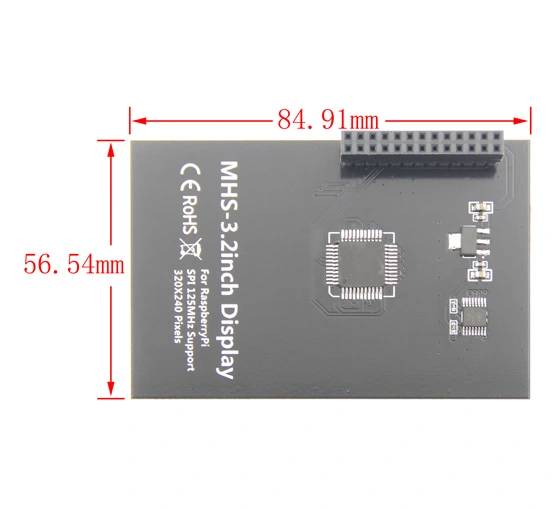

Product Size of 3.2 Raspberry Pi MHS LCD Display

ubuntu touchscreen
