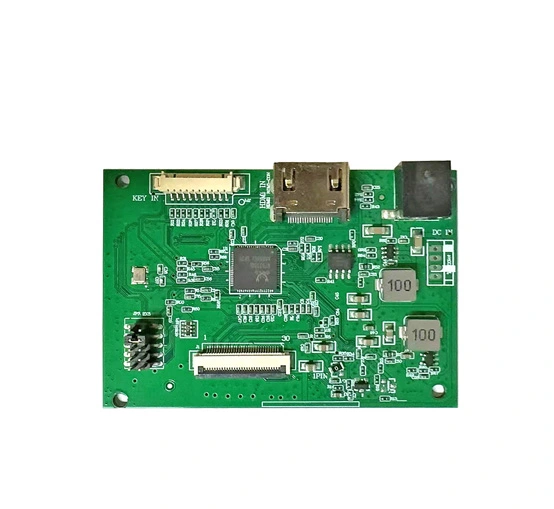

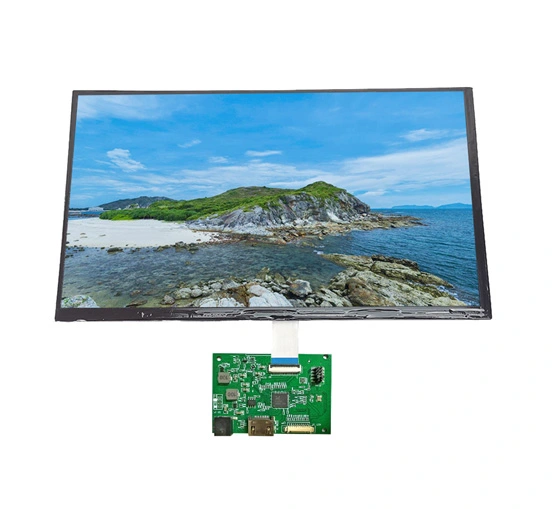

PCB800807 EDP LCD Controller Board

Parameters of PCB800807 EDP LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
2	PCB800807	HDMI Signal input; Supports multiple resolutions, Supports 10.1~15.6 inch LCD screen	EDP 30pin	NO	DC+5V~20V

General Specifications of PCB800807 EDP LCD Controller Board

Universal driver board + high brightness backlight series

LCD driver board specifications

Product name PCB800807 driver board

Supplier: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Function:

1. One HDMI signal input, and this IC supports HDMI 1.4

2. Supports wide voltage input and can operate normally between 5V and 20V, but the voltage requirements of external devices need to be considered to avoid damaging externally connected devices or accessories. This operating voltage is only applicable to this driver board

3. Standard EDP-30pin output, supporting resolutions below 1920 * 1200

4. Supports HDMI upgrade or 4P standard IIC upgrade

5. Standard HDMI large mouth universal connector

6. Using high-temperature resistant components, it can be used in high-temperature environments for a long time, but ventilation should be taken into account

7. Supports remote control function,

8. Supports multiple screen selection, up to 10 corresponding resolutions for LCD screens, no need to write additional programs (see specifications below)

9. The PCB is made of FR4 material, with a thickness of 1.6mm and super strong mechanical strength,

10. Adopting our company's customized IC-HD3,

11. There are four positioning holes on this drive board, with a size of 3MM

12. No need to update the driver program, you can directly use the jump cap method to select multiple resolution screen parameter programs, support multi screen parameter installation jump cap selection, 1920 × 1200, 1920 × 1080, 1600 × 900, 1366 × 768, 1280 × 800, five common resolutions of LCD screens on the market,

14. Supports ten languages including English, Simplified Chinese, Traditional Chinese, Japanese, Korean, German, French, Italian, Portuguese, Russian, truly global and borderless use

15. The menu can rotate 360 degrees, suitable for various occasions

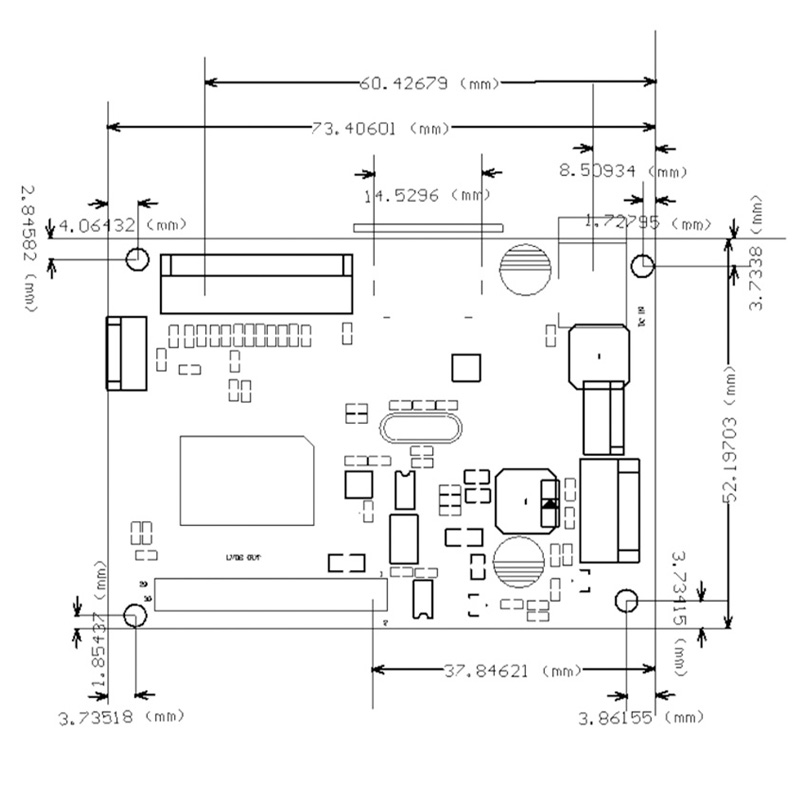

Structural Size of PCB800807 EDP LCD Controller Board

PCB800807 EDP LCD Controller Board
