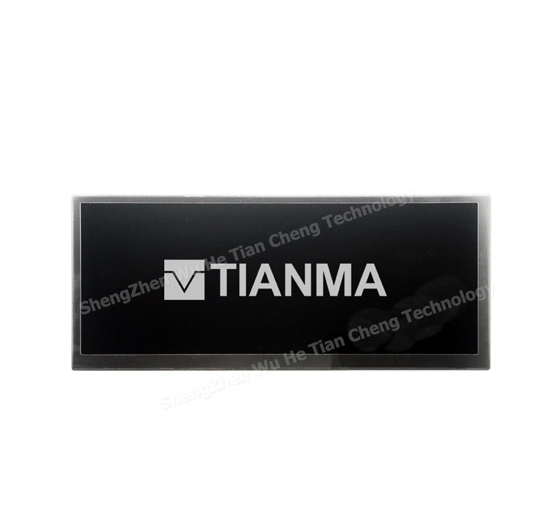

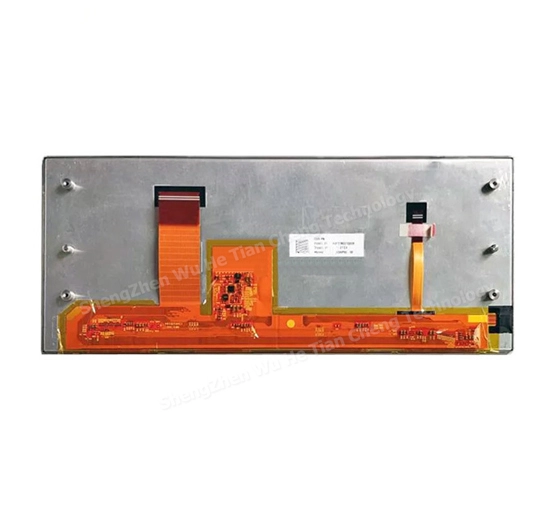

TM123XDHP90-00 12.3 Tianma LCD Panel

Name: TM123XDHP90-00 12.3 Tianma LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

TIANMA 12.3 inch tft lcd panel TM123XDHP90-00 with 1920x720 resolution, brightness 1000 cd/m². This lcd display is working temperature is -30 ~ +80 (°C) and its storage temperature is -40 ~ +95 (°C). Based on its white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of TM123XDHP90-00 12.3 Tianma LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
12.3	1920*720	TM123XDHP90-00	31113015.7	292.32*109.62	IPS	LVDS	1000	-30~80°C

General Specifications of TM123XDHP90-00 12.3 Tianma LCD Panel

Manufacturer	TIANMA
Model Name	TM123XDHP90-00
Screen Size	12.3 Inch
Pixel Number	1920(RGB)×720 , XGA
Active Area(mm)	292.32 x 109.62 (H×V)
Outline(mm）	311x 130 x 15.7 (H×V×D)
Pixel Pitch(mm)	0.240 x 0.240 (H×V)
Treatment	Anti-glare
Luminance	1000 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	80/80/80/80(CR≥10) Left / Right/UP /Down
Response	3/5 (Typ.)(Tr/Td) ms
Work Mode	TN , Normally white, Transmissive
Color Depth	262K/16.7M , 55% NTSC
Backlight	WLED, 50K hours, with LED Driver
Net Weight	483g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit), 50 pins
Voltage Supply	3.3V
Max. Ratings	Storage Temp.: -40 ~ +95 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	TIANMA Original Package
