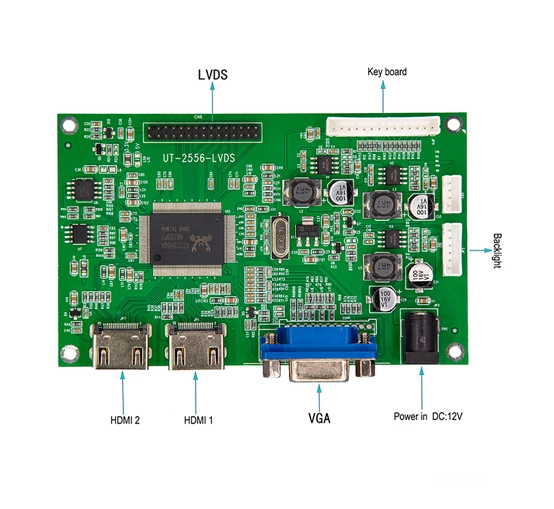

UT-2556 V.2 LVDS LCD Controller Board

Parameters of UT-2556 V.2 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
9	UT-2556 V.2	VGA / 2 x HDMI Signal input; Supports multiple resolutions, Supports 7~ 23 inch LCD screen	LVDS 30pin	NO	DC12V

General Specifications of UT-2556 V.2 LVDS LCD Controller Board

Model: UT-2556-LVDS (30pin)

1 HDMI, VGA signal input

2 Signal output supports LVDS 30pin Single/Double 6/8-bit interface LCD screen

3 Power input: DC+12V

4 Multi functional OSD Operations

5 With remote control function (optional)

Model	UT-2556-LVDS V.1
Signal	HDMI VGA signal
Output interface	30pin LVDS Connector(Single/Double 6/8-bit)
Supported resolution	19201080 19201200（60~75Hz）
Power input	DC +12V
CVBS	1.0Vp-p75Ω
Function	Multi functional OSD operation with remote control function (optional)
Operation Temperature	-10℃～+60℃
Working humidity	90%RH
Storage temperature	-20℃～+70℃
Save humidity	90%RH
Screen size	7 inch~23.8 inch
A screen that can be driven	7 inch~23.8 inch LVDS Connector(Single/Double 6/8-bit)

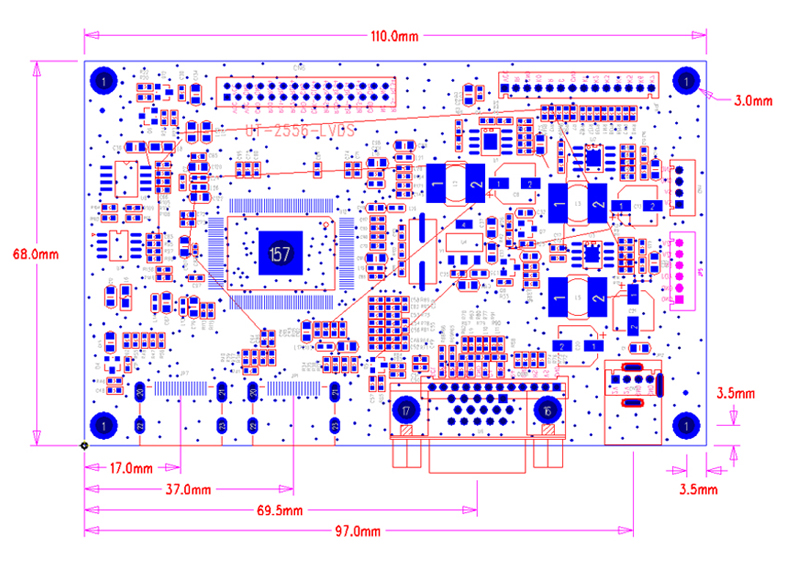

Structural Size of UT-2556 V.2 LVDS LCD Controller Board

UT-2556 V.2 LVDS LCD Controller Board
