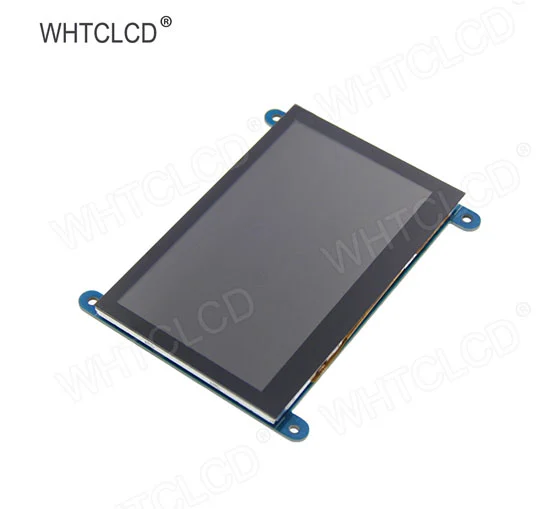

MPI4305 4.3 Inch Raspberry Pi LCD

4.3"standard display, 800x480 resolution, maximum HDMI resolution 1920X1080 is supported. Capacitive touch screen, support 5 point touch maximum. Built-in OSD menu adjustment function (adjustable Contrast/ Brightness/Saturation, etc.). It is compatible with mainstream mini PC such as Raspberry Pi, BB Black, Banana Pi. It can also be used as a general-purpose HDMI display, connecting computers, TV boxes, Microsoft Xbox360, SONY PS4, Nintendo Switch and so on. Used as a Raspberry Pi display that supports Raspbian, Ubuntu, Kodi, Win10 IOT, single-touch, free drive. Work as a PC monitor, support Win7, Win8, Win10 system 5 point touch (XP and older version system: single-point touch), free drive. Support HDMI audio output, Backlight brightness can be adjusted. CE, RoHS certification.

Products

Parameters of 4.3 Inch Raspberry Pi LCD

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
4.3	800*480	MPI4305	TN	HDMI	10685.315	95.04*53.86	Earphone	CTP	Micro USB	-20~60°C

SKU	MPI4305
Screen Size	4.3inch
LCD Type	TN TFT
Module Interface	HDMI
Resolution	800*480 (Pixel)
Active Area	95.04*53.86 (mm)
Touch Screen Controller	capacitive touch
LCD Driver IC	-
Backlight	LED
power consumption	0.16A*5V
Working temperature（℃）	-20~60
Module PCB Size	106*85.3 (mm)
Package Size	14313451 (mm)
Rough Weight(Package containing) (g)	219 (g)

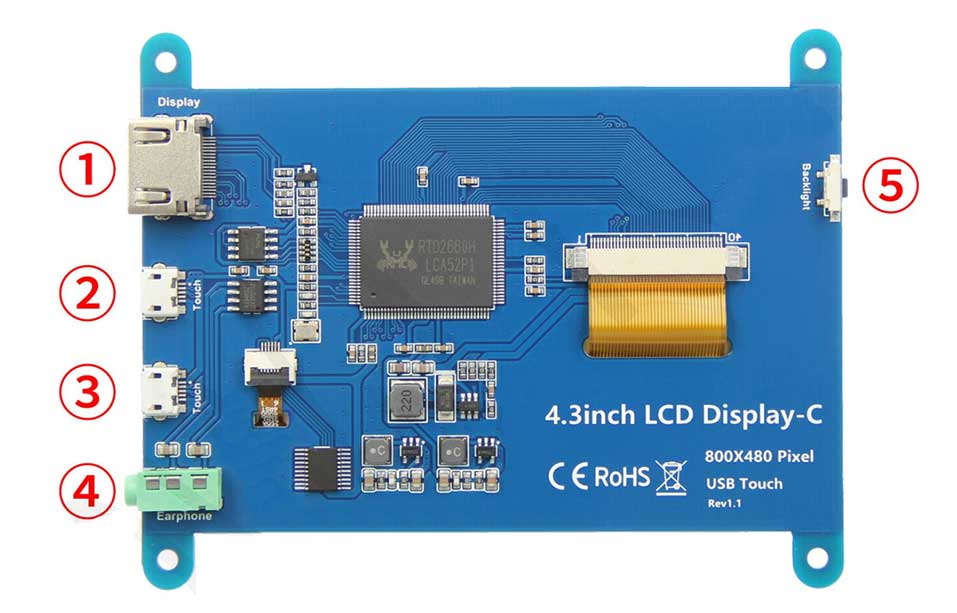

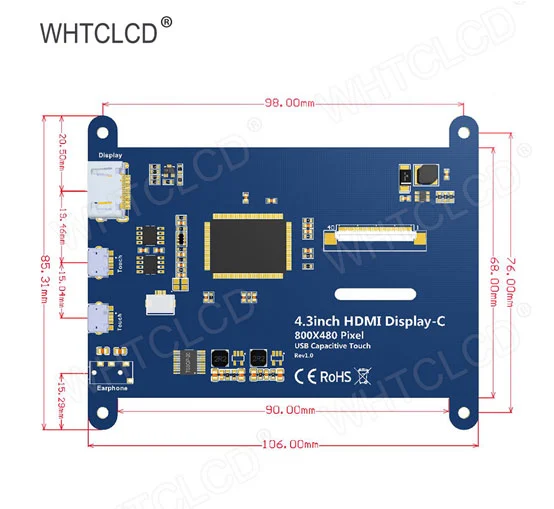

Hardware Description of 4.3 Inch Raspberry Pi LCD

stm32 nucleo board price

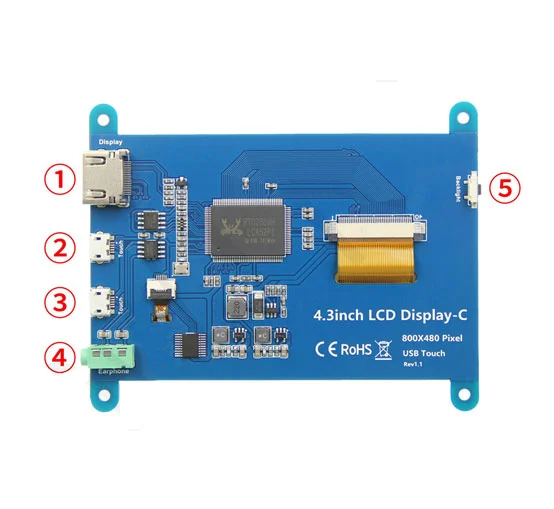

Hardware capabilities

① Display:HDMI interface(For connecting motherboard and LCD monitor)

② -③ Touch: USB connector(For power supply and touch output, the functions of the both are the same, can just use one of them)

④ Earphone: 3.5mm Audio output

⑤ Backlight: backlight brightness adjustment button, short press backlight changesby10%, long press 3 seconds to close backlight

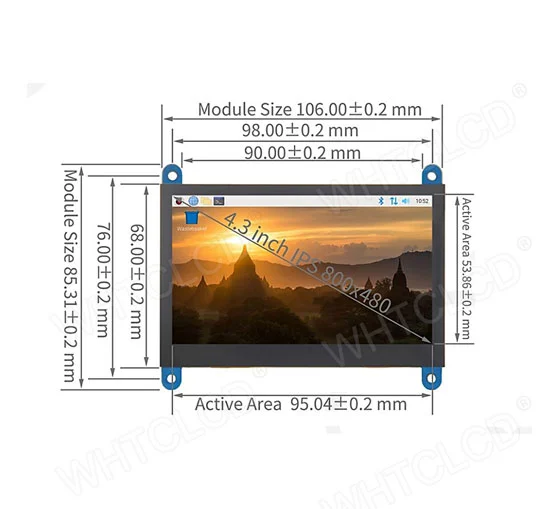

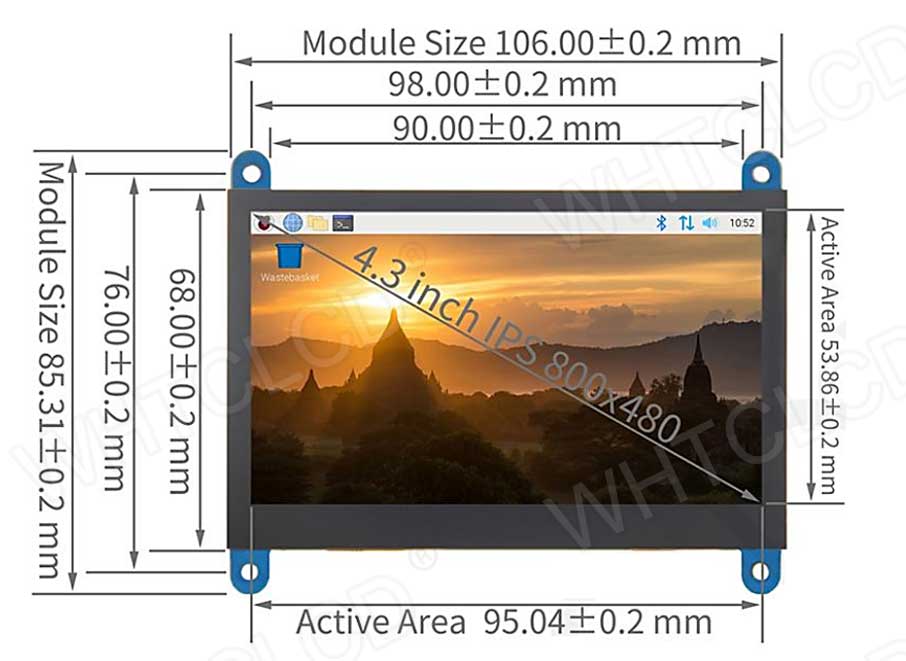

Product Size of 4.3 Inch Raspberry Pi LCD

stm32 nucleo development board
