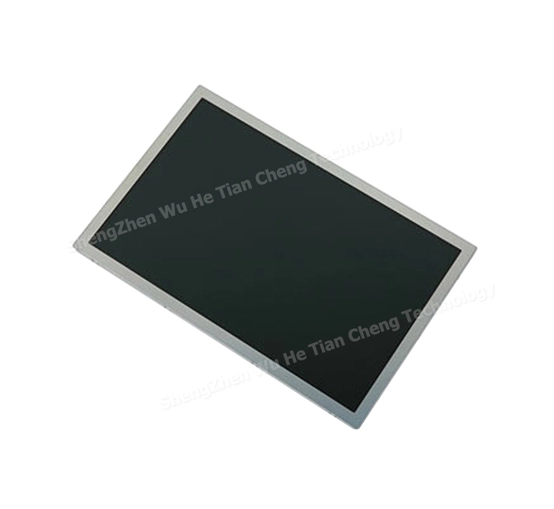

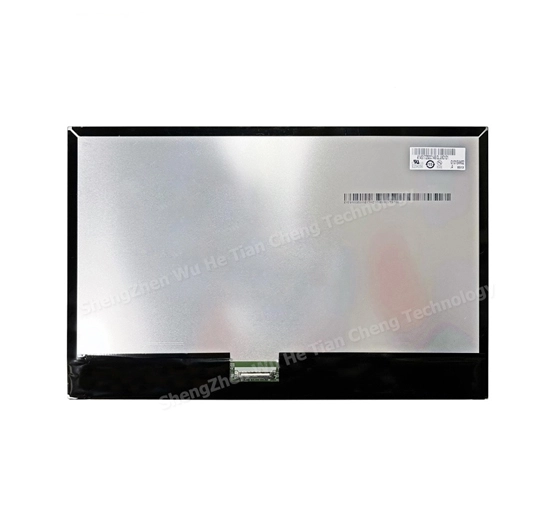

G101EAN02.4 10.1 AUO LCD Panel

Name: G101EAN02.4 10.1 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 10.1 inch tft lcd ips panel G101EAN02.4 with 1280(RGB)x800 WXGA resolution, brightness 400 cd/m². This lcd display's working temperature is 0 ~ +60 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G101EAN02.4 10.1 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.1	1280*800	G101EAN02.4	227.72147.82.97	216.96*135.6	IPS	LVDS	400	-0~60°C

General Specifications of G101EAN02.4 10.1 AUO LCD Panel

Manufacturer	AUO
Model Name	G101EAN02.4
Screen Size	10.1 inch
Pixel Number	1280(RGB)×800 , WXGA
Active Area(mm)	216.96 × 135.6 (H×V)
Outline(mm）	227.72(H) x 147.8(V) x 2.97(T)
Pixel Pitch(mm)	0.1695 x 0.1695
Treatment	HC
Luminance	400 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10)
Viewing Angle	Left/Right/UP/Down
Response	29(Typ.)(Tr+Td) ms
Work Mode	AHVA , Normally black , Transmissive
Color Depth	16.7M , 45% NTSC
Backlight	WLED , 20K hours , with LED Driver
Net Weight	200g
Touchscreen	without
Signal Type/interface Type	eDP (1 Lane) , 30 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: --20 ~ +60 (°C)
Max. Ratings	Operating Temp.: 0 ~ +60 (°C)
Package	AUO original package;
	40 pcs/ctn;
	size : 484(L) x 328(W) x 257(H) mm
