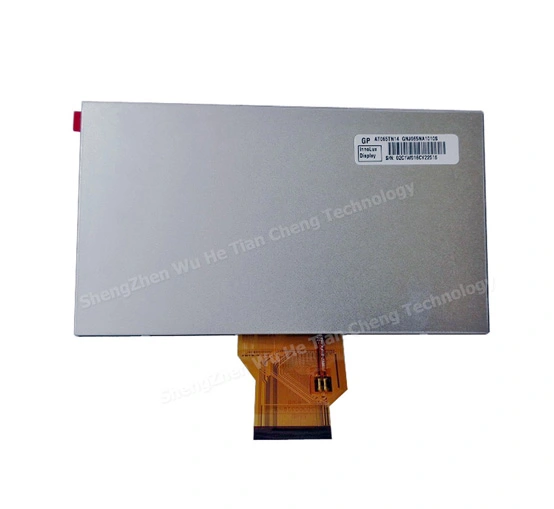

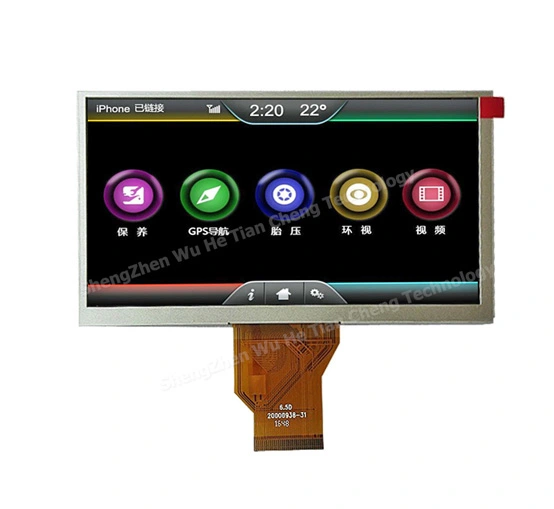

AT065TN14 6.5 Inch INNOLUX LCD Panel

Name: AT065TN14 6.5 Inch INNOLUX LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

Innolux 6.5 inch tft lcd panel AT065TN14 with 800(RGB)x480 WVGA resolution, brightness 400 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Original A Grade 6.5 inch 800x480 WVGA Innolux TFT LCD Panel RGB LCD Module AT065TN14 With 400nits, FPC 50pin, Touchscreen And Controller Board.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of AT065TN14 6.5 Inch INNOLUX LCD Panel

Size (inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
6.5	800*480	AT065TN14	155.289.45.7	143.4*76.704	TN	RGB	400	-30~85°C

General Specifications of AT065TN14 6.5 Inch INNOLUX LCD Panel

Manufacturer	Innolux
Model Name	AT065TN14
Screen Size	6.5 inch
Pixel Number	800(RGB)×480 , WVGA
Active Area(mm)	143.400 x 76.704 (H×V)
Outline(mm）	155.2 x 89.4 x 5.5 (H×V×D)
Dot pitch(mm)	0.05975 x 0.1598 (W×H)
Treatment	Anti-Glare
Luminance	400 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	70/70/50/70 (CR≥10) Left / Right/UP /Down
Response	10/15 (Typ.)(Tr/Td) ms
Work Mode	TN, Normally white, Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED, 20K hours, without Driver
Net Weight	127g
Touchscreen	without
Signal Type/interface Type	Parallel RGB (1 ch, 6/8-bit) , FPC , 50 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp. : -30 ~ +85 (°C)
Max. Ratings	Operating Temp. : -30 ~ +85 (°C)
Package	Innolux original package;
