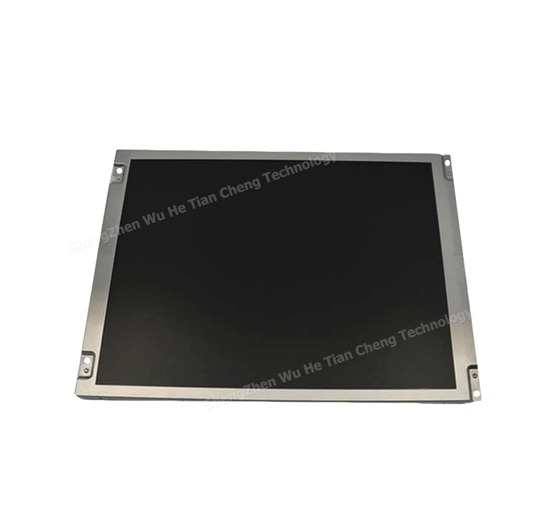

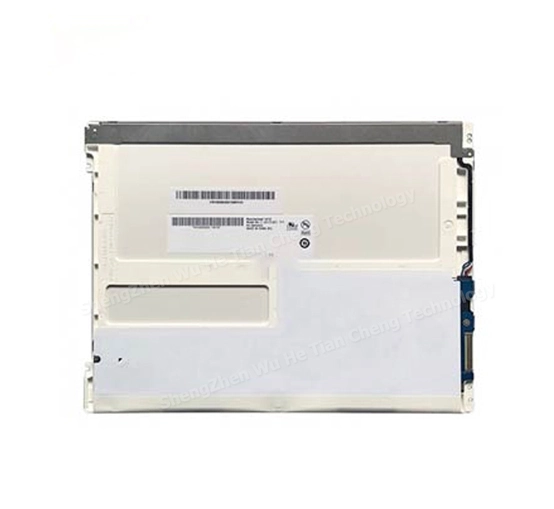

G104SN03V5 10.4 AUO LCD Panel

Name: G104SN03V5 10.4 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 10.4 inch tft lcd panel G104SN03 V5 with 800(RGB)x600 SVGA resolution, brightness 230 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G104SN03V5 10.4 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
10.4	800*600	G104SN03V5	236.0176.95.7	211.2*158.4	IPS	LVDS	230	-30~85°C

General Specifications of G104SN03V5 10.4 AUO LCD Panel

Manufacturer	AUO
Model Name	G104SN03 V5
Screen Size	10.4 inch
Pixel Number	800(RGB)×600 , SVGA
Active Area(mm)	211.2 × 158.4 (H×V)
Outline(mm）	236.0 x 176.9 x 5.7 (H×V×D)
Pixel Pitch(mm)	0.264 x 0.264 (H×V)
Treatment	Anti-glare, Hardness 3H
Luminance	230 cd/m² (Typ.)
Contrast Ratio	500 : 1 (Typ.) (TM)
Viewing Angle	80/80/60/70 (CR≥10) Left / Right/UP /Down
Response time	10/5 (Typ.)(Tr/Td) ms
Display Mode	TN , Normally white , Transmissive
Color Depth	262K/16.7M , 50% NTSC
Backlight	WLED , 25K hours , with LED Driver
Net Weight	280g
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 20 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -20 ~ +70 (°C)
Max. Ratings	Operating Temp.: -20 ~ +70 (°C)
Package	AUO Original package;
	30 pcs/ctn;
	weight : 13.0Kgs;
	size : 448(L) x 402(W) x 350(H)mm
