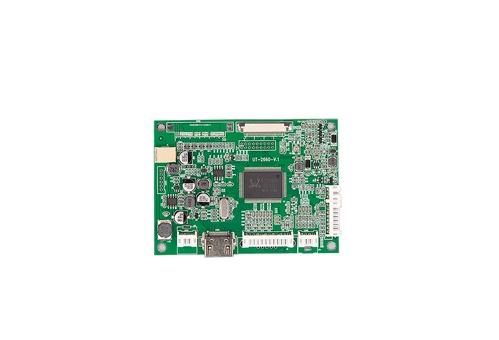

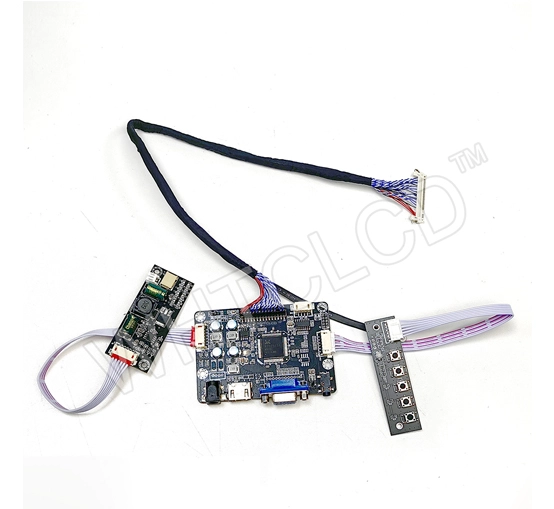

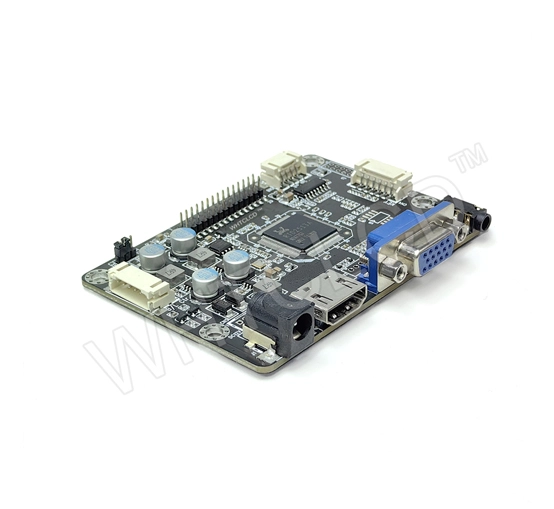

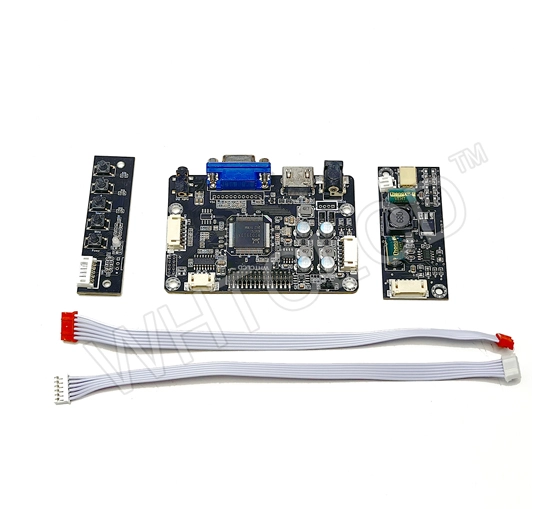

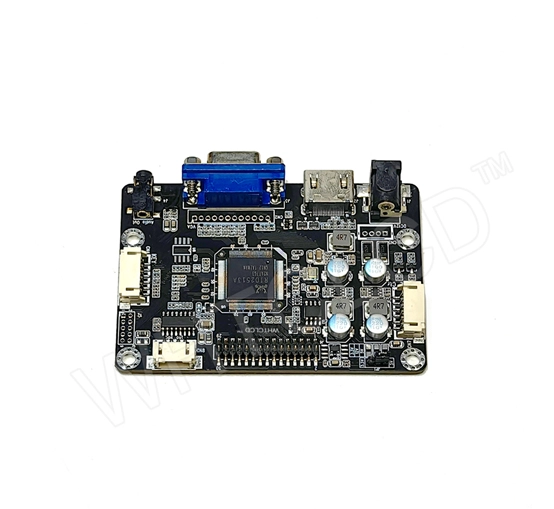

WH-RTD3513-V7 LVDS LCD Controller Board

Parameters of WH-RTD3513-V7 LVDS LCD Controller Board

No.	Model	Parameter	interface	Touch	power supply
14	WH-RTD3513-V7	VGA / HDMI Signal input; Supports multiple resolutions, sound output, Supports 7~ 32 inch LCD screen	LVDS 30pin	NO	DC12V

General Specifications of WH-RTD3513-V7 LVDS LCD Controller Board

Model: WH-RTD2513-V7 (30pin)

Application area

Industrial control, instrumentation, medical equipment, security monitoring, vehicle displays,

Bank bill acceptance instruments, POS machines, and other various occasions.

Supports single 6/single 8/dual 6/dual 8 LVDS interface screens

Characteristic

1. Supports HDMI (Version 1.4),

VGA (640*480,800*480,800*600,1024*600,1024*768，

Common resolutions such as 1280 * 800, 1366 * 7681920 * 1080,

2. Input voltage: DC+12V (9V-15V)

3. Multi functional OSD, supporting adjustment of brightness, contrast, backlight and other parameters

4. Support remote control function

5. HDMI audio output

6. Power on/off indicator light status

MAIN CHIPSET	RTD2513
OSD LANGUAGE	Simplified Chinese, Traditional Chinese, English, French, German, Italian, Spanish, Portuguese, Korean (optional)
PANEL	Panel Type	TFT LCD
	Interface	Dual LVDS
	Max Resolution	1920*1080
VIDEO INPUT	PC-RGB(VGA)	Format	Up to 1920×1080@60Hz
	HDMI	480i, 480p, 720p, 1080i, 1080p
AUDIO INPUT	PC Audio	PC Audio Input	0.2 ~ 2.0 VRMS
AUDIO OUTPUT	Earphone	Earphone output	130 ~ 150mVRMS
	Frequency response	150Hz-15KHz @±3dB(1KHz -12dB reference signal)
	Max Output power	2×1W(8Ω) THD+N<10%@1KHz (Power Supply:5V,Audio Input: 0.5VRMS)
POWER TO PANEL	3.3V/1100mA ; 5V/1000mA
Management	Standby Power Consumption < 0.2W(Board Only)
Button Types	Ground Key Interface
Note: Licenses involved in specifications above are supposed to be obtained by customers themselves.

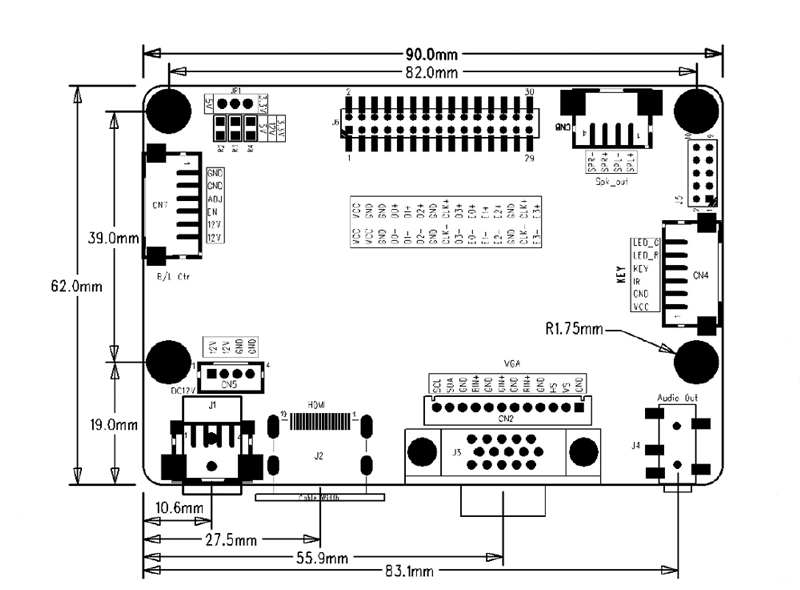

Structural Size of WH-RTD3513-V7 LVDS LCD Controller Board

WH-RTD3513-V7 LVDS LCD Controller Board
