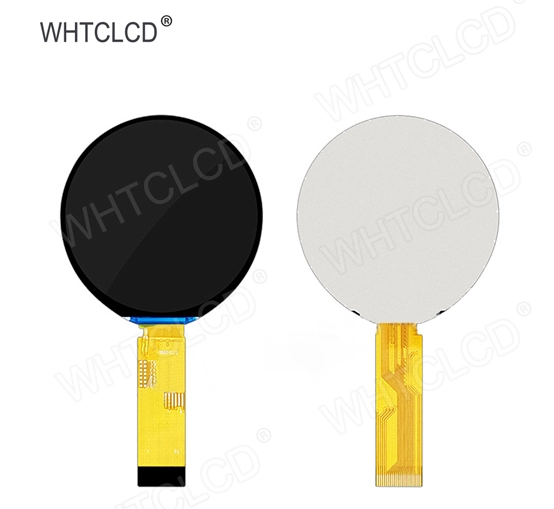

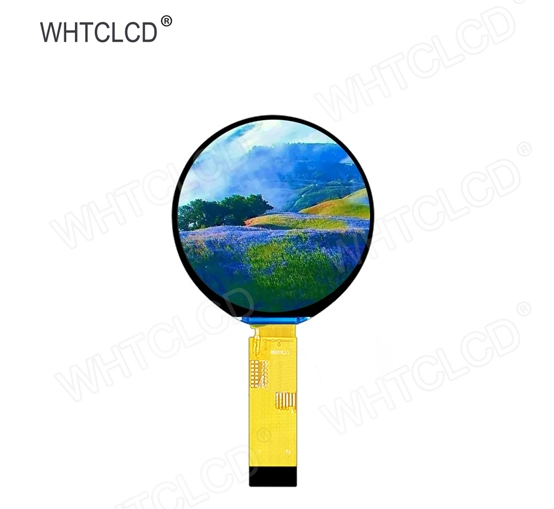

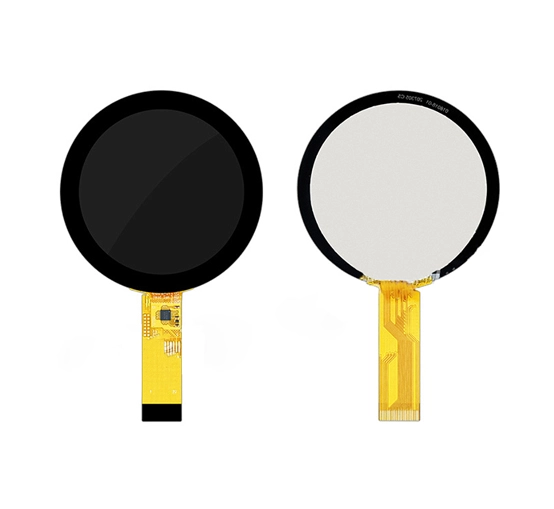

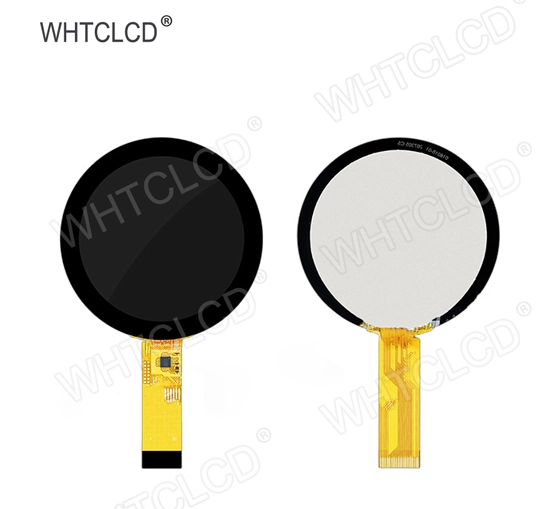

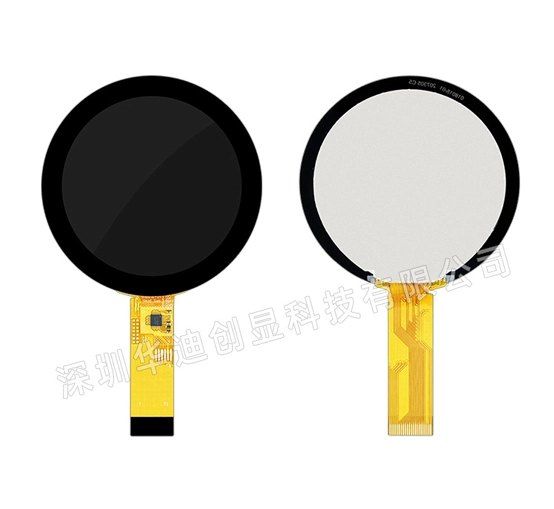

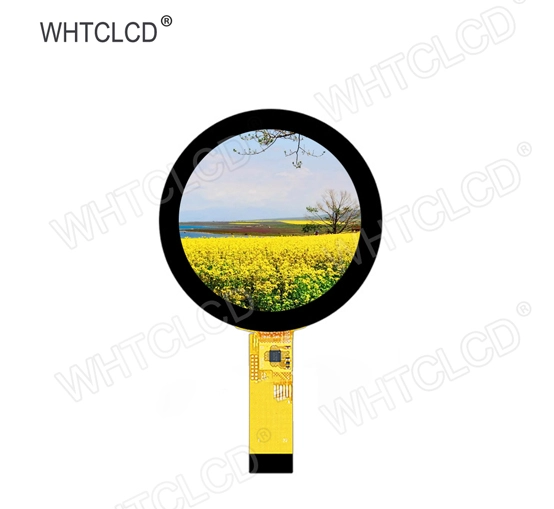

W018R40S1RI-X02B0 1.8 Inch Circular TFT LCD

Parameters of 1.8 Inch Circular TFT LCD

Size (inch)	Resolution	Model	LCM Dimension (mm)	Active Area (mm)	View	Interface	Brightness (nits)	OP(℃)

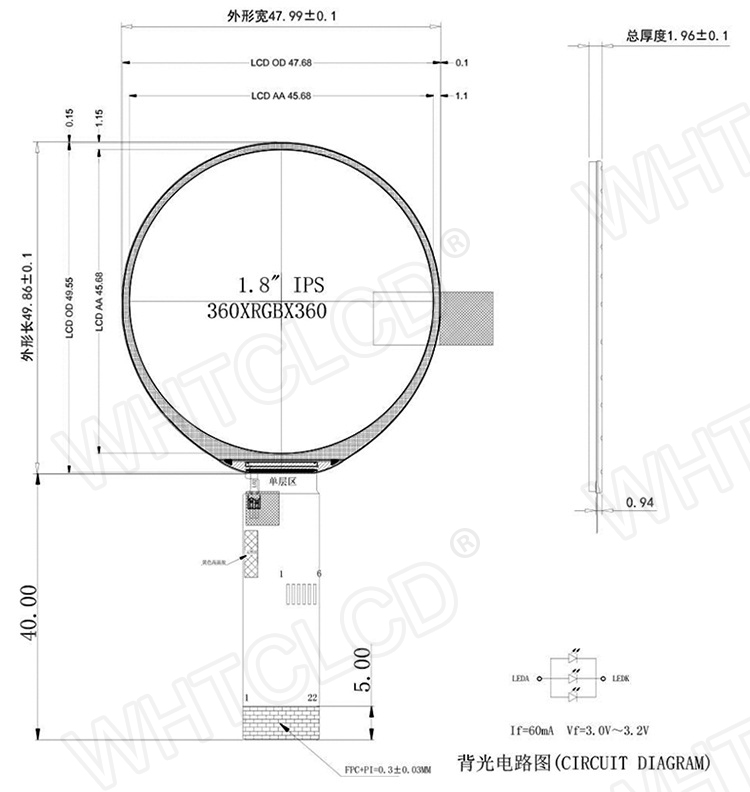

1.8	360*360	W018R40S1RI-X02B0 (Circular)	48.0849.951.96	45.86*45.86	IPS	RGB	300-500	-20~70°C

Description of 1.8 Inch Circular TFT LCD

W018R40S1RI-X02B0

Pin No.	Symbol	Description
1	A	Back-light Anode
2	K	Back-light Cathode
3	GND	Power Ground
4	VCC	Power supply for interface logic circuits(2.8V-3.2V)
5	RST	Reset input pin
6-13	D7-D0	8-bit parallel bi-directional data bus for MCU system Data Bit
14	CS	Chip select input pin
15	RD	Read enable in MCU parallel interface
16	WR	Write enable clock input pin
17	RS	Register select signal pin.L:Command H:Data
18	TP-SCL	TP-SCL

lcd tft 1.8

1.8 tft lcd
