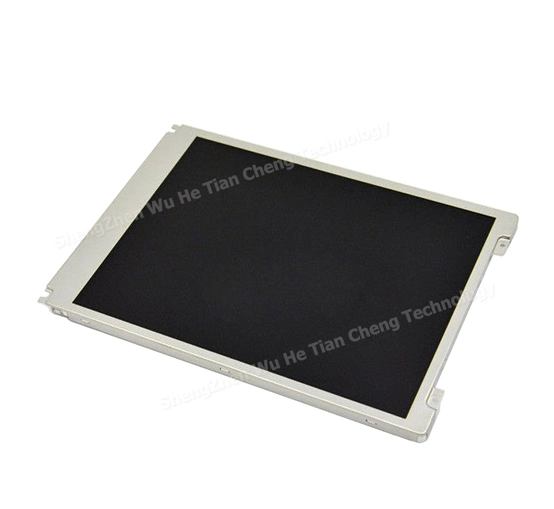

G084XAN01.0 8.4 AUO LCD Panel

Name: G084XAN01.0 8.4 AUO LCD Panel
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

AUO 8.4 inch tft lcd ips panel G084XAN01.0 with 1024(RGB)x768 XGA resolution, brightness 700 cd/m²(High brightness). This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is - 30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial and outdoor sunlight readable use.

Compatible resistive touch and capacitive touch options are available. Additionally, we provide a matched LCD controller board.

Products

Parameters of G084XAN01.0 8.4 AUO LCD Panel

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Luminance(cd/m2)	OP(℃)
8.4	1024*768	G084XAN01.0	199.5149.09.05	170.496*127.872	IPS	LVDS	700	-30~85°C

General Specifications of G084XAN01.0 8.4 AUO LCD Panel

Manufacturer	AUO
Model Name	G084XAN01.0
Screen Size	8.4 inch
Pixel Number	1024(RGB)×768 , XGA
Active Area(mm)	170.496 × 127.872 (H×V)
Outline(mm）	199.5 × 149.0 × 9.05 (H×V×D)
Pixel Pitch(mm)	0.166 × 0.166 (H×V)
Treatment	AG
Luminance	700 cd/m² (Typ.)
Contrast Ratio	800 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (CR≥10) Left / Right/UP /Down
Response time	15/10 (Typ.)(Tr/Td) ms
Display Mode	AHVA , Normally black , Transmissive
Color Depth	262K/16.7M , 99% sRGB
Backlight	WLED , 70K hours , with LED Driver
Net Weight	282/310g (Typ./Max.)
Touchscreen	without
Signal Type/interface Type	LVDS (1 ch, 6/8-bit) , 40 pins
Voltage Supply	+3.3 V
Max. Ratings	Storage Temp.: -30 ~ +80 (°C)
Max. Ratings	Operating Temp.: -30 ~ +80 (°C)
Package	AUO Original package;
	22 pcs/ctn;
	size : 528(L) x 348(W) x 265(H) mm
