Parameters of 7 Raspberry Pi HDMI LCD Display(Earphone-CTP)

Raspberry Pi HDMI LCD Display
Remark: All Models Support Capacitive or Resistive Touch Panel.
Size (inch)	Resolution	Model	View	Interface	Product Size (mm)	Active Area (mm)	Audio	Touch panel	Power	OP(℃)
7	1024*600	MPI7008	IPS	HDMI	18012523	154.2144*85.92	Earphone	CTP	MicroUSB	-20~60°C

SKU	MPI7008
Screen Size	7 inch
LCD Type	IPS
Module Interface	HDMI
Resolution	1024*600 (Pixel)
Active Area	154.2144*85.92 (mm)
Touch Screen Controller	5 point capacitive touch
LCD Driver IC	-
Backlight	LED
power consumption	0.74A*5V
Working temperature（℃）	-20~60
Module Size	180*125 (mm)
Package Size	21115053 (mm)
Rough Weight(Package containing) (g)	510 (g)

Features of 7 Raspberry Pi HDMI LCD Display(Earphone-CTP)

IPS full Angle display

1. The viewing Angle is large

2. true color

3. Dynamic picture quality is excellent

4. Energy saving and environmental protection

1024X600 hd vision

1. Resolution for hd 1024X600 dot matrix

2. It is more delicate than 800X480 ordinary screen

Tempered glass touch panel

1. Hardness up to 6H, more durable and more scratch resistant

Built-in sound system

1. Built - in power amplifier circuit

2. Built-in stereo dual speaker system, in the display while dancing with the music

Front key dimming + breathing lamp

1. The front panel has a set of hidden touch buttons to support one-button adjustment of backlight brightness

2. The front panel is equipped with a breathing lamp to indicate the working status

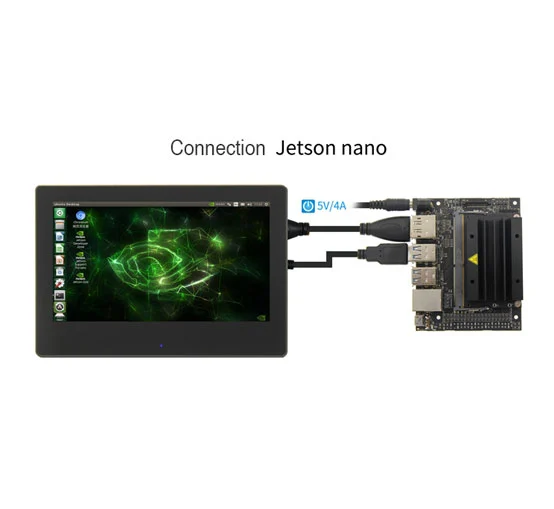

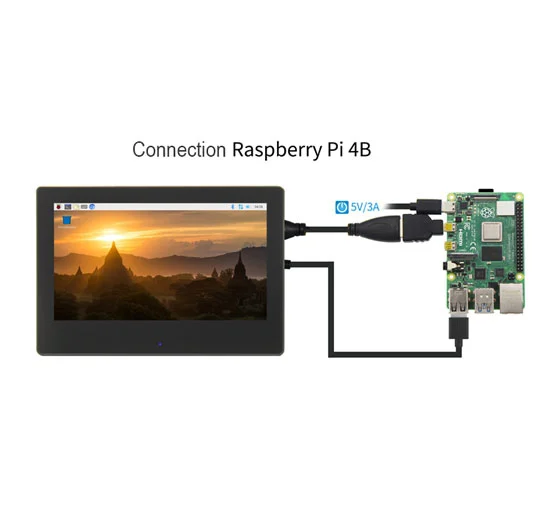

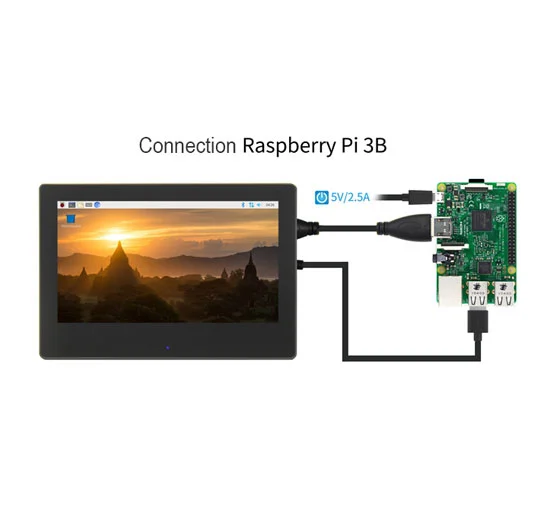

Used as a mini PC monitor

1. Support raspberry pie, Banana Pi, BB Black and other mainstream development board

2. Support Raspbian, Kali Linux, ubuntu and other mainstream systems, single touch plug and play without driver.

Used as a computer display

1. Support win10/win8/win7 system, support five-point touch plug and play driver

Hardware Description of 7 Raspberry Pi HDMI LCD Display(Earphone-CTP)

stm32f103 development board

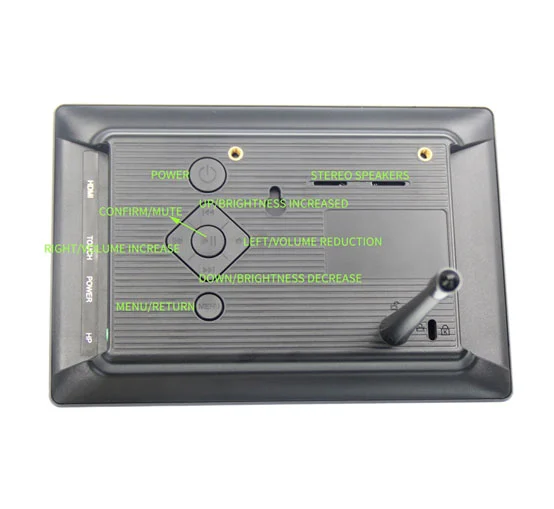

Hardware capabilities

KEY	DESCRIPTION
BREATHING LIGHT	Short press once, the backlight brightness increases by 10%, after reaching 100%, it will start to cycle from 10%; Long press 3 seconds, backlight off； Short press again, Restore the brightness before.
POWER	When there is HDMI signal, press the button, the system starts up, and the breathing lamp turns blue and slowly flashes. Press again, the system shuts down, the breathing light turns red and slowly flashes.
MENU/RETURN	Open/Close the System Settings Menu; Return
CONFIRM/MUTE	Shortcut keys, Mute; In the System Settings Menu, Confirm
UP/ BRIGHTNESS INCREASED	Shortcut key, backlight brightness increase; In the System Settings Menu, Up
DOWN/ BRIGHTNESS DECREASE	Shortcut key, backlight brightness reduction; In the System Settings Menu, Down
LEFT/ VOLUME REDUCTION	Shortcut key, Volume reduction; In the System Settings Menu, Left
RIGHT/ VOLUME INCREASE	Shortcut key, Volume increase; In the System Settings Menu, Right

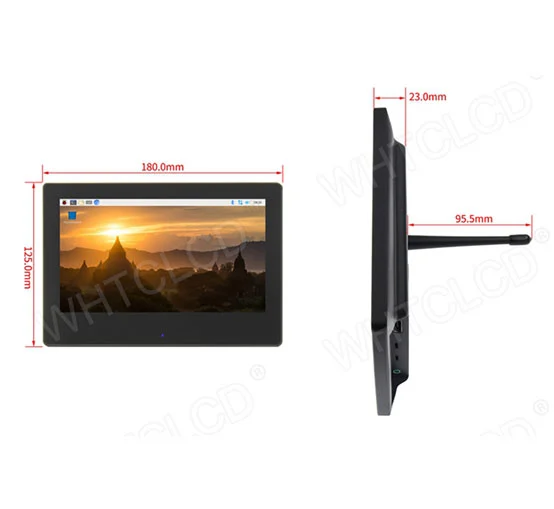

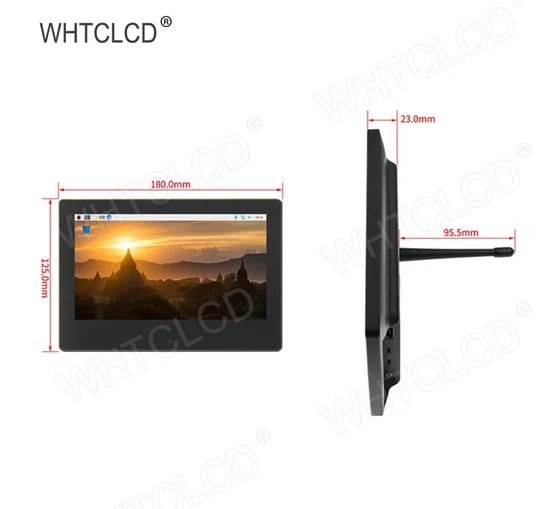

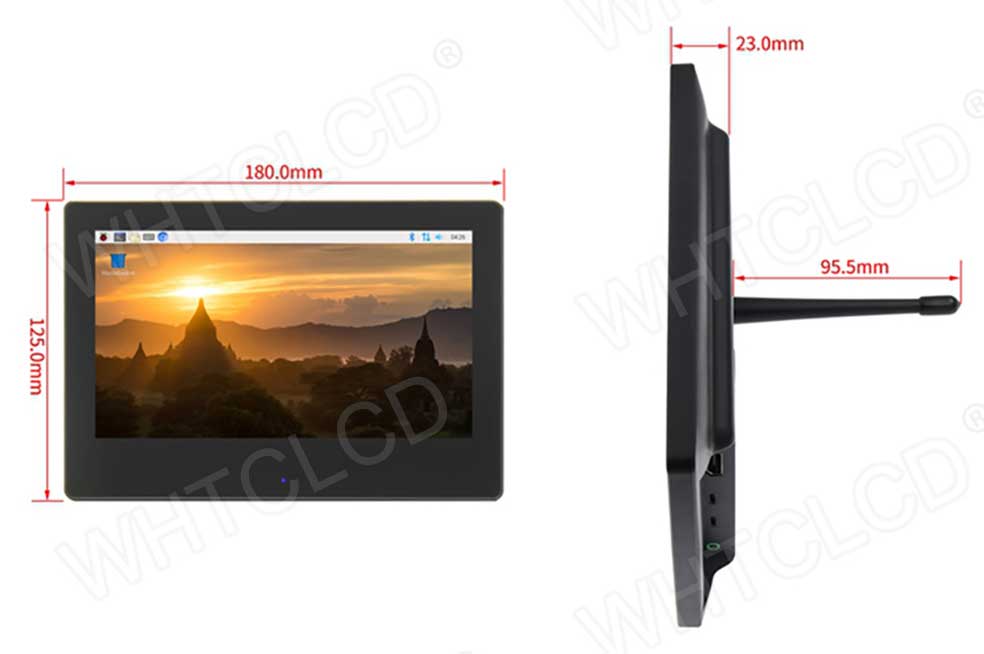

Product Size of 7 Raspberry Pi HDMI LCD Display(Earphone-CTP)

stm32f103 evaluation board
