W035P60H1RI 3.5 Inch IPS TFT LCD

Name: W035P60H1RI 3.5 Inch IPS TFT LCD
Brand: Shenzhen Wu He Tian Cheng Technology Co., Ltd.

3.5 Inch IPS TFT LCD is a transmissive type color active matrix liquid crystal display this product composedof a TFT LCD panel, a driver IC, a FPC, and a LED-backlight unit. The active display area is 70.08*52.56 and the native resolution is 320*240, Applications: digital watches，wire tester，sphygmomanometer, ECG machine，Handheld devices.

Products

Parameters of 3.5 Inch IPS TFT LCD

Size(inch)	Resolution	Model	LCM Dimension(mm)	Active Area(mm)	View	Interface	Brightness(nits)	OP(℃)
3.5	640*480	W035P60H1RI	76.8463.843.27	70.08*52.56	IPS	RGB	400	-30~80°C

General Specifications of 3.5 Inch IPS TFT LCD

W035P60H1RI

Feature	Specifications	Unit
Size	3.5	inch
Technology Type	a-si TFT
Resolution	640(RGB)x480
Pixel pitch	0.1095(H)*0.1095(V)	mm
Pixel arrangement	RGB-stripe
Color Depth	65K/262K/16.7M
Display Mode	TFT,Transmissive,Normally black
Driver IC	NV3052
Surface Treatment	`
Viewing Direction	ALL
Gray Viewing Direction	`
LCM (W x H x D) (mm)	74.38(W)×62.35(H)×2.4(D) mm	mm
Active Area(mm)	70.08(W)×52.56(H) mm	mm
Touch Panel	Support CTP/RTP
Brightness	300-1000	nits
Weight (g)	16	g
Interface	RGB FPC 45pin
Operation Temperature	-20~70	℃
Storage Temperature	-30~85	℃
Module lifetime(Hours)	50,000-100,000	℃

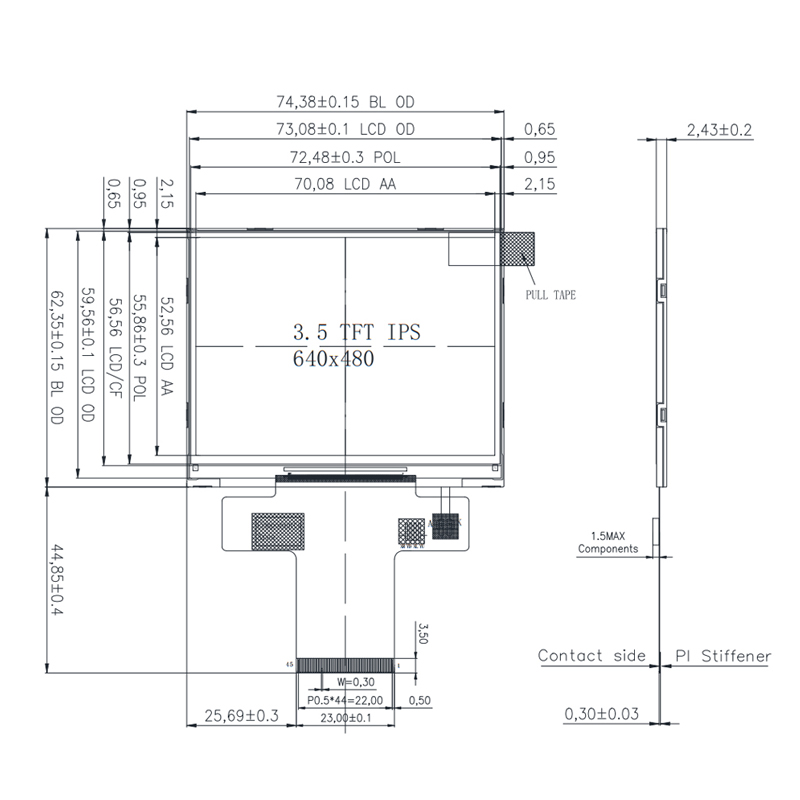

Structural Size of 3.5 Inch IPS TFT LCD

W035P60H1RI

3.5 Inch IPS TFT LCD
